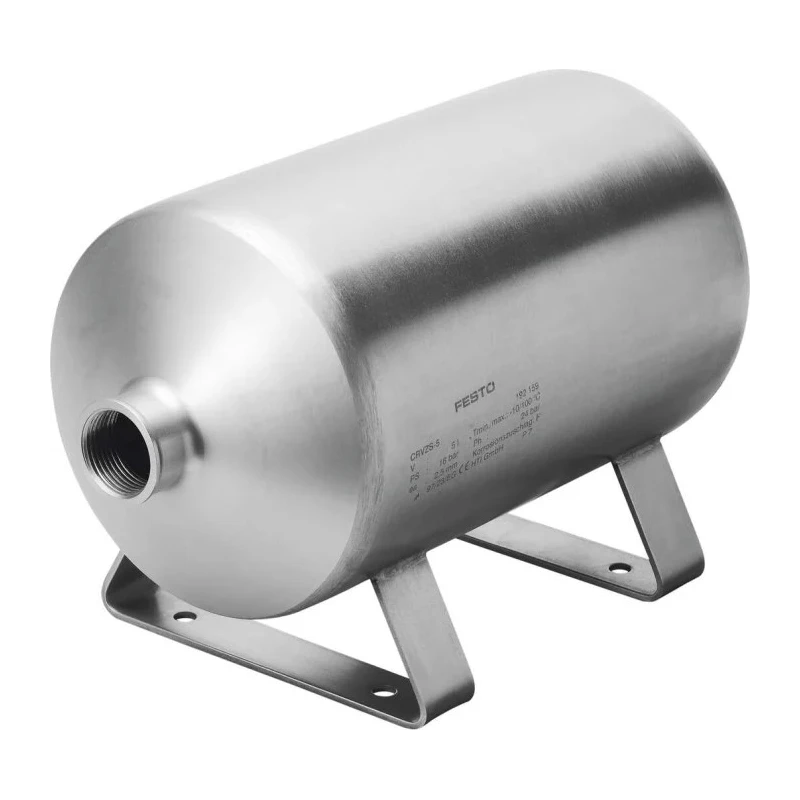

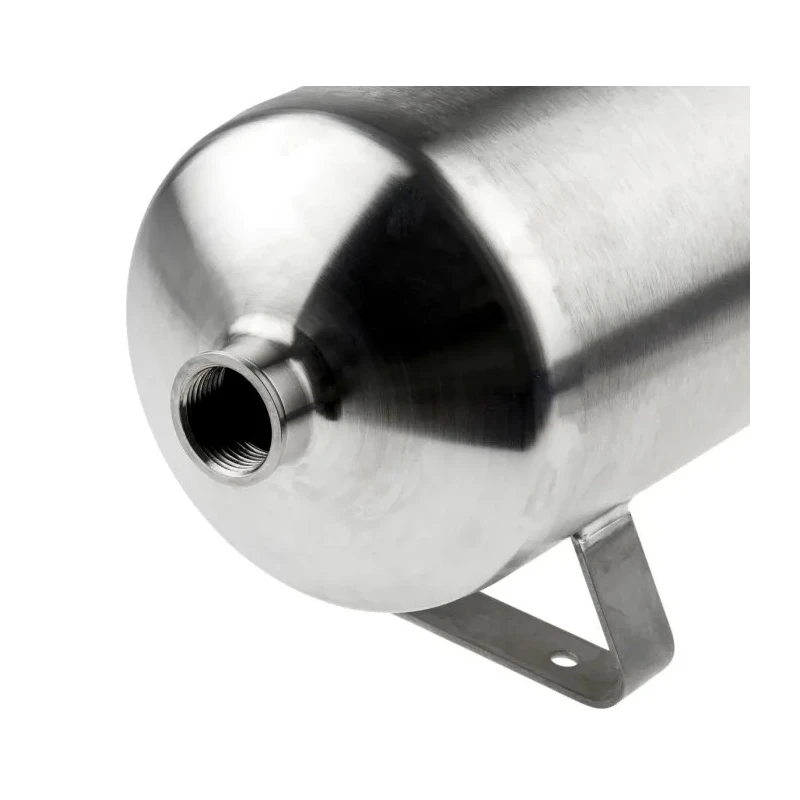

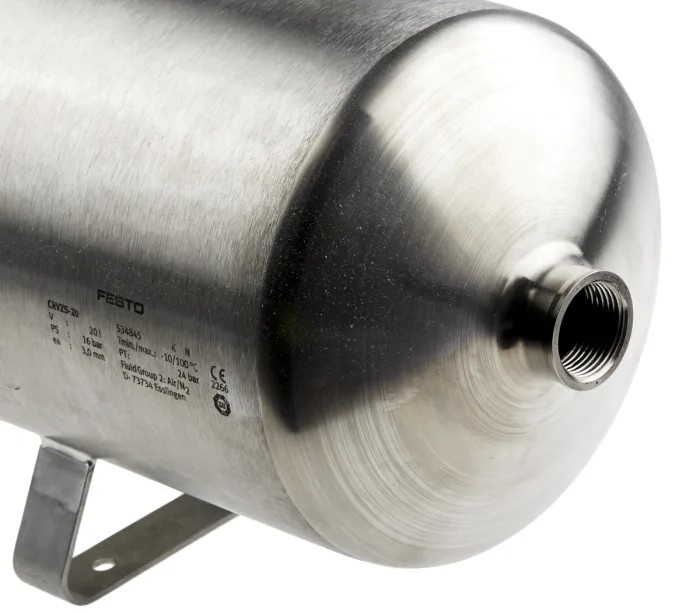

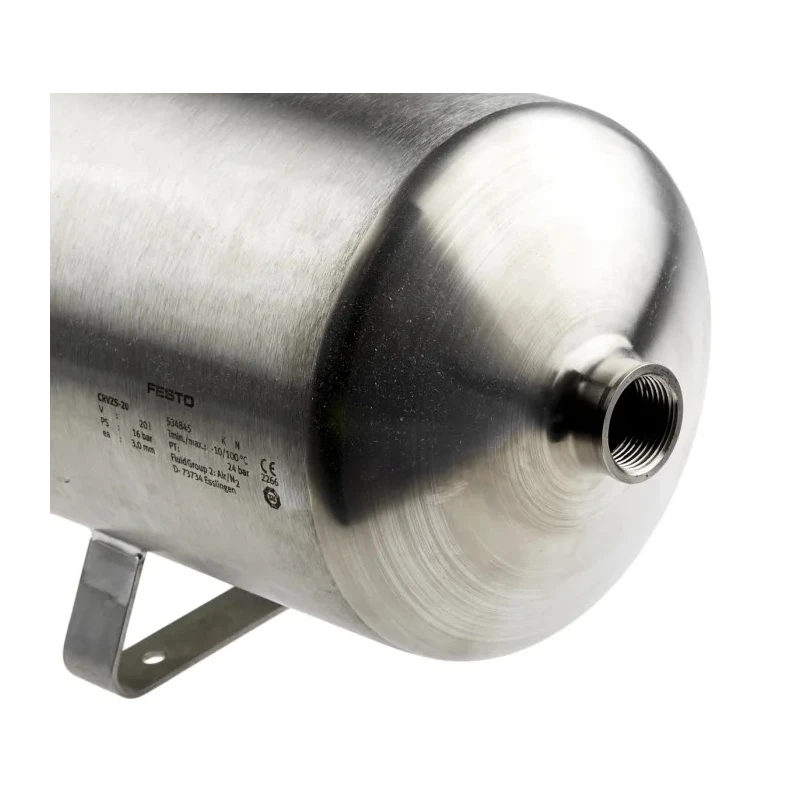

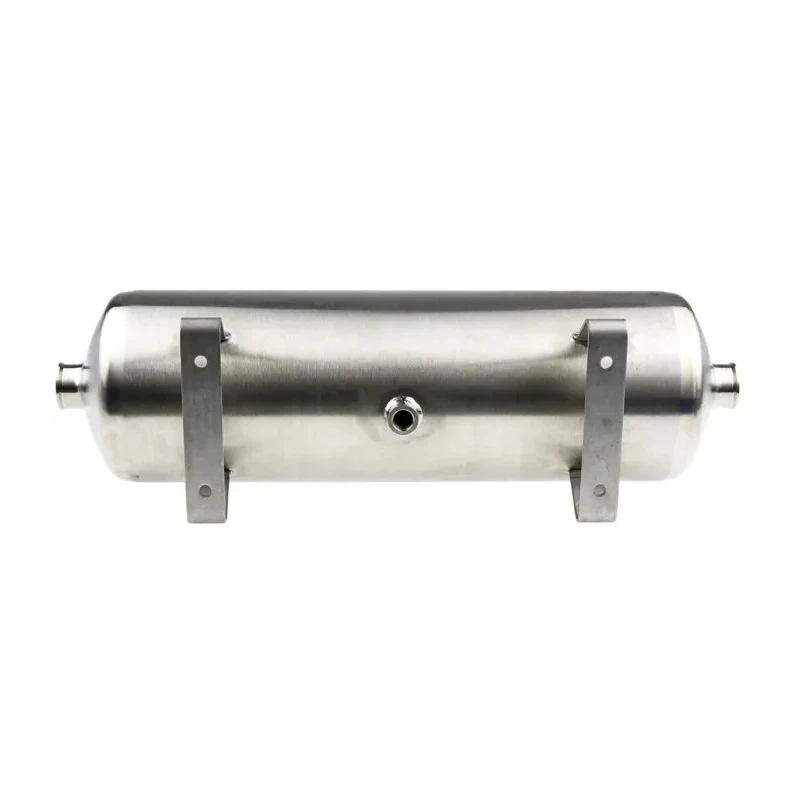

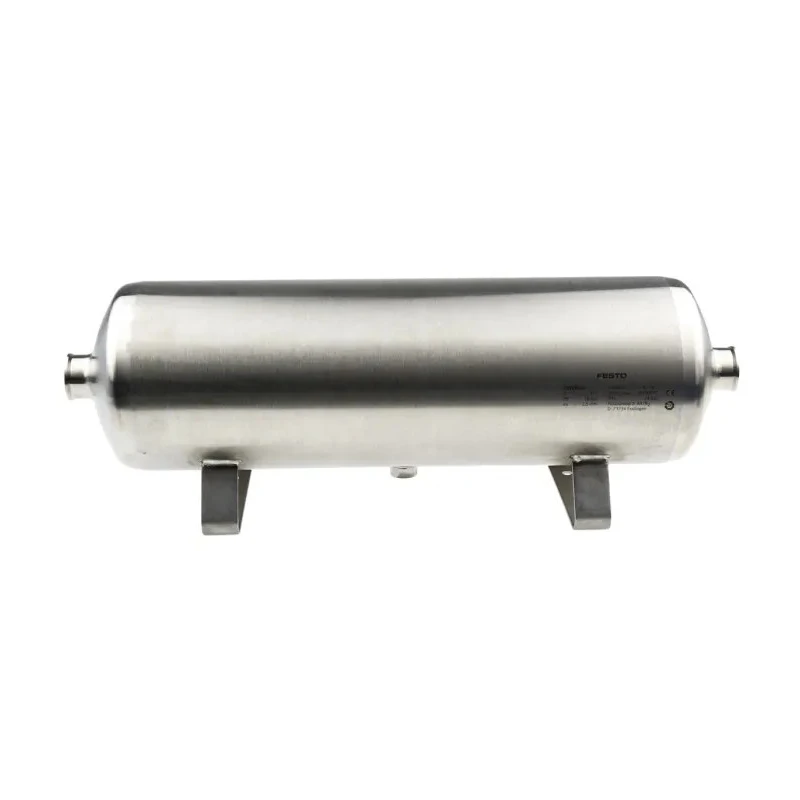

Festo Air Reservoir 20L Volume, G1 Port Size, CRVZS Series, 16 bar Maximum Pressure, High Alloy Stainless Steel CRVZS-20
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Material | High Alloy Stainless Steel |
| Height | 136mm |
| Length | 740mm |
| Model | CRVZS-20 |
| Gross Weight | 10.2g |
| Volume | 20L |
| Series | CRVZS |
| Maximum Operating Temperature | 100°C |
| Maximum Pressure | 16bar |
| Port Size | G1 |
| Minimum Operating Temperature | -10°C |
| Overall Diameter | 194mm |
| Connection Thread Standard | ISO 1179-1 and ISO 228-1 |
| Reservoir Bore Size | 40mm |
Key Features
- Constructed from high alloy stainless steel for durability and corrosion resistance.
- Maximum operating pressure of 16 bar ensures robust performance under high pressure.
- Suitable for compressed air and nitrogen storage in demanding industrial environments.
- Includes a condensate drain to remove moisture and maintain pneumatic system health.
- Operates reliably in temperatures ranging from -10°C to 100°C.
- Complies with ISO 1179-1 and ISO 228-1 connection thread standards.
- Compact design with dimensions 740mm length and 194mm diameter for space-efficient installation.
- Ideal for applications in pharmaceutical manufacturing, automotive industry, and lifting equipment.
Product Description
Festo CRVZS-20 Air Reservoir offers a 20-liter volume capacity designed to stabilize and store compressed air or nitrogen in industrial pneumatic systems. Manufactured from robust high alloy stainless steel, this reservoir ensures long-term reliability and resistance to corrosion even in humid or demanding environments.
With a maximum operating pressure of 16 bar, the CRVZS-20 effectively compensates for pressure fluctuations, protecting industrial robots and automated equipment from damage, thus ensuring smooth operational continuity. The unit includes a condensate drain to efficiently remove atmospheric moisture, maintaining the integrity and performance of pneumatic circuits.
The reservoir supports a broad temperature range of -10°C to 100°C, making it suitable for various industrial applications such as pharmaceutical manufacturing, automotive production, lifting and hoisting equipment, and industrial automation. Its G1 port size and compliance with ISO 1179-1 and ISO 228-1 thread standards permit secure and standardized connections.
Measuring 740mm in length and 194mm in diameter, the compact footprint allows for easy integration into existing pneumatic systems. Made in Germany, it reflects high-quality engineering standards.
Constructed from high alloy stainless steel for durability and corrosion resistance. Maximum pressure rating of 16 bar for high-performance operation. Includes condensate drain to remove moisture from the compressed air.
Wide operating temperature range from -10°C to 100°C. Standard G1 port size with ISO thread standards ensures compatibility. Compact dimensions suitable for diverse industrial installations. Applications include pharmaceutical manufacturing, automotive, and industrial automation.
The Festo CRVZS-20 air reservoir is essential for maintaining smooth pneumatic system performance in industrial, manufacturing, and automation contexts. Browse EnvMart’s selection of pneumatic air preparation accessories for complementary products.
Explore more products in our Air Receiver category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 16 bar.
This air reservoir has a volume capacity of 20 liters.
It is constructed from high alloy stainless steel, providing durability and corrosion resistance.
The dimensions are 740mm in length and 194mm in diameter, with a height of 136mm.
It operates reliably in temperatures ranging from -10°C to 100°C.
The port size is G1, which complies with ISO 1179-1 and ISO 228-1 connection thread standards.
Yes, it includes a condensate drain to remove moisture from the compressed air.
It is suitable for applications in pharmaceutical manufacturing, the automotive industry, and lifting equipment.
The gross weight of this model is 10.2 grams.
The reservoir bore size is 40mm.
It is manufactured in Germany, reflecting high-quality engineering standards.
It complies with ISO 1179-1 and ISO 228-1 connection thread standards for secure connections.
