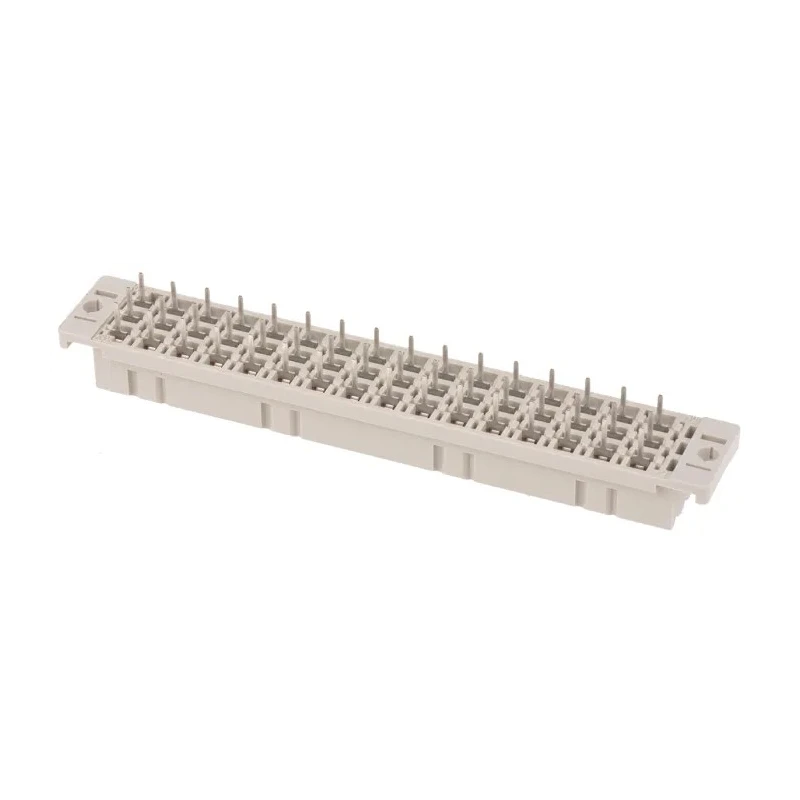

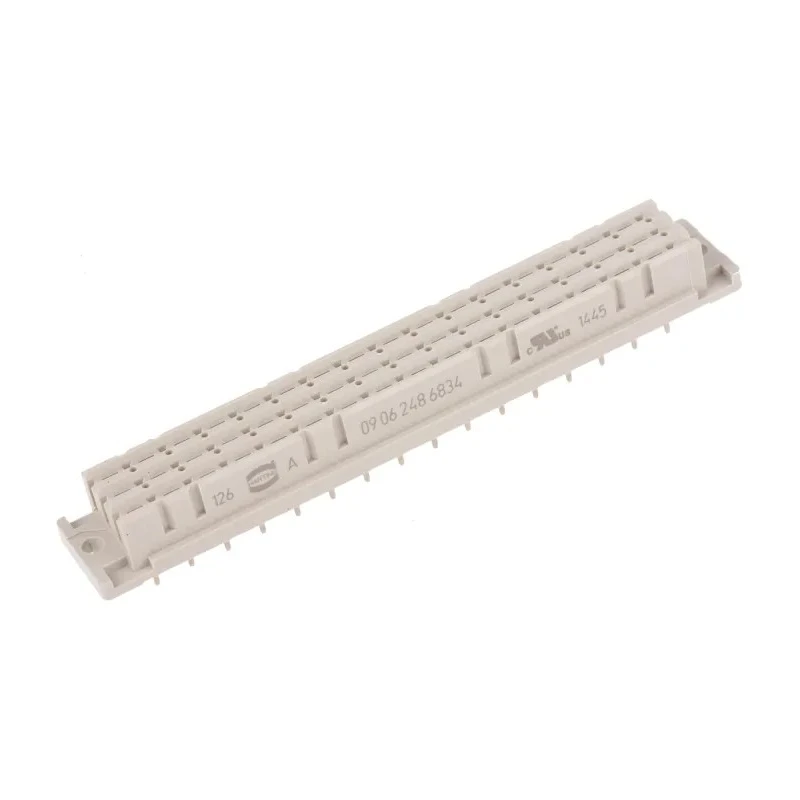

HARTING DIN 41612 48 Way 5.08 mm Pitch Through Hole Type F Solder 3 Row Female Straight Connector 09062486834

HARTING 09062486834 DIN 41612 48 Way Through Hole Connector is a high-quality female connector with a 5.08 mm pitch, featuring type F and solder termination in a straight 3-row configuration. It is intended for use within electronic components and power connectors, providing reliable connections in industrial and laboratory settings.

This connector is made with gold over nickel plated copper alloy contacts that ensure low contact resistance and durability under electrical load. Designed to meet DIN 41612 standards, it is compatible with common 19in Eurocard racking systems and is suitable for applications requiring 6 A current capacity.

Operating under temperatures ranging from -55°C to 125°C, the connector is well suited for harsh environments encountered in manufacturing, automotive, and industrial electronics. The through hole mounting type allows for stable PCB integration and solder termination ensures secure electrical contact.

The housing is constructed from polybutylene terephthalate, providing excellent mechanical resistance and insulation. Its straight orientation and female connector gender make it ideal for use in backplane and rack connectors.

Key performance characteristics include a maximum contact resistance of 15 mΩ, supporting efficient signal integrity. This connector is indispensable for high-density, reliable electrical connections in electronic assemblies, commercial equipment, and industrial automation systems.

The connector features 48 contact points arranged in 3 rows for high density signal transmission. Contacts are made from copper alloy with gold over nickel plating to ensure reliable conductivity and corrosion resistance.

Operating temperature range is from -55°C to 125°C, suitable for demanding electronic applications. The connector employs through hole mounting for secure PCB attachment and supports solder termination type. It is compatible with DIN 41612 standard Eurocard racking systems.

Maximum contact resistance is 15 milliohms, enabling efficient electrical performance. The housing material is robust polybutylene terephthalate, providing mechanical stability. This female connector is oriented straight to facilitate easy integration in electronic assemblies.

This highly reliable connector is well-suited for industrial, laboratory, manufacturing, and electronic applications requiring secure backplane and rack connections. Explore more in the DIN 41612 Connector category at EnvMart for compatible products and accessories.
