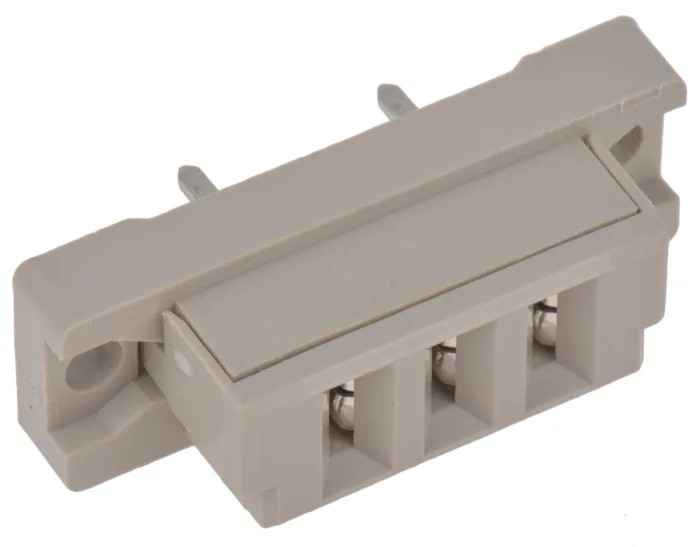

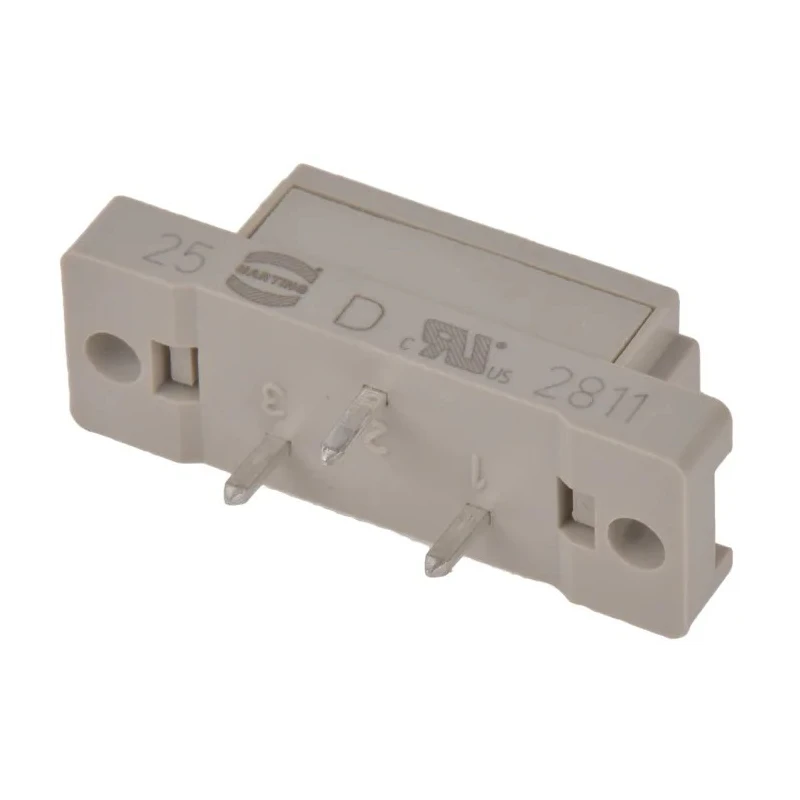

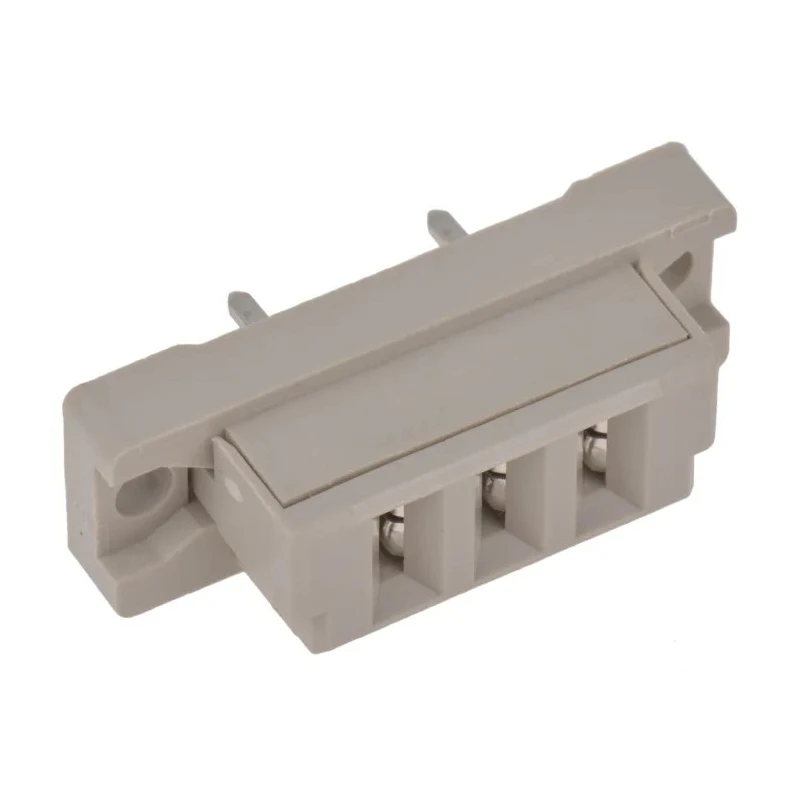

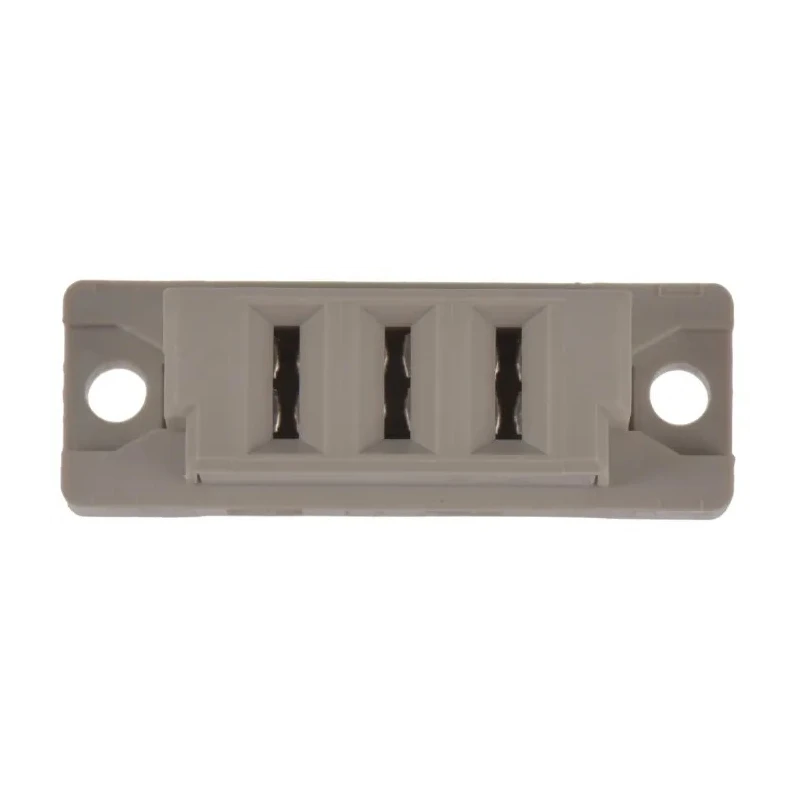

HARTING DIN 41612 3 Way 10.16 mm Pitch Through Hole Female Connector Solder Termination 09062032811

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 3 Way 10.16 mm Pitch Through Hole Female Connector Solder Termination 09062032811

Name: HARTING DIN 41612 3 Way 10.16 mm Pitch Through Hole Female Connector Solder Termination 09062032811
Brand: HARTING
SKU: 185816
Price: 9.58 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	Romania
Brand	HARTING
Orientation	Straight
Current	15A
Mounting Type	Through Hole
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	H3
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	10.16mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	8mΩ

Key Features

Designed for reliable electrical connection in industrial and electronic applications.
Through hole mounting for durable PCB attachment.
Female connector with solder termination enhances secure conductor connection.
Constructed from copper alloy contacts with tin plating for corrosion resistance.
Housing made of polybutylene terephthalate material for thermal stability.
Rated for 15A current capacity with contact resistance max 8 mΩ.
Operating temperature range from -55°C to 125°C suits harsh environments.
Compliance with DIN 41612 series standard ensures interoperability.

Product Description

HARTING 09062032811 DIN 41612 Connector is a 3 Way female connector designed for industrial and electronic equipment requiring standard DIN 41612 compliant interfaces. Featuring a 10.16 mm pitch, it provides reliable and precise contact spacing essential in backplane and rack-mounted systems.

This type H3 solder termination connector mounts through the PCB with a straight orientation, facilitating secure and permanent soldered connections. The contacts are made of copper alloy with tin plating providing excellent electrical conductivity and corrosion resistance, while the housing material polybutylene terephthalate enhances mechanical strength and thermal endurance.

Rated at 15 amperes of current and supporting temperatures from -55°C up to 125°C, this connector is suitable for demanding industrial, electronic, and manufacturing environments requiring robustness and reliability. The maximum contact resistance of 8 milliohms ensures minimal electrical losses for critical signal and power transmission.

The connector’s female gender and 1-row configuration simplifies integration with male counterparts in systems designed to the DIN 41612 standard. It is commonly used in electronics, instrumentation, control systems, telecommunications, and automation industries where modular connectivity is essential.

Reliable electrical contact with 3-way, 1-row female sockets. 10.16 mm pitch provides standard DIN spacing for compatibility. Through hole solder termination ensures strong PCB connection. Operating temperature range suitable for harsh industrial conditions.

Robust housing material delivers durability and thermal stability. Maximum contact resistance of 8 mΩ for efficient signal integrity. Current rating up to 15A meets moderate power requirements. Ideal for industrial electronics, manufacturing and control systems.

Compliant with DIN 41612 Connector standards for system compatibility.

This HARTING connector supports efficient assembly and maintenance of backplane connectors in laboratory, industrial automation, and manufacturing testing applications. It ensures system modularity, operational reliability, and long service life.
