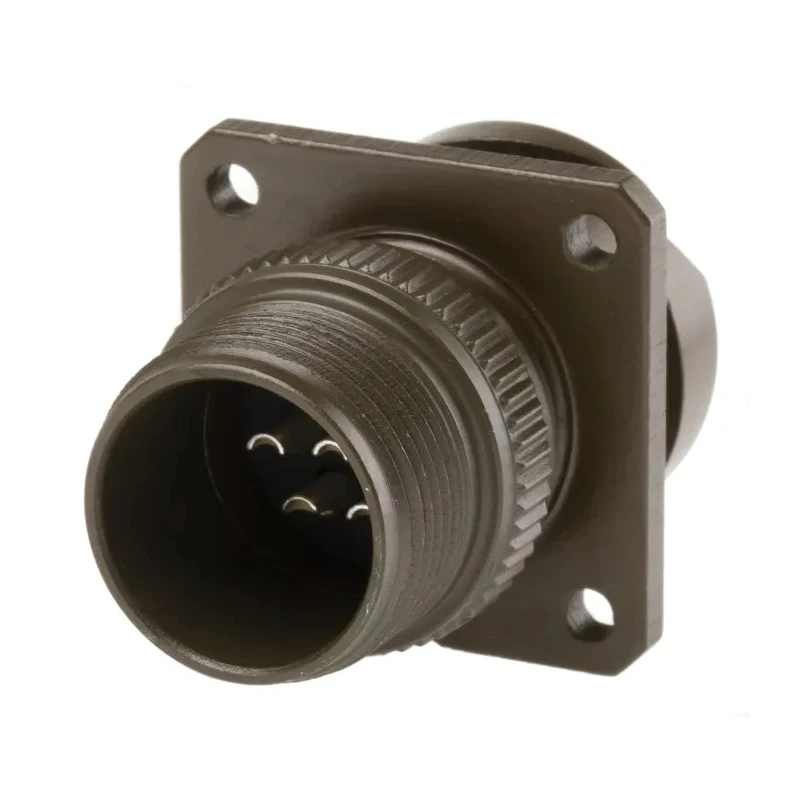

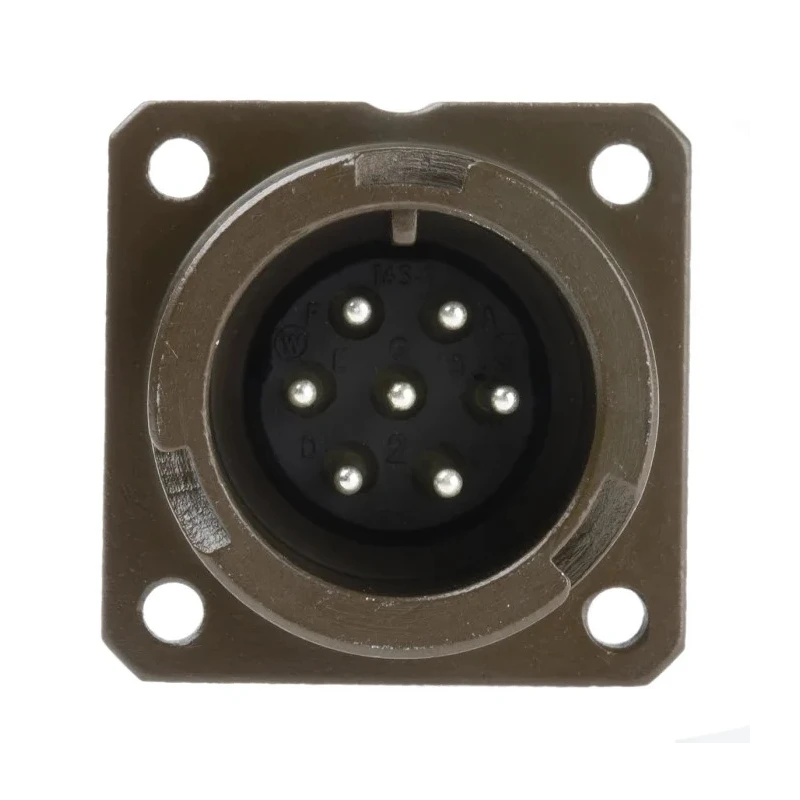

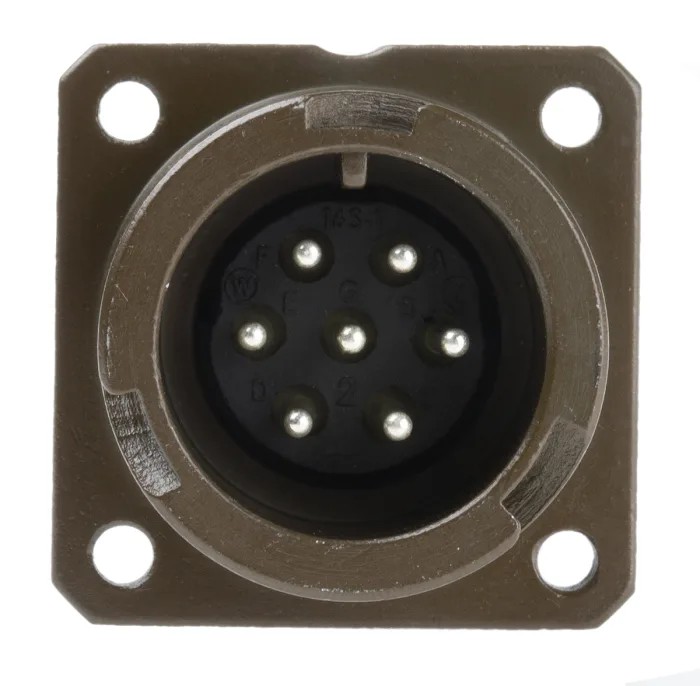

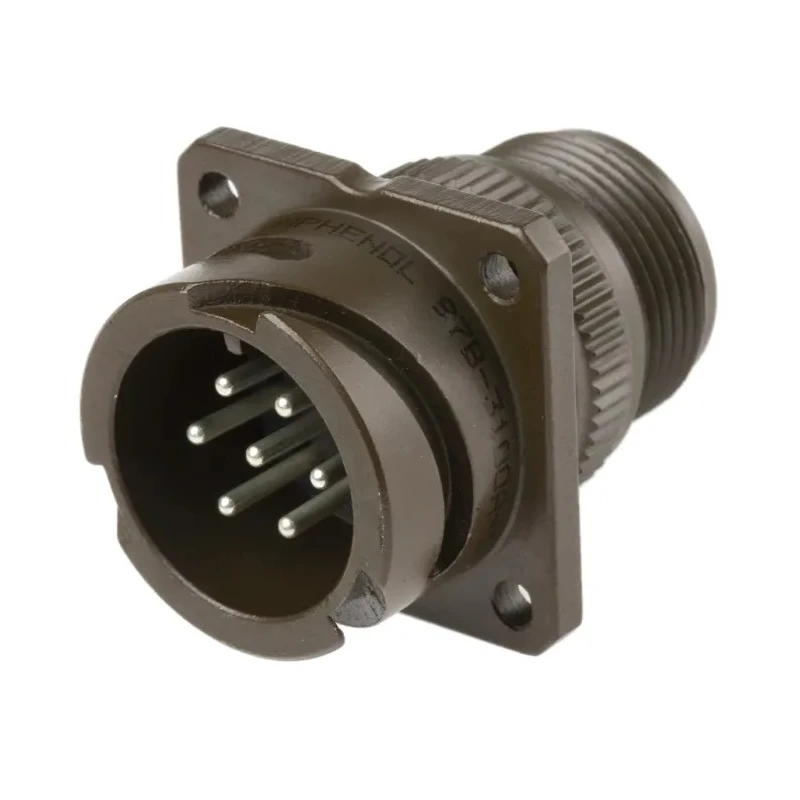

Amphenol Limited MIL Spec Circular Connector 7 Contacts 13A 500V AC Brass Straight Wall Mount Olive Drab 97B-3100A-16S-1P

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Limited MIL Spec Circular Connector 7 Contacts 13A 500V AC Brass Straight Wall Mount Olive Drab 97B-3100A-16S-1P

Name: Amphenol Limited MIL Spec Circular Connector 7 Contacts 13A 500V AC Brass Straight Wall Mount Olive Drab 97B-3100A-16S-1P
Brand: Amphenol Limited
SKU: 185756
Price: 25.43 USD
Availability: InStock



Category Mil Spec Circular Connector Brand Amphenol Limited Condition New

Specifications

Country of Origin	India
Voltage	500V ac
Brand	Amphenol Limited
Colour	Olive
Orientation	Straight
Current	13A
Model	97B-3100A-16S-1P

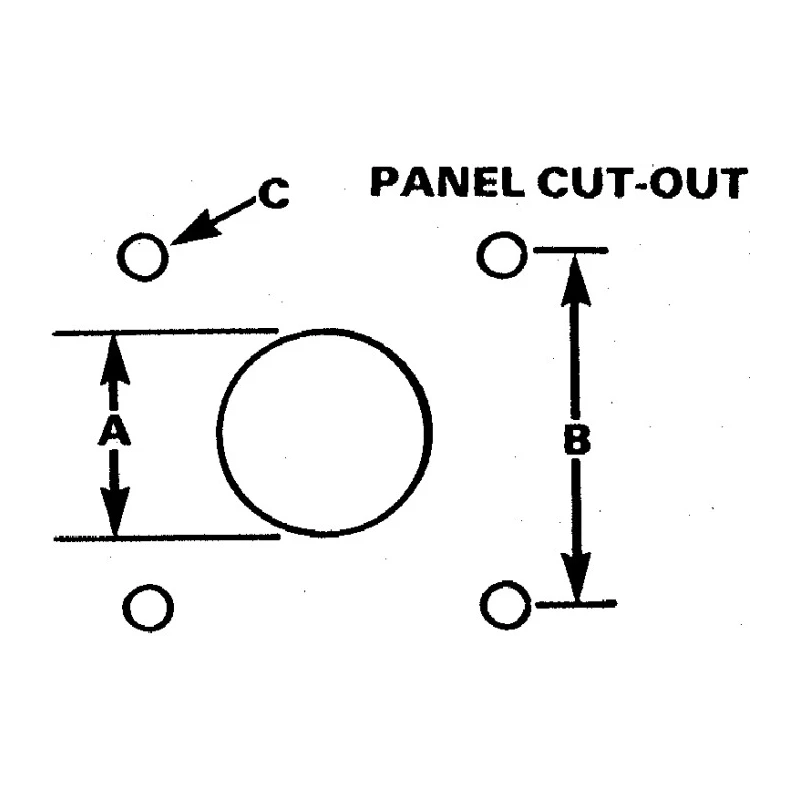

Mount Type	Wall Mount
Housing Material	Aluminium Alloy
Contact Material	Brass
Series	97B
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Contact Plating	Silver
Number of Contacts	7
Contact Gender	Male
Connector Gender	Female

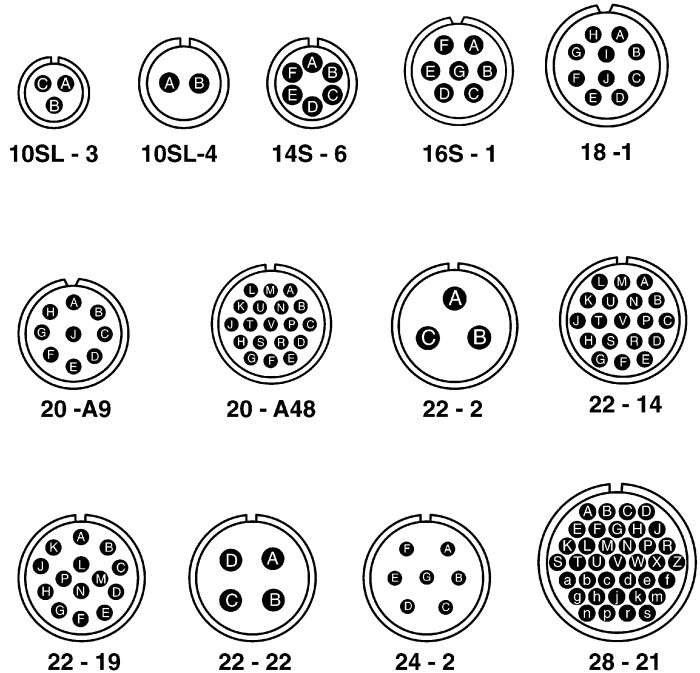

Shell Size	16S
Military Standard	MIL-DTL-5015
Mating Type	Bayonet
Connector Size	Standard
Shell Plating	Olive Drab Cadmium

Key Features

Designed for military standard MIL-DTL-5015 compliance with bayonet mating type.
Operates reliably from -55°C up to 125°C temperature range.
Features 7 male contacts supporting 13A current at 500V AC.
Constructed with aluminium alloy housing and brass contact material with silver plating.
Suitable for solder termination and wall mount installation.
Durable olive drab cadmium plated shell with strain relief and arctic style finger grip cable shell.
Ideal for industrial, military, electronic, and power connector applications.

Product Description

Amphenol Limited 97B-3100A-16S-1P MIL Spec Circular Connector is a premium quality circular connector designed to meet MIL-DTL-5015 specifications, offering a robust and reliable interface for electronic and power applications. This connector supports 7 male contacts capable of handling a current of 13A at 500V AC, making it suitable for demanding environments requiring stable connections.

The straight orientation Wall Mount design with bayonet mating ensures secure and easy engagement suitable for chassis and cable mounting needs. Constructed with a durable aluminium alloy housing featuring an olive drab cadmium plating, it provides excellent mechanical and environmental resistance including strain relief for enhanced longevity of cable assemblies.

The connector's contacts are made of brass with silver plating over nickel, combining superior conductivity with corrosion protection. Operating temperature ranges from -55°C to 125°C, facilitating use in harsh environmental and industrial conditions. The solder termination type supports reliable cable connections with a solder bucket design for cable-mounting plugs. The olive drab shell finish also complies with military specifications MIL-C-5015 and BS 9522 F0032 standards.

This connector is ideal for applications across electronic components, power connectors, military equipment, HVAC systems, industrial machinery, and other demanding environments needing rugged circular connectors.

Complies with MIL-DTL-5015 military standard and industry specifications. Features 7 male contacts rated for 13A current and 500V AC voltage. Robust aluminium alloy housing with olive drab cadmium plating for durability.

Bayonet locking mechanism for secure and quick mating. Strain relief and arctic style finger grip on cable shell enhances handling. Operates reliably between -55°C and 125°C temperatures. Solder termination type suitable for secure cable connections.

Set your system up for long-term reliability with this high-quality Mil Spec Circular Connector from Amphenol Limited. Explore further industrial electrical and circular connectors at EnvMart for compatible solutions and accessories.
