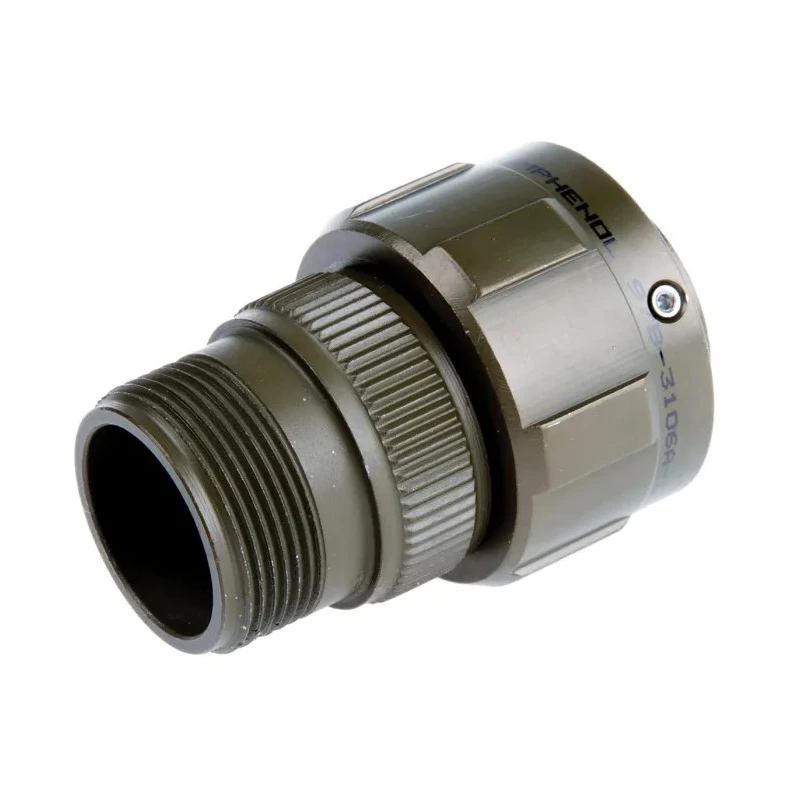

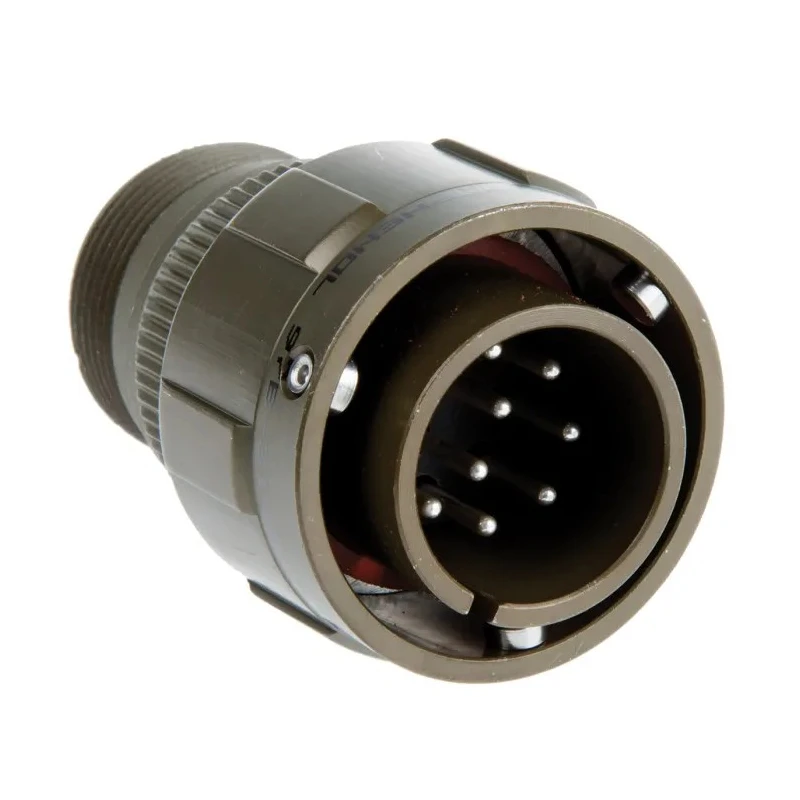

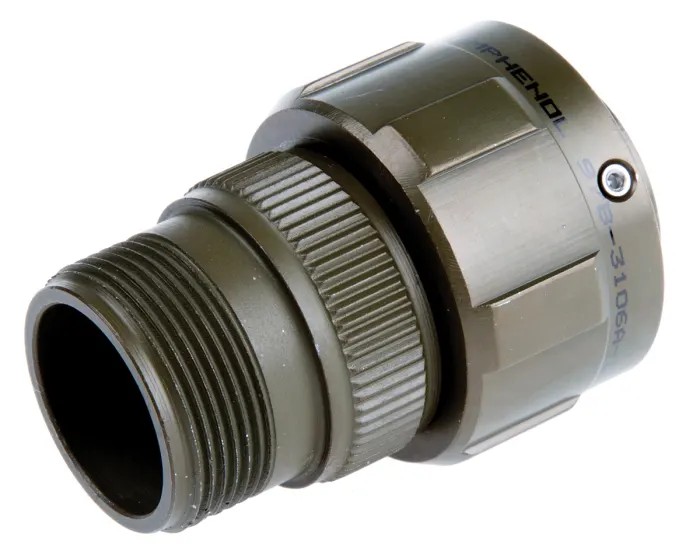

Amphenol Limited MIL Spec Circular Connector Brass Straight 10 Way Cable Male Contacts Olive Drab Cadmium 97B-3106A-18-1P-HD
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V ac |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Current | 13A |
| Model | 97B-3106A-18-1P-HD |
| Mount Type | Cable |
| Housing Material | Aluminium Alloy |
| Contact Material | Brass |
| Series | 97B |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Silver |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shell Size | 18 |
| Military Standard | MIL-DTL-5015 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Shell Plating | Olive Drab Cadmium |
| MS/B PLG 18-1Brand | AB Electronic |
Key Features
- This 10-way connector supports a maximum current of 13A for reliable power transmission.
- The shell size is 18, made from aluminium alloy with olive drab cadmium plating for corrosion resistance.
- Connector is rated for 500V AC voltage and operates in temperatures from -55°C to 125°C.
- Features include silver-plated brass contacts and strain relief for durable connections.
- Conforms to MIL-DTL-5015 military standard with straight orientation and solder termination type.
- The bayonet mating type ensures easy and secure connection for industrial and military applications.
- The olive-colored connector housing offers environmental protection suitable for harsh environments.
- Manufactured in India and designed for use in electronics, power distribution, and communication systems.
Product Description
Amphenol Limited 97B-3106A-18-1P-HD MIL Spec Circular Connector is a rugged, durable cable-mounting connector featuring 10 male contacts suitable for industrial, military, and electronic applications. It complies with MIL-DTL-5015 standards and is designed with a bayonet locking mechanism to ensure secure and quick connections.
Constructed using a high-quality aluminium alloy housing finished with olive drab cadmium plating, this connector provides excellent corrosion resistance and environmental protection. The contacts are brass with silver plating to maintain high conductivity and durability under demanding conditions.
Rated for a voltage of 500V AC and a maximum current of 13A, it supports a wide temperature range from -55°C to 125°C, making it ideal for harsh environmental applications.
The connector offers solder bucket termination with strain relief to enhance reliability in cable-mounting setups. Its straight orientation and standard connector size shell 18 cater to diverse assembly requirements in power, communication, and military systems.
Common uses include industrial electronics, power connectors, military communication equipment, and robust electronic enclosures needing MIL Spec circular connectors for interconnection.
This 10-way connector supports maximum 13A current for power distribution. Aluminium alloy shell with olive drab cadmium plating for corrosion protection. Bayonet coupling for secure and fast mating. Rated for 500V AC operation and temperature range -55°C to 125°C.
Silver-plated brass contacts ensure reliable electrical performance. Strain relief attachment for durability under cable strain. Standard shell size 18 and straight orientation suit varied connector needs. Suitable for military, industrial, and electronic systems requiring MIL-DTL-5015 connectors.
Set contains 1 Pc Amphenol Limited 97B-3106A-18-1P-HD MIL Spec Circular Connector. Browse more Mil Spec Circular Connectors and related industrial connectors on EnvMart for your technical and commercial needs.
