Amphenol Limited MIL Spec Circular Connector Brass Straight 6 Way Cable Male Contacts Shell Size 14S 97B-3106A-14S-6P-HD

Free Delivery in India | Lowest Global Shipping Charges

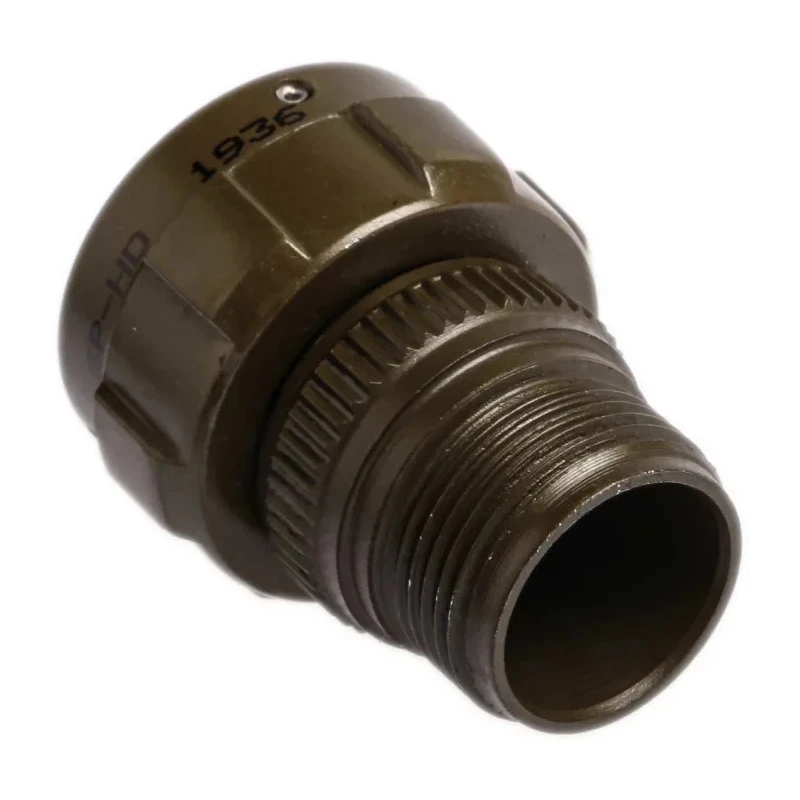

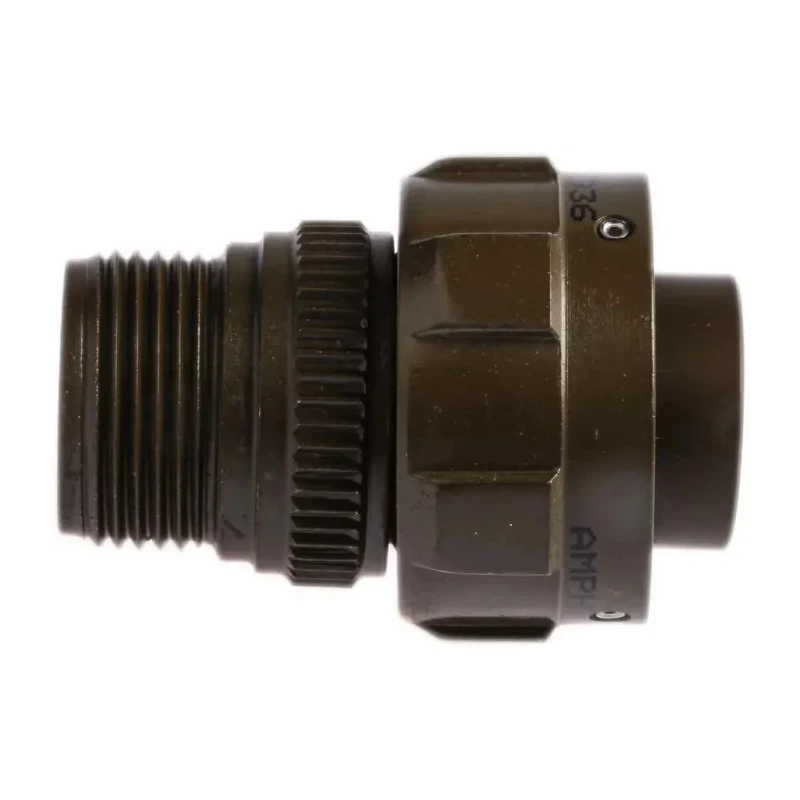

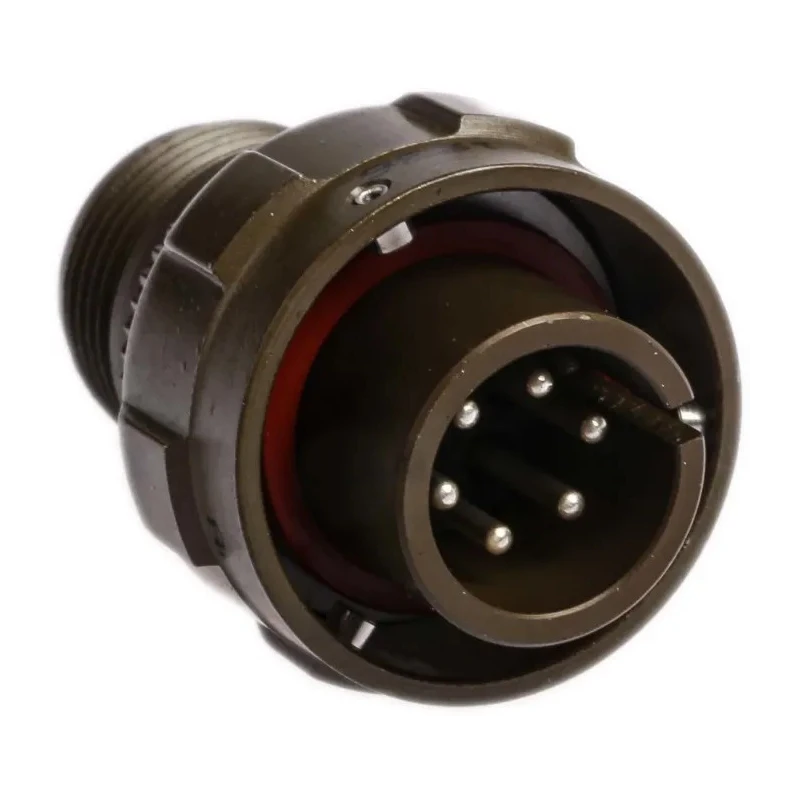

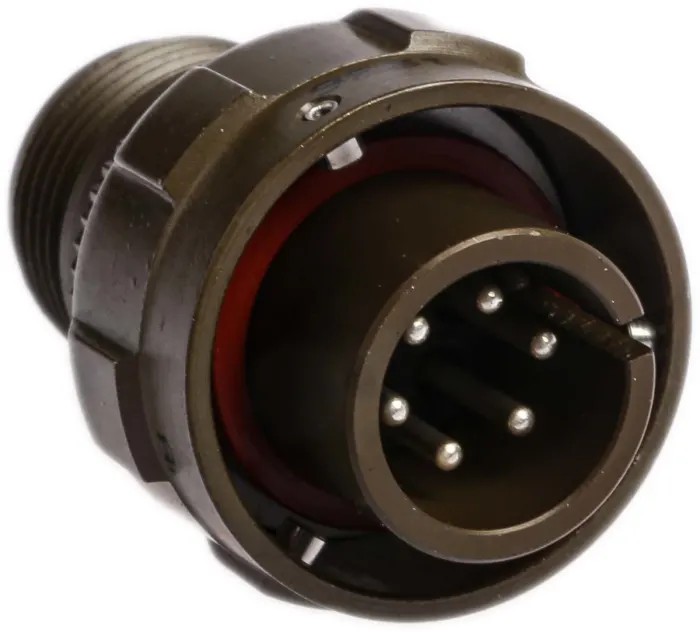

Amphenol Limited MIL Spec Circular Connector Brass Straight 6 Way Cable Male Contacts Shell Size 14S 97B-3106A-14S-6P-HD

Name: Amphenol Limited MIL Spec Circular Connector Brass Straight 6 Way Cable Male Contacts Shell Size 14S 97B-3106A-14S-6P-HD
Brand: Amphenol Limited
SKU: 185750
Price: 23.5 USD
Availability: InStock



Category Mil Spec Circular Connector Brand Amphenol Limited Condition New

Specifications

Country of Origin	India
Voltage	200V ac
Brand	Amphenol Limited
Colour	Olive
Orientation	Straight
Current	13A
Model	97B-3106A-14S-6P-HD
Mount Type	Cable
Housing Material	Aluminium Alloy
Contact Material	Brass
Series	97B
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Contact Plating	Silver
Number of Contacts	6
Contact Gender	Male
Connector Gender	Male
Shell Size	14S
Military Standard	MIL-DTL-5015
Mating Type	Bayonet
Connector Size	Standard
Shell Plating	Olive Drab Cadmium

Key Features

Constructed with aluminium alloy housing and olive drab cadmium plating for corrosion resistance.
Supports 6 male contacts with a current rating of 13A and operating voltage of 200V AC.
Designed for cable mounting with solder termination and bayonet coupling for secure connection.
Operates reliably within temperature range of -55°C to 125°C.
Meets MIL-DTL-5015 military standards ensuring compatibility and ruggedness.
Features silver-plated brass contacts for optimal conductivity and durability.
Strain relief is integrated for enhanced durability under mechanical stress.
Olive colour with straight bayonet orientation for easy installation.

Product Description

Amphenol Limited 97B-3106A-14S-6P-HD Mil Spec Circular Connector is a high-quality, robust connector designed for demanding industrial and military environments. Engineered to MIL-DTL-5015 standards, this 6 way cable male connector features brass contacts with silver plating and an aluminium alloy housing finished with olive drab cadmium plating, providing excellent corrosion resistance and mechanical strength.

The connector is intended for cable mounting applications and uses solder bucket contacts to ensure a secure and reliable electrical connection. The bayonet mating system ensures fast and reliable coupling, suitable for harsh environments requiring quick connect/disconnect capability. It handles a current rating of 13A and an operating voltage of 200V AC, functioning reliably over a wide temperature range from -55°C to 125°C.

This MIL Spec connector series is known for its ruggedness and versatility, meeting stringent military grade standards. The olive drab colour and straight orientation enhance both durability and ease of installation in industrial, aerospace, and defense applications.

Constructed with corrosion resistant aluminium alloy housing. Bayonet locking mechanism for secure mating. 6 male solder bucket contacts with silver plating. Rated for 13A current and 200V AC voltage. Operating temperature range from -55°C to 125°C.

Complies with MIL-DTL-5015 military standard. Integrated strain relief for cable protection. Olive drab cadmium shell plating for enhanced corrosion resistance. Shell size 14S, standard dimension.

This connector is suitable for industrial manufacturing, military hardware, aerospace electronics, and other demanding environments needing reliable circular connectors that meet MIL specifications.
