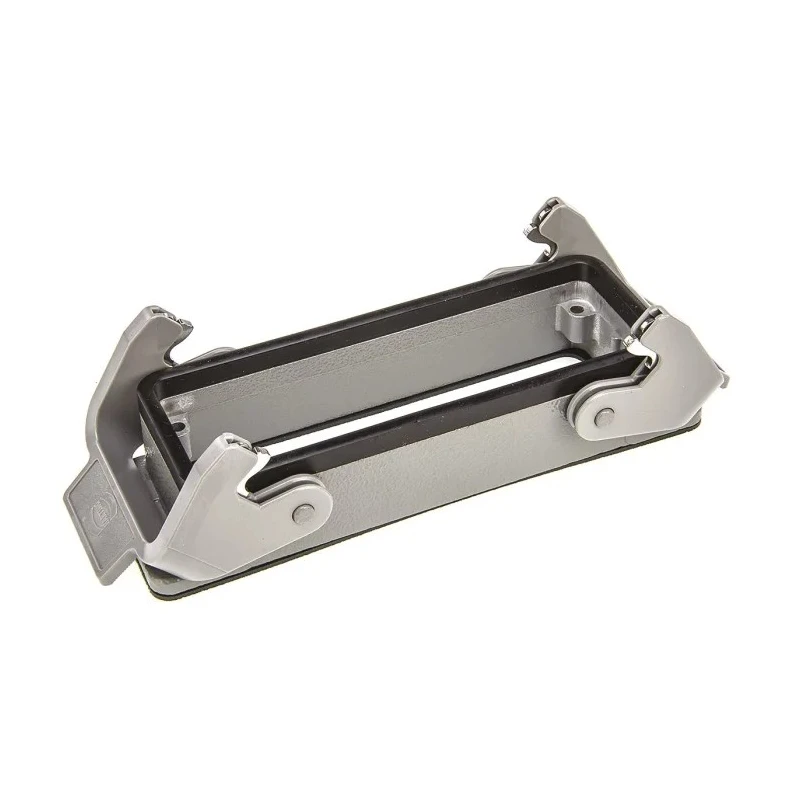

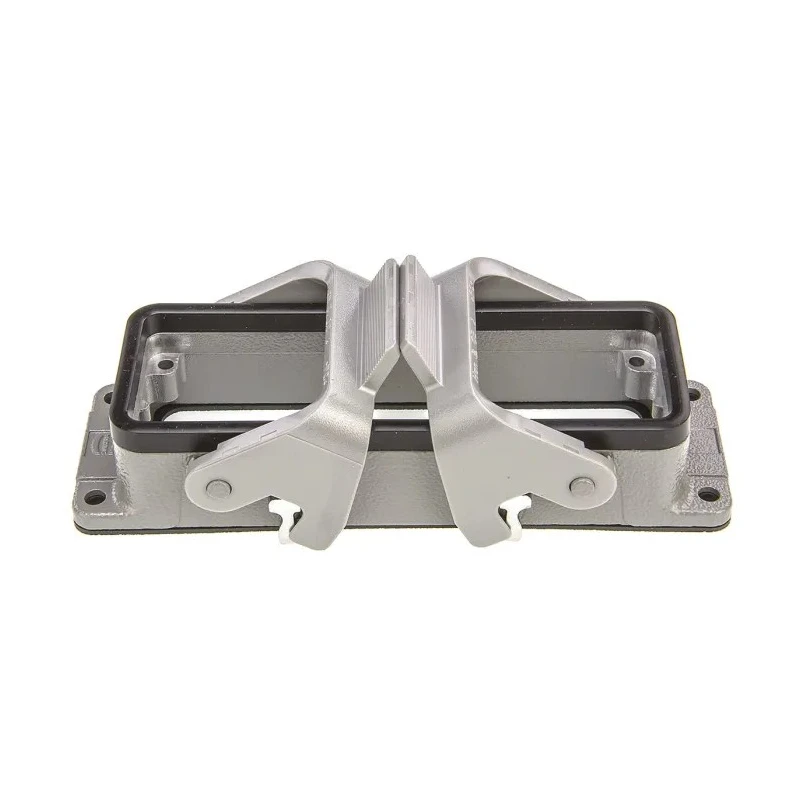

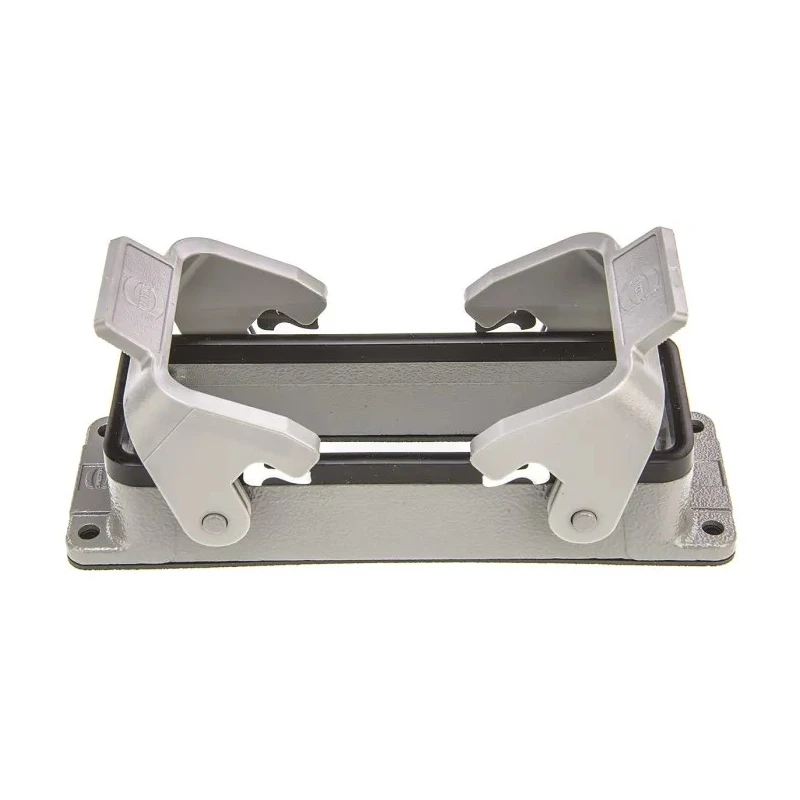

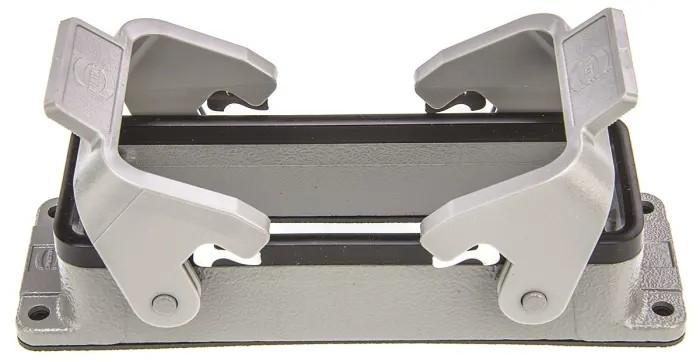

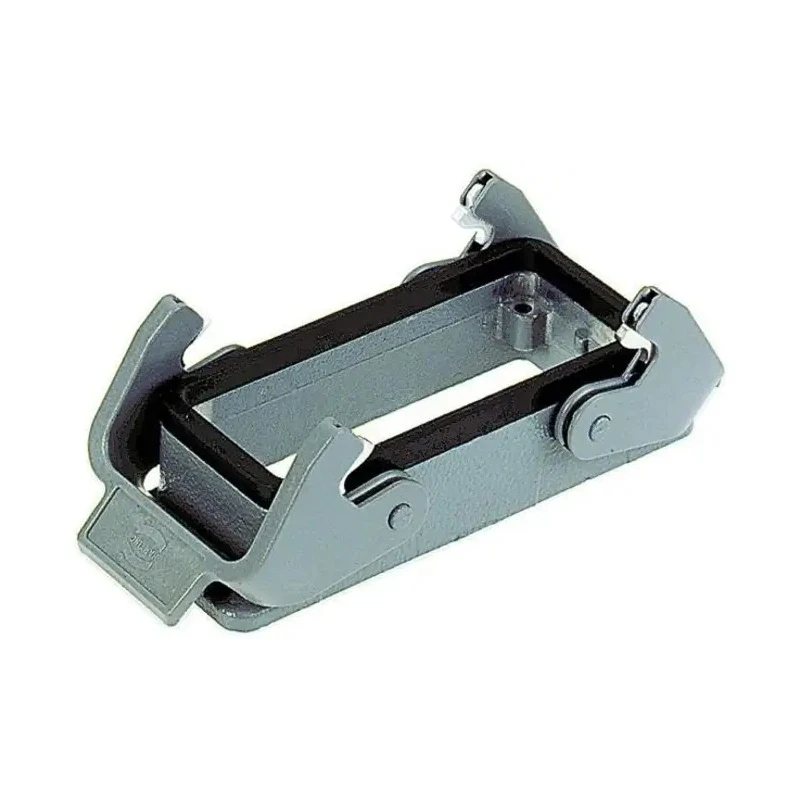

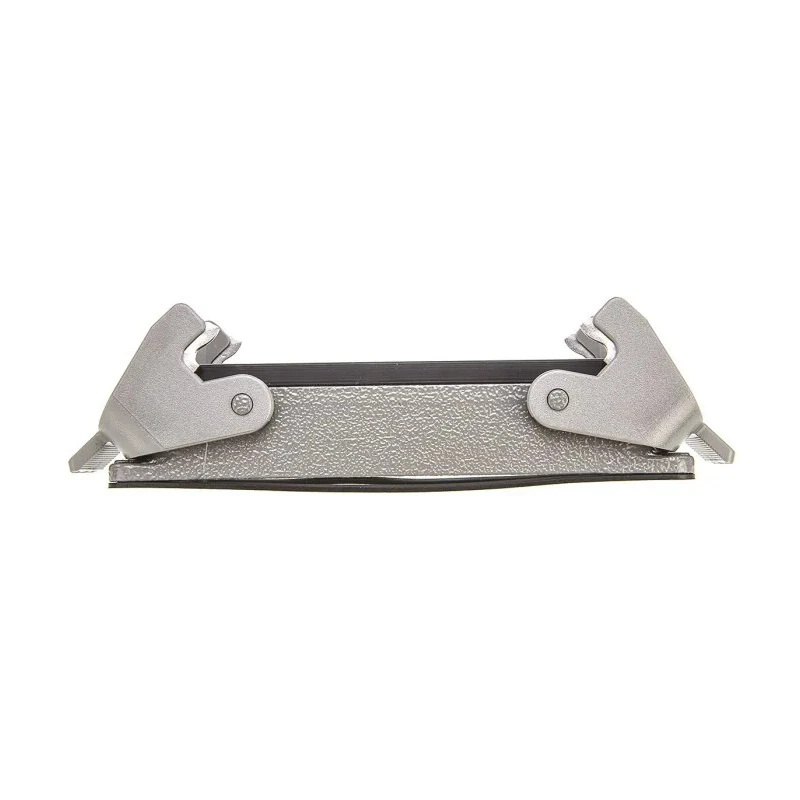

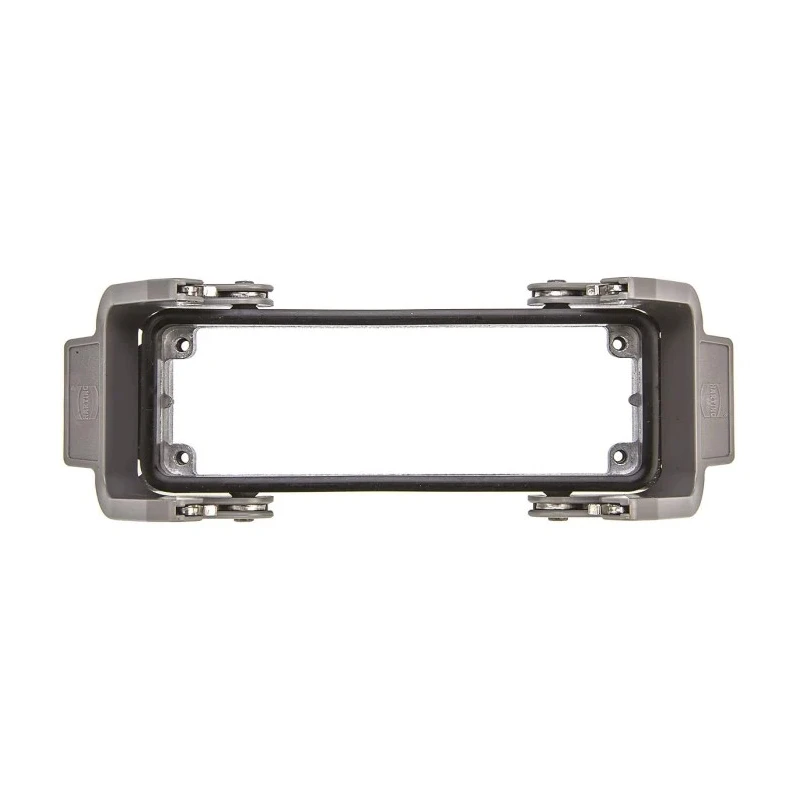

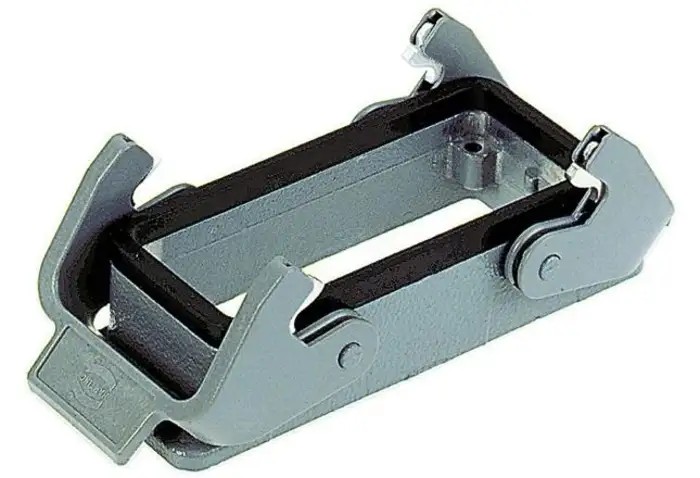

HARTING Han B Range Heavy Duty Power Connector Housing Bulkhead Mount Die Cast Aluminium Body IP65 09300240301
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Body Material | Die Cast Aluminium |
| IP Rating | IP65 |
| Mount Type | Bulkhead |
| Series | Han B |
| Sub Type | Bulkhead Housing |
| For Use With | Standard hoods/Housings For industrial Connectors |
| Standards/Approvals | UL / CSA, UL 1977 ECBT2.E235076, DNV GL, CSA-C22.2 No. 182.3 ECBT8.E235076, CE |
| Locking Type | Double Lever |
| Number of Levers | 2 |
Key Features
- Constructed with durable die cast aluminium for mechanical strength and thermal mass.
- Features double-lever locking system for secure and tool-free panel attachment.
- Provides IP65 ingress protection suitable for outdoor and washdown environments.
- Designed for ≥500 mating cycles ensuring durability and frequent use capability.
- Operates reliably in the temperature range from −40 to +125°C.
- Powder-coated in RAL 7037 dust grey color for corrosion resistance and uniform appearance.
- Complies with UL 1977, CSA standards, and certifications for electrical connectors.
- Suitable for industrial automation, mobile machinery, marine and offshore power interface applications.
Product Description
HARTING 09300240301 Heavy Duty Power Connector Housing is a premium quality bulkhead mount housing designed for industrial power connections requiring mechanical strength, robustness and secure fitment. The die cast aluminium body provides excellent thermal mass while maintaining a low profile. This connector housing is engineered for reliable operation with IP65 ingress protection, making it suitable for demanding outdoor and washdown applications.
The double-lever locking mechanism allows tool-free, secure attachment to panels or enclosures, reducing installation effort. The housing exterior is powder-coated in RAL 7037 dust grey to ensure corrosion resistance and a consistent appearance in industrial environments.
Rated to withstand ≥500 mating cycles, this Han B series connector housing withstands frequent connection and disconnection without degradation. Operating temperature ranges from −40 to +125°C provide wide environmental tolerance for varied industrial conditions.
The housing complies with key electrical connector standards including UL 1977 and CSA certifications, ensuring safety and reliability in industrial automation, mobile machinery, marine bulkhead interfaces, offshore equipment, and test rigs. The product is designed to mate with standard Han B series hoods and inserts, allowing modular field-replaceable power connector solutions.
Durable die cast aluminium body for strength. Double-lever locking for secure panel connection. IP65 rating for dust and water ingress protection. Powder-coated finish for corrosion resistance. Compliant with UL 1977, CSA and CE standards.
Wide operating temperature range from −40 to +125°C. ≥500 mating cycles for frequent use applications. Bulkhead mount with M4 screws tightened to 1 Nm. Seal with NBR and polycarbonate locking levers with stainless steel.
This Heavy Duty Power Connector Housing from HARTING is suitable for control cabinet feed-throughs in factory automation, power distribution on mobile machinery, marine and offshore bulkhead applications, and high-cycle use in test or production lines. It offers a rugged, reliable solution for industrial power connector enclosures.
Explore our full range of industrial power connectors and accessories for enhanced automation and electrical distribution solutions at EnvMart.
