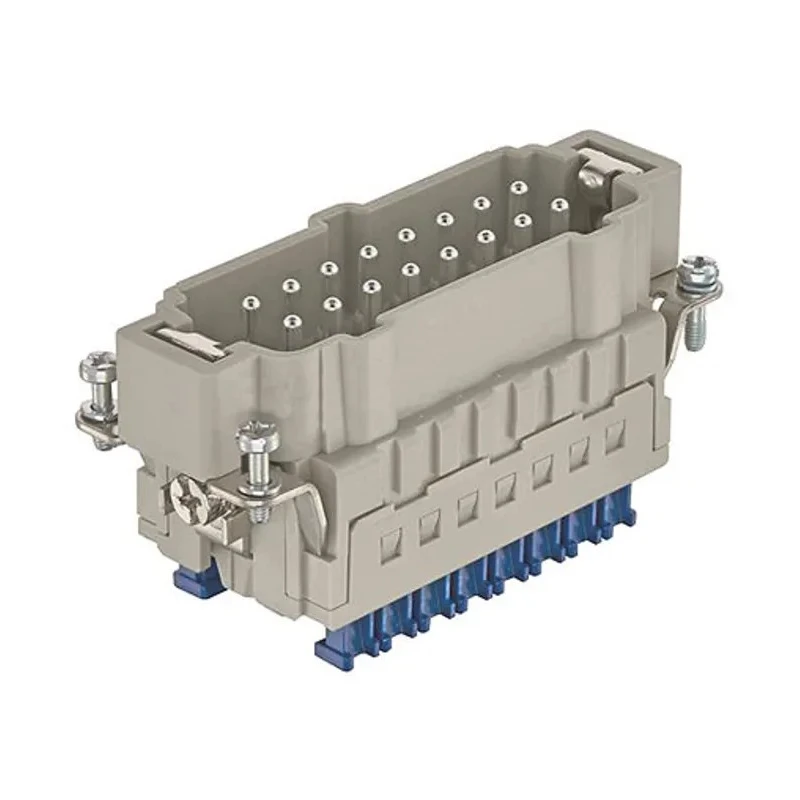

HARTING Heavy Duty Power Connector Insert 16A 500V Han ES Press Series Male Panel Mount with 16 Contacts 09330162648

HARTING 09330162648 Heavy Duty Power Connector Insert is engineered for industrial and manufacturing applications requiring robust and reliable power connections. This male connector insert operates at a voltage of 500V and a current rating of 16A, allowing it to handle heavy duty electrical loads effectively.

Featuring a Han ES Press Series design, this insert is equipped with 16 silver-plated copper alloy contacts arranged in 2 rows, providing secure and vibration-resistant connections. The cage clamp termination system facilitates quick and tool-free wiring, significantly reducing installation time and improving maintenance efficiency.

The connector accepts a wide range of wire sizes from 0.14mm² to 2.5mm², making it adaptable to diverse wiring requirements. Its panel mount configuration with M3 x 10 thread size ensures stable mounting in control cabinets or electrical panels.

Optional ES Press plug-in jumpers are supported for easy bridging of contacts directly in the connector, enabling configurations such as Star and Delta motor connections. This feature promotes versatility in electrical circuit design and simplifies complex wiring tasks.

These Han 16 ES Press inserts are compatible with multiple HARTING Han series accessories, including Han B, Han M, Han EMC, and Han Easy Hood, which broadens their use in various industrial settings such as automation, power generation, transportation, and process control.

Designed for heavy duty industrial power connections with a current rating of 16A. Constructed with copper alloy contacts plated with silver for reliable conductivity. Includes vibration proof design and cage clamp terminations for easy wiring without additional tools.

Supports wire sizes ranging from 0.14mm² minimum to 2.5mm² maximum for versatile applications. Features 2 rows with 16 pole format for multipin connectivity. Thread size M3 x 10 and panel mount type ensures secure installation.

Accepts plug-in jumpers allowing contact bridging and Star/Delta motor connections. Compatible with various HARTING Han series hoods and housings for broad system integration. Manufactured in Germany with robust construction ensuring durability in industrial environments.

This connector insert is an ideal component in electrical power distribution systems, industrial machinery, automation controls, and other high-demand environments. The combination of reliable contact materials, flexible wiring options, and a sturdy design contributes to improved electrical safety and operational efficiency.
