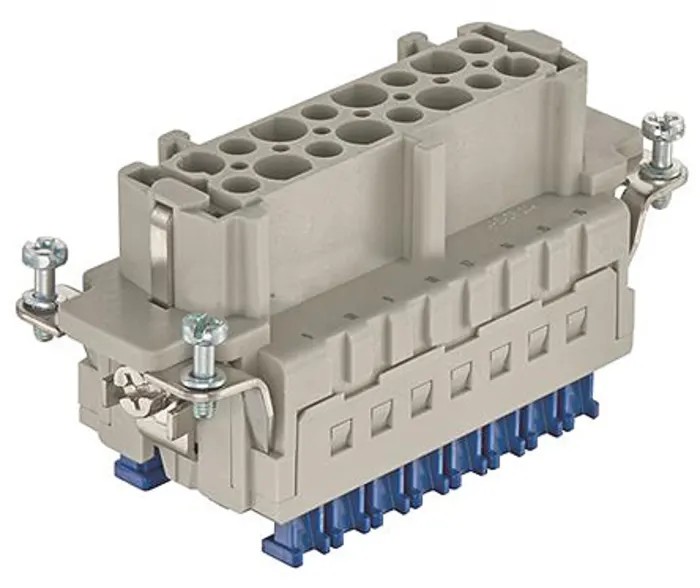

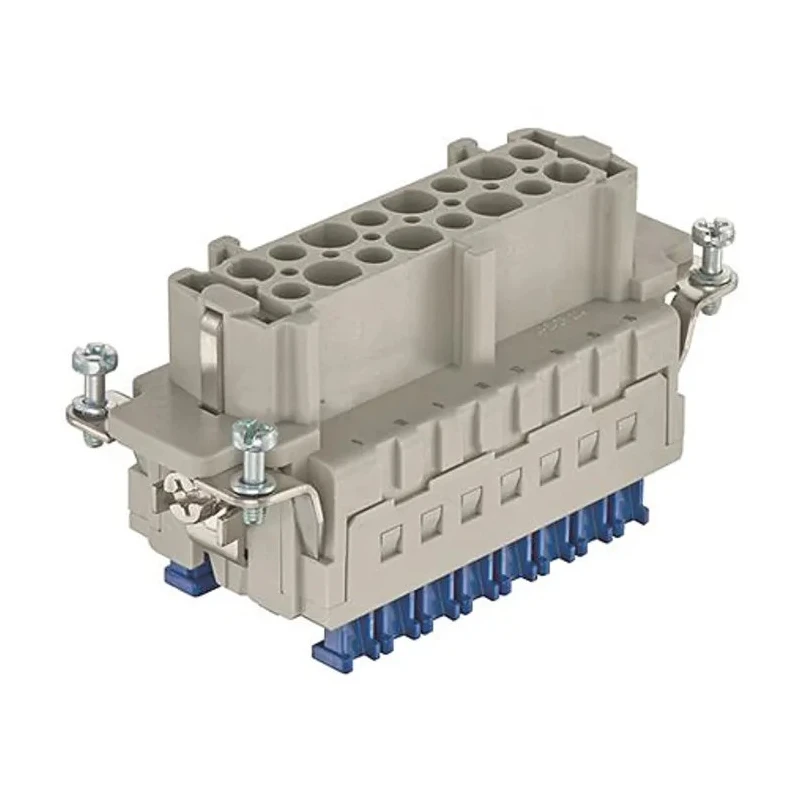

HARTING Heavy Duty Power Connector Insert 16A Han ES Press Series Female 16 Contacts 09330162748
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han ES Press |
| Thread Size | M3 x 10 |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 16 |
| Contact Plating | Silver |
| Number of Contacts | 16 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Rated for 16A current with 500V voltage capacity.
- Features a vibration proof design for industrial reliability.
- Includes silver-plated copper alloy contacts for excellent conductivity.
- Cage clamp terminations allow quick and easy wiring without additional tools.
- Suitable for wire sizes ranging from 0.14 mm² to 2.5 mm².
- Mounts securely on panels with M3 x 10 thread size.
- Connector body designed for straight orientation usage.
- Compatible with Han B, Han M, Han EMC, Han Easy Hood, and Han HPR housings.
Product Description
HARTING 09330162748 is a heavy duty power connector insert designed for robust electrical applications requiring a reliable 16A current rating and 500V voltage capacity. This female connector insert belongs to the reputable Han ES Press Series, featuring 16 contacts arranged in two rows. The contacts are crafted from copper alloy and plated with silver to ensure high conductivity and corrosion resistance, making it suitable for demanding industrial environments.
The connector employs cage clamp terminations that facilitate quick and secure wiring without the need for additional tools. Its vibration proof design further enhances durability in harsh operational settings. The insert supports wire sizes from 0.14 mm² up to 2.5 mm², allowing flexible cabling options. Mounting is achieved via panel mount type with an M3 x 10 thread size, suitable for various industrial panels.
This connector's straight orientation and compatibility with a wide range of Han series hoods and housings - including Han B, Han M, Han EMC, Han Easy Hood, and Han HPR - make it versatile for multiple industrial, manufacturing, electrical distribution, and automation applications. Optional ES Press plug-in jumpers can be employed to bridge contacts or implement star and delta motor connections, enhancing operational versatility.
Rated for 16A current and 500V voltage. Vibration proof design ensures operational stability. Silver-plated copper alloy contacts for reliable conductivity. Fast cage clamp wiring without special tools. Supports wire sizes 0.14 mm² to 2.5 mm².
Panel mount with thread size M3 x 10 for secure installation. Straight orientation suitable for various panel configurations. Compatible with multiple Han series housing options. Optional plug-in jumpers allow for contact bridging and motor connection configurations.
This HARTING Heavy Duty Power Connector Insert is widely used in industrial power distribution, automation systems, manufacturing machinery, and electrical control cabinets. Its robust design and modular compatibility offer dependable performance in challenging electrical environments.
Explore more industrial power connectors and inserts in the Electronics & Electricals category on EnvMart for your specific application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert is rated for a current of 16A and a voltage capacity of 500V.
The contacts are made of copper alloy and are plated with silver to enhance conductivity and corrosion resistance.
It supports wire sizes ranging from 0.14 mm² to 2.5 mm².
This model is designed for panel mounting with an M3 x 10 thread size for secure installation.
Yes, it is compatible with Han B, Han M, Han EMC, Han Easy Hood, and Han HPR housings.
It features a vibration proof design, which enhances its durability and operational stability in harsh environments.
It employs cage clamp terminations, allowing for quick and easy wiring without the need for additional tools.
This model has 16 contacts arranged in two rows.
The connector is designed for straight orientation usage.
It is widely used in industrial power distribution, automation systems, manufacturing machinery, and electrical control cabinets.
Optional ES Press plug-in jumpers can be used to bridge contacts or implement star and delta motor connections.
The country of origin for this connector insert is Germany.
