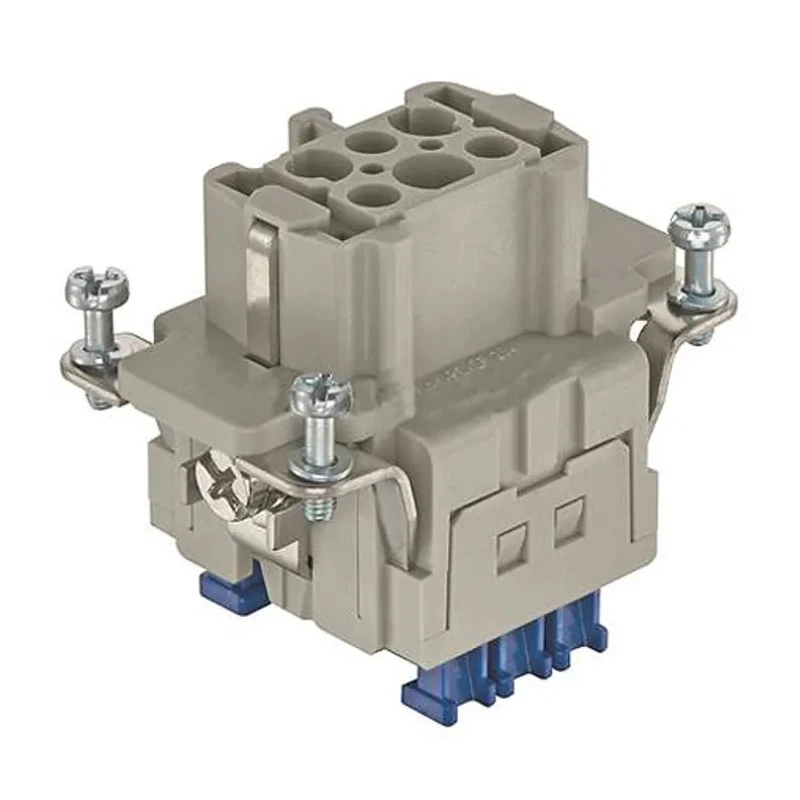

HARTING Heavy Duty Power Connector Insert 16A Han ES Press Series Female 6 Contacts 09330062748
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han ES Press |
| Thread Size | M3 x 10 |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 6 |
| Contact Plating | Silver |
| Number of Contacts | 6 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Rated for 16A current ensuring stable power delivery.
- Panel mount design with 6 contact points arranged in 2 rows.
- Cage clamp terminations enable quick and tool-free wiring.
- Compatible with a wide range of hoods and housings in the Han ES Press modular system.
- Silver plated copper alloy contacts for enhanced conductivity and vibration resistance.
- Accepts wire sizes ranging from 0.14 mm² to 2.5 mm² for versatile applications.
- Designed with a vibration-proof construction to maintain secure connections.
- Suitable for industrial, electronic, and power distribution use cases.
Product Description
HARTING 09330062748 Heavy Duty Power Connector Insert is a female connector designed to handle a current rating of 16A within the Han ES Press series. It features a panel mount type with 6 contacts arranged in 2 rows, operating at a voltage of 500V. This component is essential for industrial and electronic applications requiring reliable power connections.
The connector uses cage clamp terminations which provide efficient, quick wiring without the need for additional tools. Its vibration-proof design ensures stable performance in demanding environments. The contacts are made of copper alloy plated with silver to ensure increased conductivity and durability.
This insert accepts wire sizes from 0.14 mm² to 2.5 mm² and is equipped with an M3 x 10 thread size, making it compatible with a variety of installation setups. Optional ES Press plug-in jumpers can be used for bridging contacts and implementing Star and Delta Motor connections.
Compatible with Han B, Han M, Han EMC, Han Easy Hood, and Han HPR hoods and housings, this connector offers versatile installation options. Its reliable construction and adherence to high manufacturing standards make it suitable for industrial, laboratory, manufacturing, and electrical distribution applications.
Rated 16A current for stable electrical performance. Six contacts in a two-row pole format for compact and efficient connections. Cage clamp termination design allows quick and tool-free wiring. Vibration proof construction for secure and reliable connections.
Silver plated copper alloy contacts ensure excellent conductivity. Wire size compatibility from 0.14 mm² to 2.5 mm² for diverse wiring needs. Panel mount installation type with M3 x 10 thread size. Supports use of plug-in jumpers for flexible motor connection configurations.
Designed and manufactured in Germany with quality controls. Explore HARTING series and power connector inserts on EnvMart for comprehensive industrial connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a current rating of 16A, ensuring stable power delivery for various applications.
The voltage rating for this model is 500V, making it suitable for high-voltage applications.
It features 6 contacts arranged in 2 rows, providing efficient connections.
This model uses cage clamp terminations, allowing for quick and tool-free wiring.
It accepts wire sizes ranging from 0.14 mm² to 2.5 mm², accommodating diverse wiring needs.
This connector is designed for panel mount installation, providing flexible integration options.
The contacts are made of copper alloy and are silver plated to enhance conductivity and durability.
Yes, it features a vibration-proof construction, ensuring secure connections in demanding environments.
It is equipped with an M3 x 10 thread size, compatible with various installation setups.
This model is compatible with Han B, Han M, Han EMC, Han Easy Hood, and Han HPR hoods and housings.
It is suitable for industrial, electronic, and power distribution applications, providing reliable power connections.
It is designed and manufactured in Germany, adhering to high manufacturing standards.
