TE Connectivity M22759 Series White Hook Up Wire 20 AWG 19 x 32 AWG Core Strands 100 m Ethylene M22759/34-20-9

TE Connectivity M22759/34-20-9 Hook Up Wire is engineered for demanding commercial and military aerospace or ground system applications where harsh environmental conditions prevail. Featuring a white ethylene tetrafluoroethylene (ETFE) jacket, this wire provides excellent resistance to chemical exposure and electrical arc tracking, ensuring reliable performance at temperatures ranging from -65°C to 150°C.

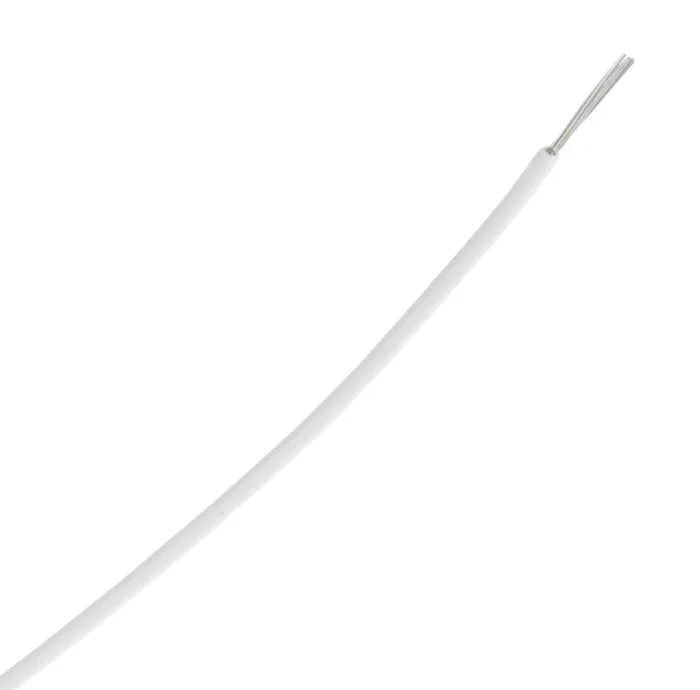

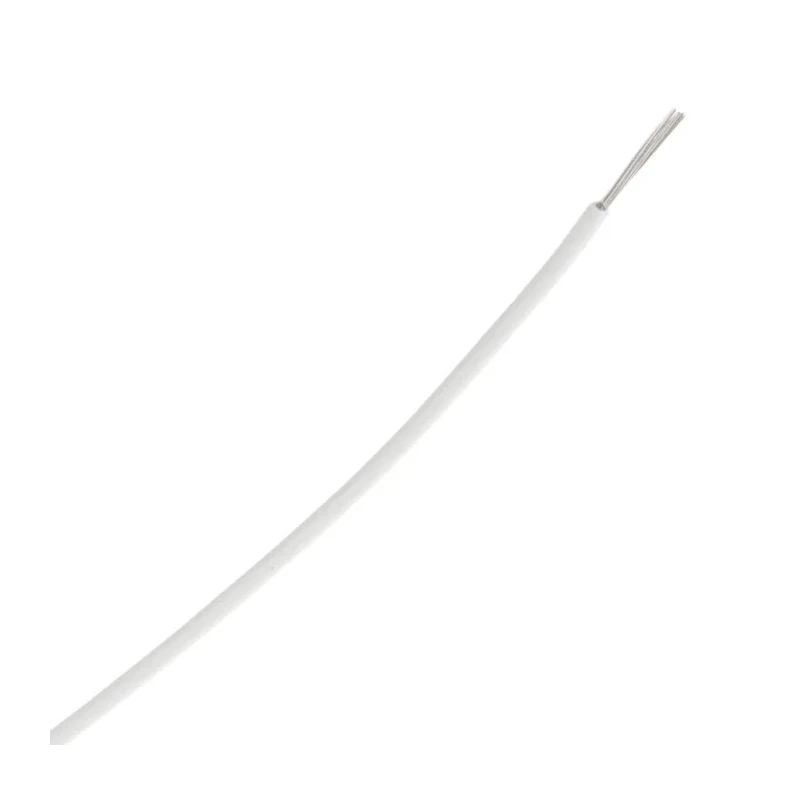

The 20 AWG wire contains 19 strands of 32 AWG tin-plated copper conductors, providing superior flexibility and conductivity. Its compact diameter of 1.47 mm allows for efficient wiring in constrained spaces typical in aerospace and electronic systems.

Designed to operate at a maximum voltage of 600V AC, the M22759 wire offers tough physical characteristics with cross-linked insulation that enhances its durability and safety features. Despite being marked as MIL-SPEC product, the wire is not currently qualified by the Qualifying Agency and is subject to specific customer disposition under NAVAIR guidelines.

The low smoke and corrosive gas generation properties add to its suitability for critical applications demanding high safety standards. This wire is widely used in industrial, aerospace, laboratory, and electronic control environments.

Small diameter white hook-up wire with durable ETFE jacket. Operates at a maximum temperature of 150°C and minimum of -65°C. Rated voltage of 600V AC suitable for aerospace and military-grade applications. Tough, chemical resistant, and low smoke insulation ensures safety in harsh environments.

Constructed from stranded tin-plated copper conductor providing excellent conductivity. Cross-linked ETFE insulation offers arc resistance and mechanical strength. Ideal for commercial and military aerospace or ground system wiring applications.

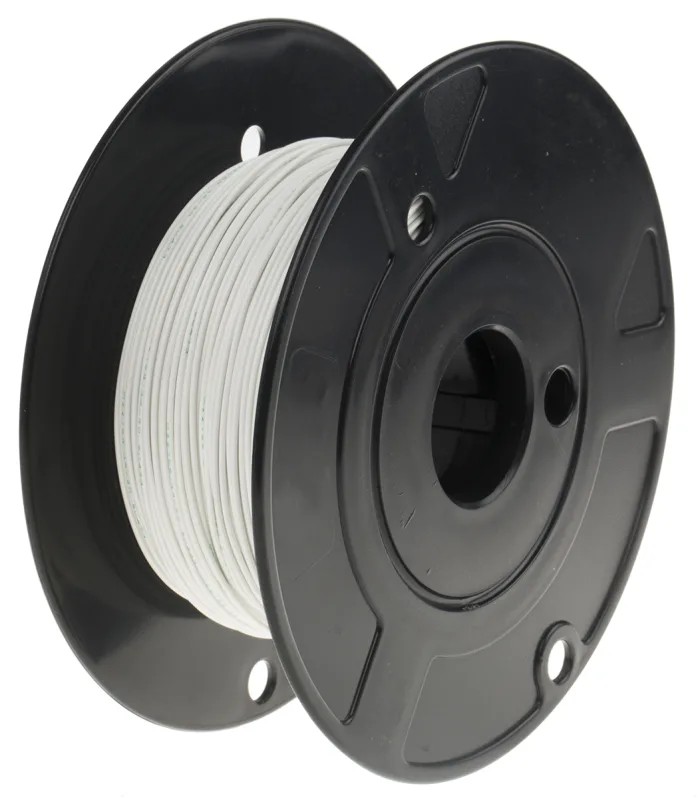

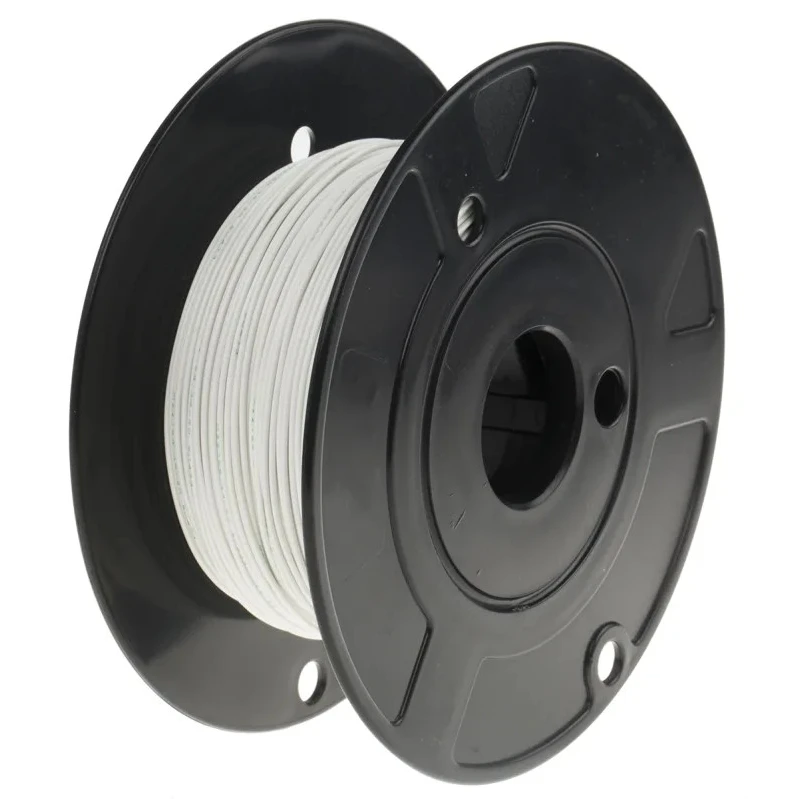

Complies with M22759 series specifications but is not qualified under certain MIL-SPEC lists as noted by NAVAIR release. Set contains 1 reel of 100 meters of white Hook Up Wire. Explore our comprehensive range of professional electrical wiring and cables at EnvMart for reliable and certified industrial supplies.
