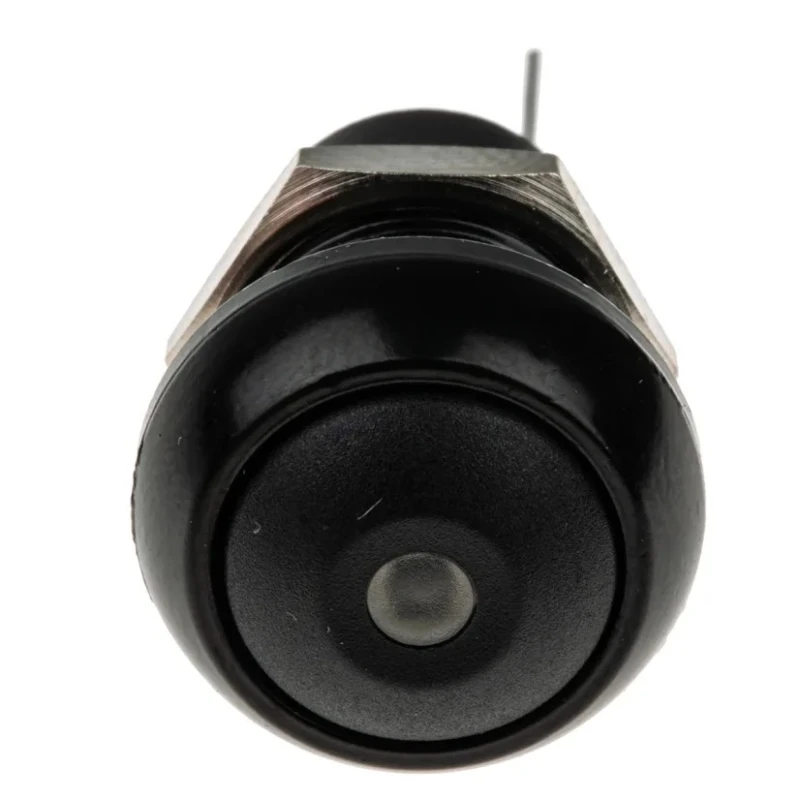

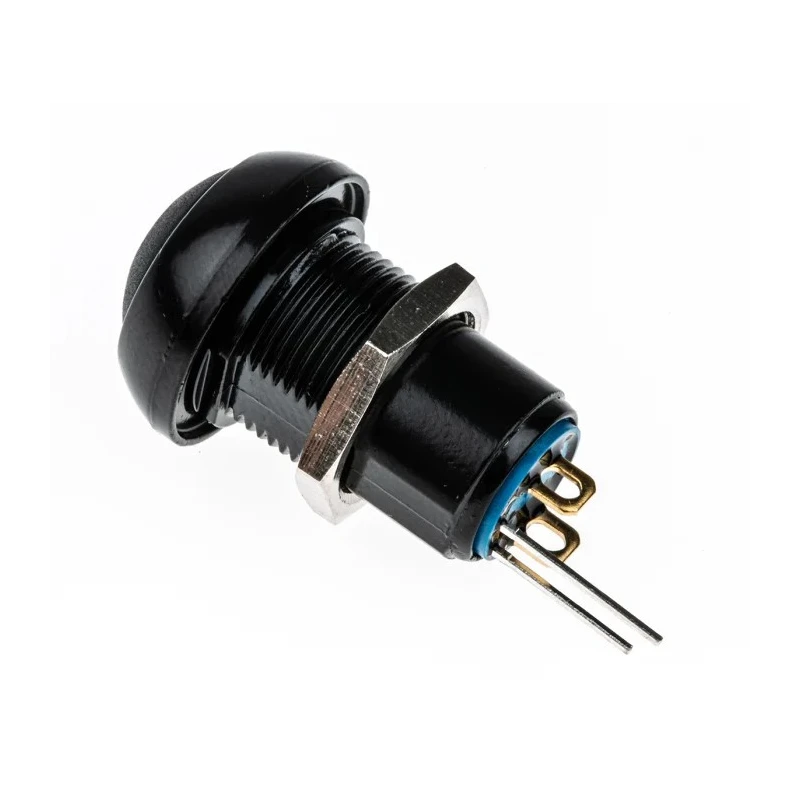

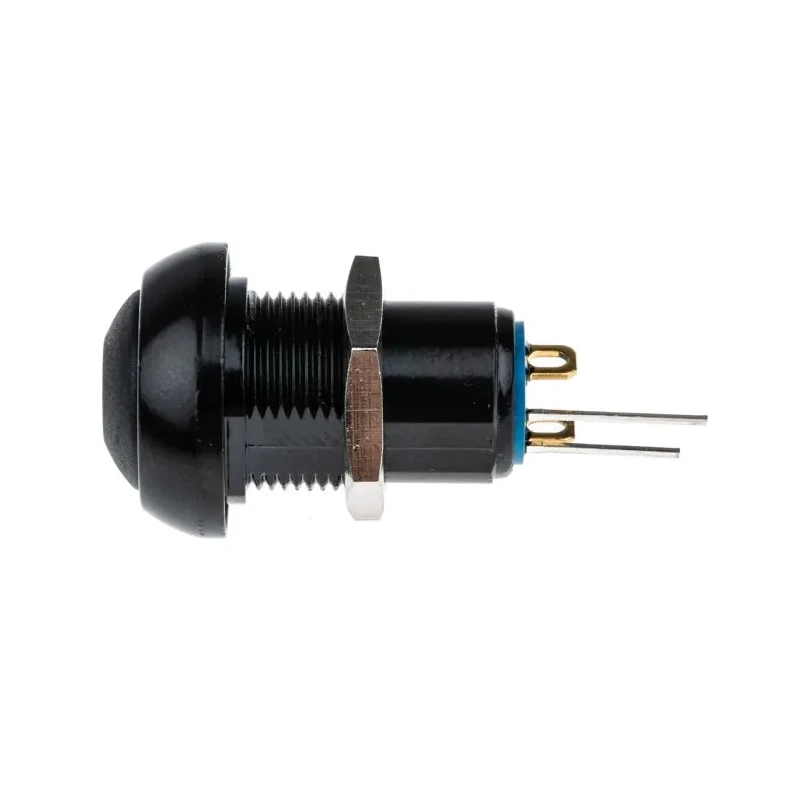

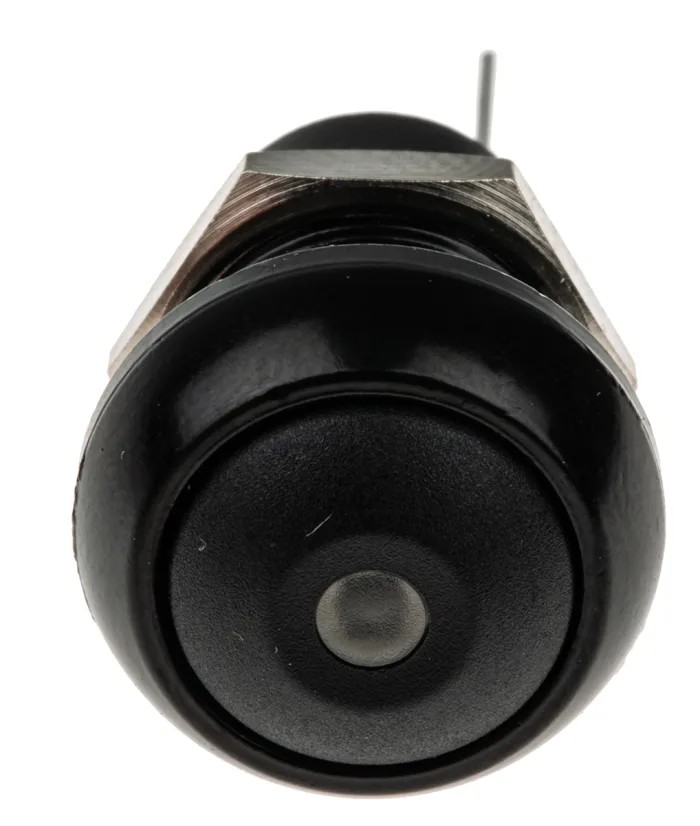

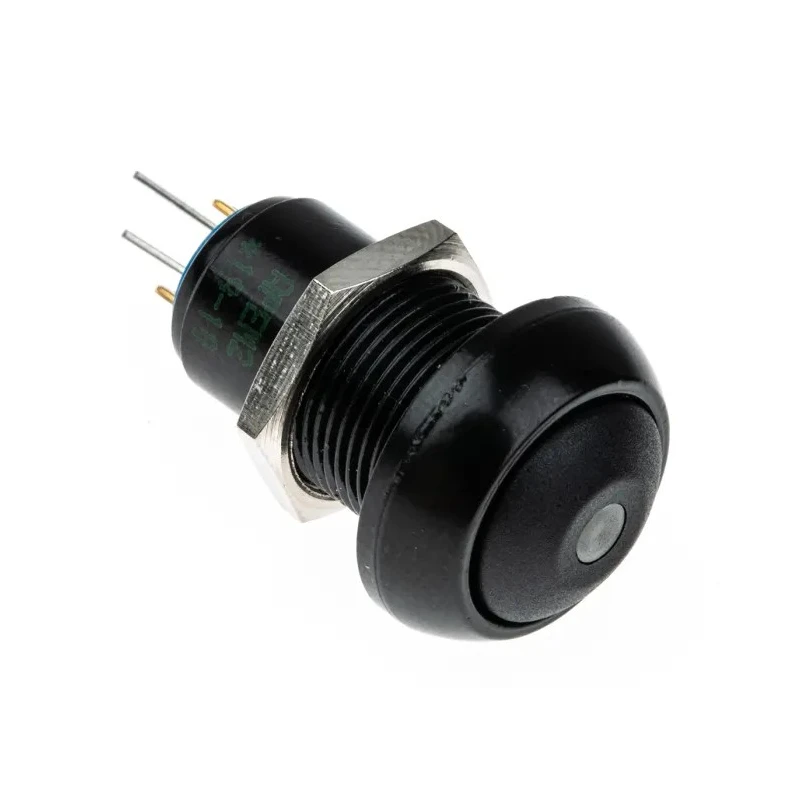

APEM IP Series Illuminated Miniature Push Button Switch, Latching, Panel Mount, 13.6 mm Cutout, SPST, Green LED IPR1SAD2LOG
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 16mm |
| Model | IPR1SAD2LOG |
| IP Rating | IP67 |
| Width | 17.5mm |
| Mount Type | Panel |
| Series | IP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | Off-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Switch Operation | Latching |
| Actuator Colour | Black |
| Actuator Style | Plunger |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- The actuator is black with a plunger style for reliable operation.
- It features a green LED indicator and is illuminated for easy status visibility.
- This switch has an IP67 rating, offering excellent protection against dust and water ingress.
- Rated for 250 V AC contact voltage with a maximum contact current of 5 A.
- Operating temperature ranges from -40°C to 85°C ensuring suitability for harsh industrial environments.
- Terminals are epoxy sealed to prevent flux ingress during soldering.
- Complies with RoHS standards ensuring environmental safety.
Product Description
APEM IPR1SAD2LOG is an IP Series illuminated miniature push button switch designed for latching operation and panel mounting applications. The switch requires a 13.6 mm panel cutout and has a single-pole, single-throw (SPST) contact configuration ideal for control and signaling circuits in industrial and automation settings.
The black plunger actuator provides tactile feedback and is illuminated with a green LED to clearly indicate switch status. This IP67-rated switch is dust-tight and protected against water immersion, making it suitable for harsh environments including manufacturing facilities, industrial machinery control panels, and outdoor electrical equipment.
Operating reliably over a broad temperature range of -40°C to 85°C, it supports a contact AC voltage of 250 V and a contact current up to 5 A. Epoxy-sealed solder terminals protect against flux ingress during soldering, enhancing durability and reliability. Compliant with RoHS directives, this product aligns with environmental standards.
The actuator color is black with a plunger style for ease of use. Illumination by green LED aids in clear operational indication. The switch operation is latching, suited for control applications requiring state retention.
Epoxy sealed terminals enhance soldering resilience. IP67 rating ensures ingress protection for demanding industrial environments. Compact dimensions aid in panel integration. Suitable for electrical control, automation, and signaling tasks.
Manufactured in France, ensuring high quality standards.
This miniature Push Button Switch is ideal for industrial electrical panels, automated machinery interfaces, and process control systems requiring robust and illuminated switching solutions. For reliable panel mounting with a high ingress protection rating, the APEM IP Series IPR1SAD2LOG is a proven choice.
Explore our wide range of switch solutions and electrical components on EnvMart to match your specific industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a single-pole, single-throw (SPST) contact configuration, suitable for control and signaling circuits.
It has an IP67 rating, providing excellent protection against dust and water ingress, making it suitable for harsh environments.
The dimensions of the switch are 16 mm in height and 17.5 mm in width, with a required panel cutout size of 13.6 mm.
The maximum contact current for this model is 5 A, which allows for reliable operation in various applications.
It operates reliably over a temperature range from -40°C to 85°C, making it suitable for harsh industrial conditions.
The switch is equipped with solder terminals that are epoxy sealed to prevent flux ingress during soldering, enhancing reliability.
The switch features a green LED indicator, which provides clear visibility of the switch status.
This model operates as a latching switch, which is designed to retain its state until manually changed.
This push button switch is manufactured in France, ensuring adherence to high quality standards.
The contact AC voltage rating for this switch is 250 V AC, allowing it to be used in various electrical applications.
The APEM IPR1SAD2LOG complies with RoHS standards, ensuring it meets environmental safety requirements.
The actuator is a black plunger style, providing tactile feedback for reliable operation.
