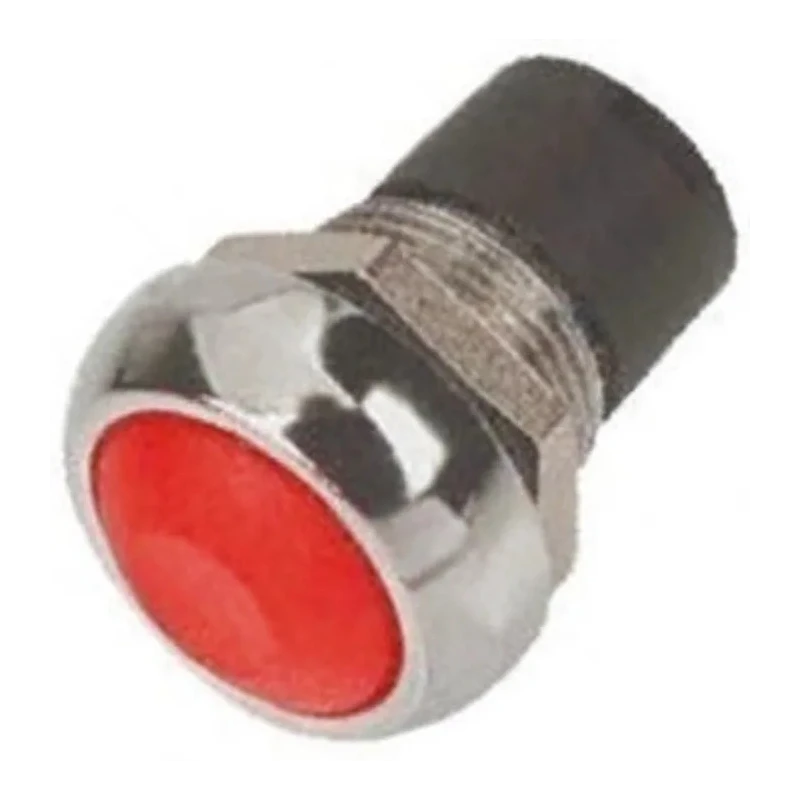

APEM IP Series Illuminated Miniature Push Button Switch Momentary Panel Mount 13.6 mm Cutout SPST IP67 IPR3SAD6101
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 16mm |
| Model | IPR3SAD6101 |
| IP Rating | IP67 |
| Width | 17.5mm |
| Mount Type | Panel |
| Series | IP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | NC, NO |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Actuator Style | Plunger |
| Switch Contact Current | 5A |
| Saia-Burgess Push Button Switch, Momentary, Panel Mount, IP67Brand | Saia-Burgess |
Key Features
- The actuator color is red for easy identification.
- The switch features IP67 environmental protection rating.
- Cutout size for panel mounting is 13.6 mm diameter.
- Switch contacts support a 5 A alternating current.
- Epoxy sealed terminals prevent flux ingress during soldering.
- Operates reliably from -40°C to 85°C ambient temperature.
- Illuminated design provides clear visual status indication.
- Complies with RoHS environmental standards.
Product Description
APEM IPR3SAD6101 is an illuminated miniature push button switch designed for industrial and electronic panel applications. It offers momentary switch operation with SPST contact configuration, suited for precise control tasks requiring single pole single throw functionality.
Featuring a red plunger-style actuator, this switch is panel mounted requiring a 13.6 mm cutout size. The terminal connections use solder type contacts sealed with epoxy to prevent flux ingress and enhance reliability. The robust design achieves an IP67 ingress protection rating, making it suitable for harsh environments including industrial automation, instrumentation, and control systems.
This switch supports a maximum contact current capacity of 5 A AC, and can operate in temperatures ranging from -40°C to 85°C. Its illumination capability enables visual status feedback, increasing operator awareness in electrical cabinets or control panels.
Produced in France, the IPR3SAD6101 model complies with the RoHS directive ensuring reduced hazardous substances content. The compact dimensions of 16 mm height and 17.5 mm width facilitate integration into dense control assemblies.
The actuator color is red for easy identification. The switch features IP67 environmental protection rating. Cutout size for panel mounting is 13.6 mm diameter. Switch contacts support a 5 A alternating current. Epoxy sealed terminals prevent flux ingress during soldering.
Operates reliably from -40°C to 85°C ambient temperature. Illuminated design provides clear visual status indication. Complies with RoHS environmental standards.
This switch is ideal for industrial automation, electrical panel assemblies, HVAC control panels, laboratory instruments, and manufacturing equipment. Its robust electrical ratings and ingress protection ensure durability in challenging operating conditions.
Explore more Push Button Switches and other industrial electrical components with EnvMart for reliable automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cutout size for panel mounting is 13.6 mm in diameter.
This model supports a maximum contact current capacity of 5 A AC.
It operates reliably within a temperature range of -40°C to 85°C.
The switch features a momentary operation with SPST contact configuration.
It has an IP67 ingress protection rating, making it suitable for harsh environments.
The actuator style is plunger, and the color is red for easy identification.
The switch uses solder type terminals that are epoxy sealed to prevent flux ingress during soldering.
This switch complies with RoHS environmental standards, ensuring reduced hazardous substances content.
The dimensions are 16 mm in height and 17.5 mm in width.
It is suitable for industrial automation, electrical panel assemblies, HVAC control panels, laboratory instruments, and manufacturing equipment.
The IPR3SAD6101 is produced in France.
This model requires panel mounting.
