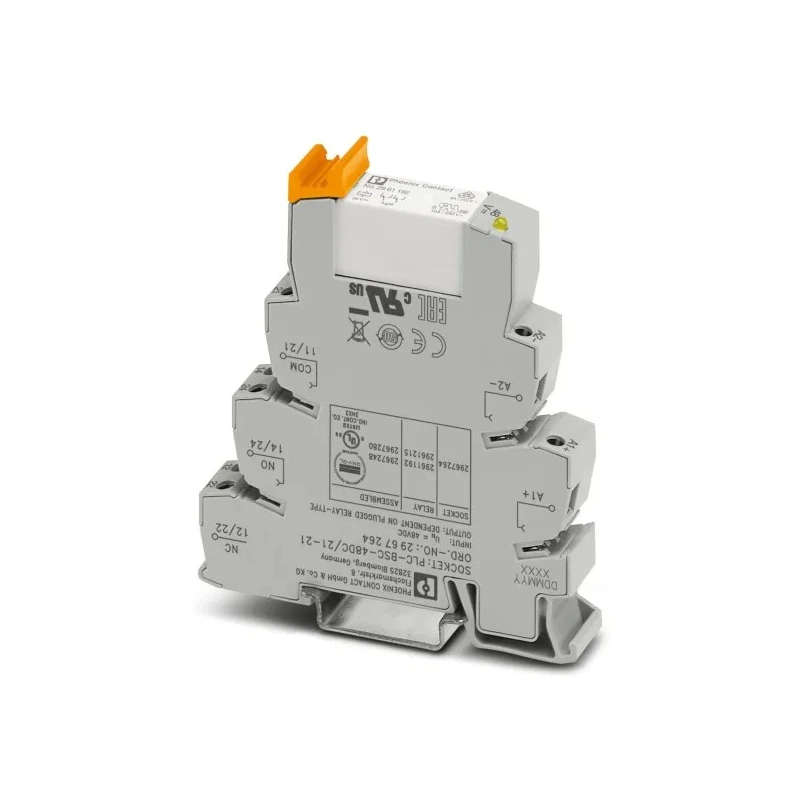

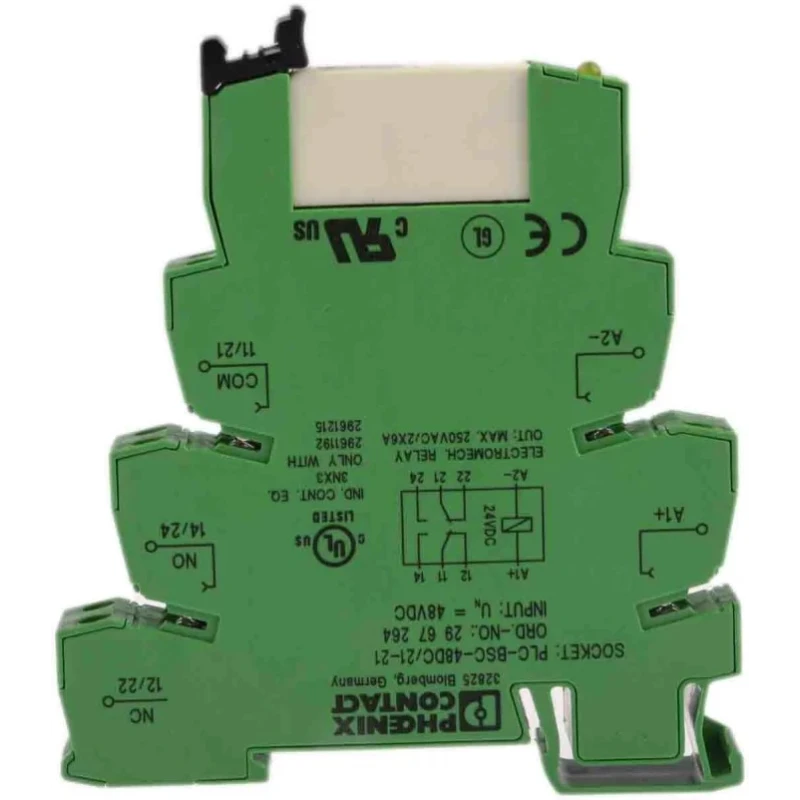

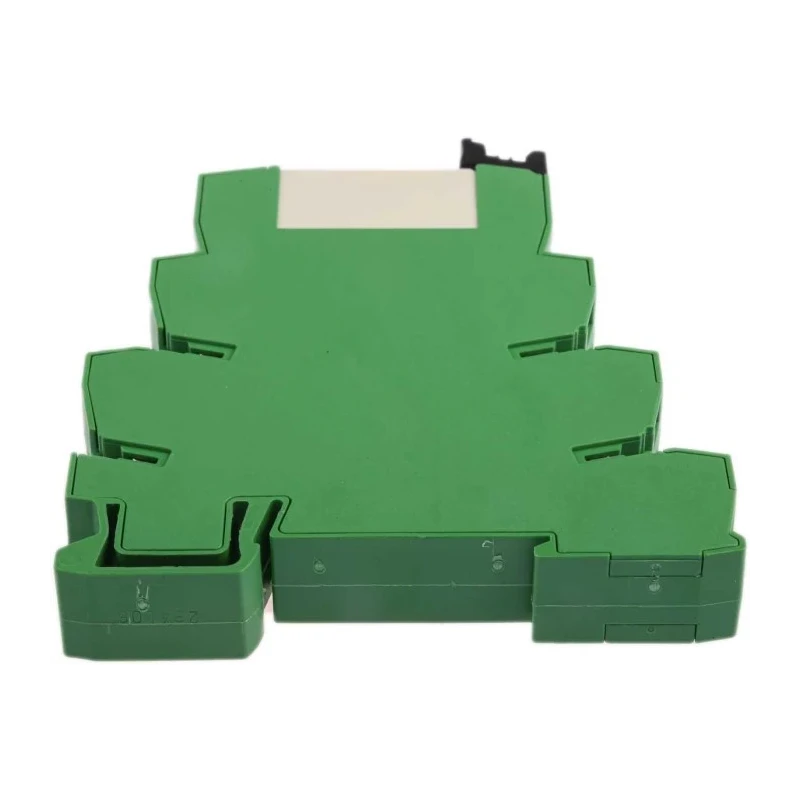

Phoenix Contact Electromechanical Interface Relay PLC-RSC- 48DC/21-21, DIN Rail Mount, 48V DC Coil, DPDT, 6A, 20mA 2967248
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Phoenix Contact |
| Height | 94mm |
| Length | 80mm |
| Model | 2967248 |
| Width | 14mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | PLC-RSC- 48DC/21-21 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Standards/Approvals | EAC, UL |
| Coil Voltage | 48V dc |
| Coil Current | 20mA |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
Key Features
- Compact dimensions of 80 x 14 x 94 mm allow for easy integration into automation panels.
- Rated coil current of 20 mA with efficient energy consumption for continuous operation.
- Can switch currents up to 6A and voltages up to 250V AC or DC.
- Silver alloy contacts ensure durable and reliable electrical conduction.
- Suitable for industrial automation, machinery control, and PLC interfacing applications.
- Operates reliably across a temperature range from -40 °C to 60 °C.
- Equipped with screw terminals for secure conductor connections from 0.14 mm² to 2.5 mm².
- Provides IP20 protection rating, shielding against solid foreign objects.
Product Description
Phoenix Contact 2967248 Electromechanical Interface Relay PLC-RSC- 48DC/21-21 is a robust DIN rail mount relay featuring a 48V DC coil voltage and DPDT contact configuration designed for industrial and automation applications.
This device offers reliable switching capabilities with a coil current of 20 mA and contact ratings of 6A at both 250V AC and 250V DC, making it suitable for a wide range of electrical system functions. Its compact form factor (80 mm length, 14 mm width, and 94 mm height) allows seamless installation in control panels where space is limited.
The relay contacts are made from silver alloy, delivering superior electrical conductivity and durability for extended operational life. It operates efficiently within a wide temperature span from -40 °C to +60 °C, and meets IP20 protection standards for safeguarding against solid objects.
Secure conductor connections are facilitated by screw terminals compatible with rigid wiring from 0.14 mm² to 2.5 mm². The built-in reverse polarity protection diode safeguards against voltage spikes, enhancing the device's reliability and safety during operation.
Industrial use cases for this interface relay include automation system control panels, machinery process control, and seamless integration with PLC frameworks. The component is rated for up to 30 million switching cycles, confirming its suitability for high-demand industrial environments.
Compact dimensions suitable for DIN rail installations. Efficient 48V DC coil operation with low current consumption. High current and voltage switching capability with DPDT contacts. Robust silver alloy contact material for extended durability.
Wide ambient operating temperature range from -40 °C to 60 °C. IP20 protection against solid foreign objects. Reverse polarity protection diode incorporated for safety. Screw terminal connections compatible with various conductor sizes.
Rated for up to 30 million operational cycles.
Explore a comprehensive range of Interface Relays and related automation components in the Electronics & Electricals category at EnvMart for all industrial and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 48V DC.
It can switch currents up to 6A.
The dimensions are 80 mm in length, 14 mm in width, and 94 mm in height.
This model features a Double Pole Double Throw (DPDT) contact configuration.
It operates reliably across a temperature range from -40 °C to +60 °C.
The contacts are made from silver alloy, providing good electrical conductivity.
It is equipped with screw terminals for secure conductor connections.
The relay can switch voltages up to 250V AC and 250V DC.
It meets EAC and UL standards for safety and performance.
It is rated for up to 30 million switching cycles, suitable for high-demand environments.
It includes a built-in reverse polarity protection diode to safeguard against voltage spikes.
It is suitable for industrial automation, machinery control, and PLC interfacing applications.
