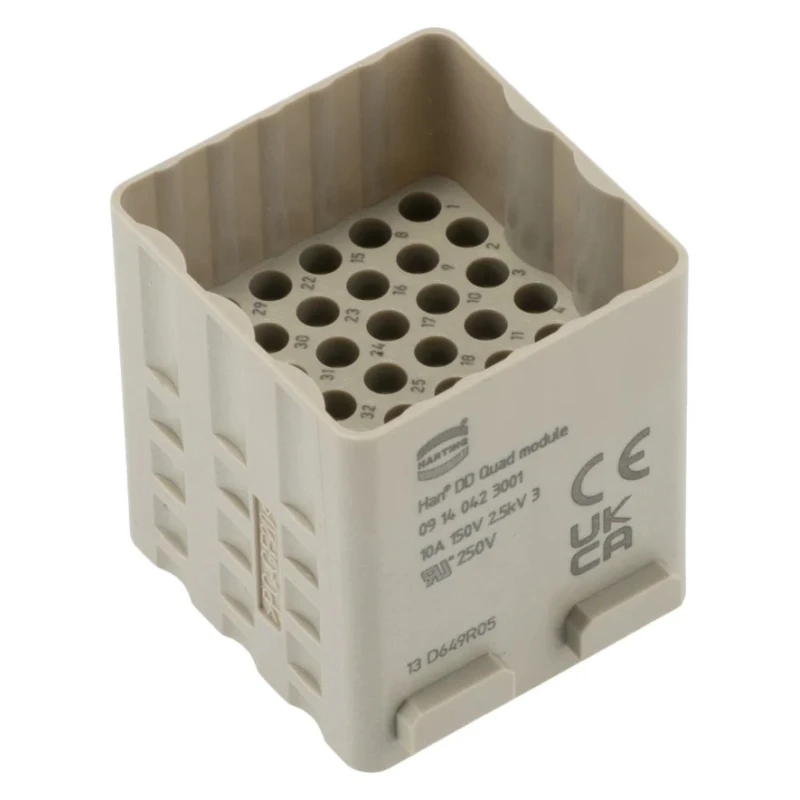

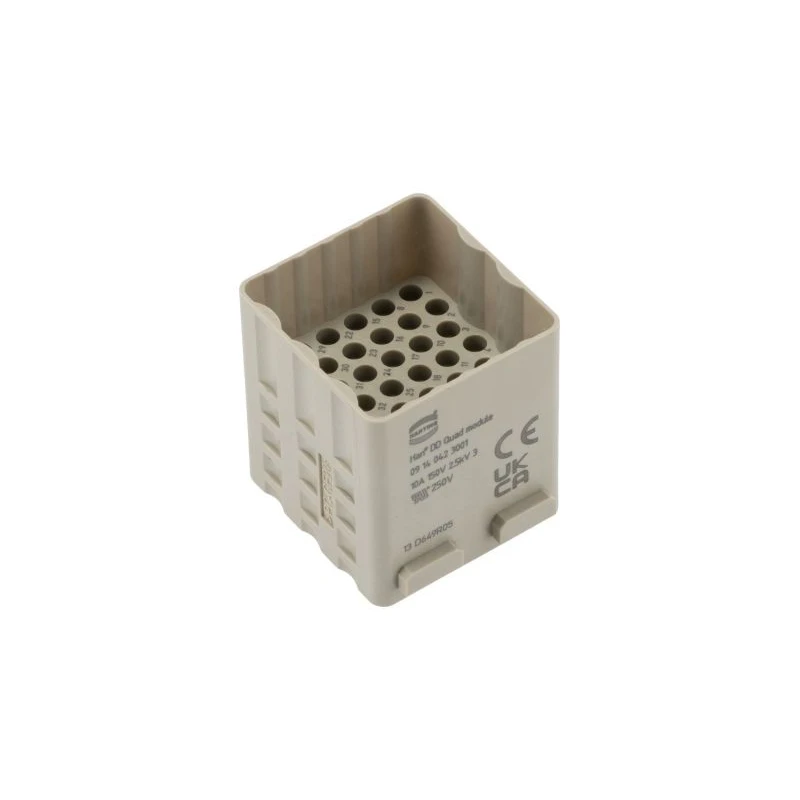

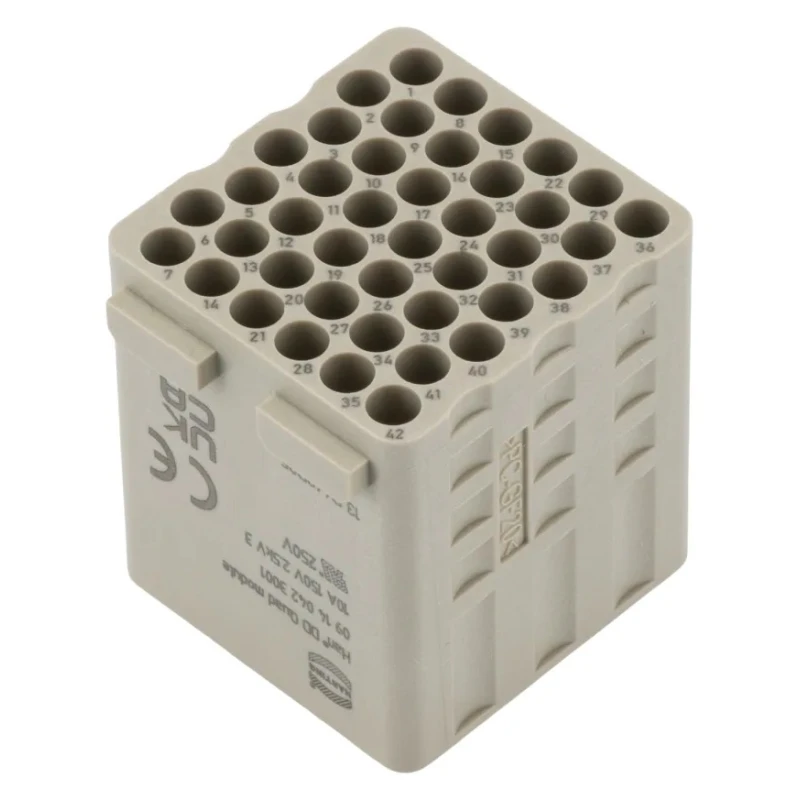

HARTING Heavy Duty Power Connector Module, 10A Current Rating, HAN Modular Series Male, 42 Contacts, 150V, Cable 09140423001

HARTING 09140423001 Heavy Duty Power Connector Module is engineered for demanding industrial installations requiring multi-contact power and signal connections. This male connector from the HAN Modular series features 42 contacts arranged in 7 rows, providing a compact yet high-density connection format.

Rated for continuous current up to 10A and operating voltage of 150V, it is ideal for low-voltage power distribution and mixed power/signal circuits in industrial, manufacturing, and transportation applications. The contact material, liquid crystal polymer (LCP), ensures excellent electrical performance and durability under vibration stresses, meeting IEC 61373 certification requirements.

The module is designed for cable mounting, enabling straightforward integration into cable harnesses rather than panel mounting, enhancing flexibility in wiring configurations. It accepts wire sizes ranging from 0.14 mm² to 2.5 mm², accommodating a variety of conductor gauges for versatile installation.

Typical applications include automation cabinets needing multiple power lines, electrical panels in rail vehicles or mobile machinery, and use within modular HAN assemblies for power delivery in control systems. Its straight orientation and male connector gender facilitate secure and reliable mating with corresponding female connectors in the system.

This connector module supports a current rating of 10A suitable for moderate power loads. Designed with 42 contacts arranged in 7 rows for high-density connection. Male connector orientation ensures secure mating with compatible receptacles.

Operates at 150V compatible with low-voltage power circuits. Built for cable mounting to integrate directly into cable harnesses. Contact material is LCP providing electrical stability and performance. Complies with IEC 61373 standard for vibration resistance in transport environments.

Accepts conductor wire sizes from 0.14 mm² up to 2.5 mm² accommodating fine to larger cables. Ideal for automation cabinets, rail and mobile equipment electrical panels. Suitable for modular configurations using HAN Modular assemblies.

Ensure connectors are not mated or unmated under electrical load, and use polarization to avoid incorrect connections. Explore more HARTING Heavy Duty Power Connector Modules and related industrial electronics components at EnvMart.
