Legrand 3-Pole DIN Rail Isolator Switch 160A IP55, 5.3 W Vistop Series

Free Delivery in India | Lowest Global Shipping Charges

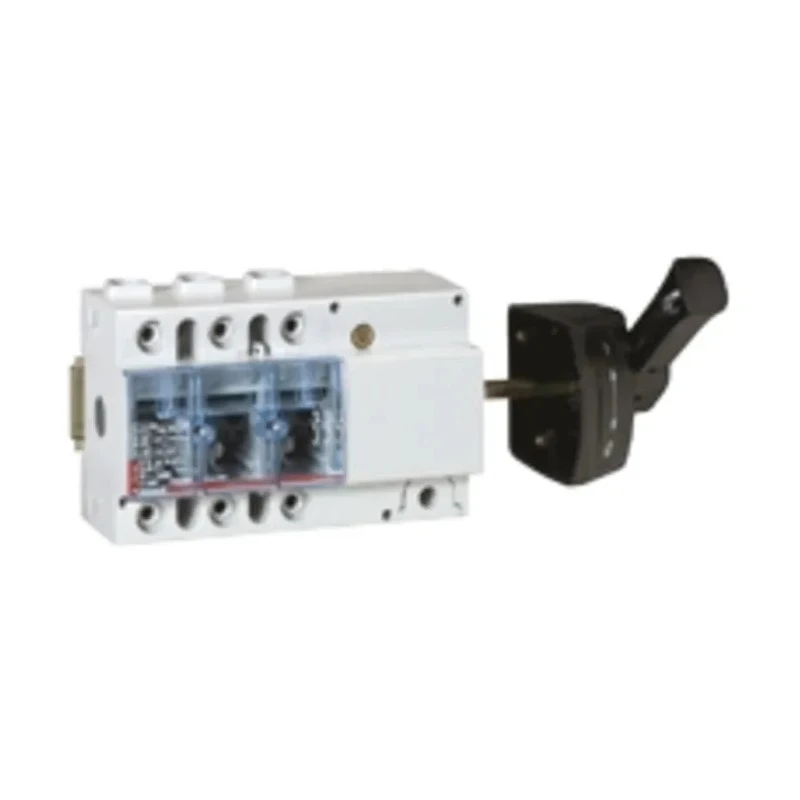

Legrand 3-Pole DIN Rail Isolator Switch 160A IP55, 5.3 W Vistop Series

Name: Legrand 3-Pole DIN Rail Isolator Switch 160A IP55, 5.3 W Vistop Series
Brand: Legrand
SKU: 184440
Price: 452.9 USD
Availability: InStock



Category Isolator Switch Brand Legrand Condition New

Specifications

Country of Origin	France
Brand	Legrand
Length	133mm
Model	IP55
Depth	60mm
IP Rating	IP55
Width	91mm
Mount Type	DIN Rail
Series	Vistop 100 - 125 - 160 A
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-5°C
Switching Current	160A
Terminal type	Screw
Electrical Phase	3
Handle Colour	Black
Number of Poles	3
Standards/Approvals	IEC, EN, VDE
Switching DC Voltage	250V dc
Switching AC Voltage	400V ac
Switching Power	5.3W

Key Features

Features a black handle with screw terminal connections.
Compatible with padlock for enhanced safety.
Operating temperature range is from -5°C to 70°C.
Supports 3 electrical phases and is DIN Rail mounted.
Complies with IEC, EN, and VDE standards for industrial use.
Auxiliary contacts are available for additional control functionality.
Designed for switching AC voltage up to 400V and DC voltage up to 250V.
Part of the Vistop 100 - 125 - 160 A series with visible load disconnection.

Product Description

Legrand 0 225 54 is a high-quality 3-Pole DIN Rail Isolator Switch designed for electrical installations requiring safe visible load disconnection. With a switching current capacity of 160A and an IP55 ingress protection rating, it ensures reliable operation in industrial, commercial, and manufacturing environments.

This isolator switch features a robust black handle and screw-type terminals for secure connections. It supports three-phase electrical systems and offers compatibility with padlocks to prevent unauthorized operation, enhancing equipment safety.

The device operates efficiently within a temperature range of -5°C to 70°C. It is crafted to meet international IEC, EN, and VDE standards, ensuring compliance and performance under demanding conditions. The switch provides a switching power of 5.3 W and accommodates AC voltage up to 400V and DC voltage up to 250V.

As part of the Vistop series, it includes visible load disconnection and positive contact action with a double-break load switching mechanism using self-cleaning contacts. Available in 3 and 4 pole versions, this model offers versatility with left- or right-hand external side handles and an optional front handle for ease of use. The housing is a one-piece design with cage terminals.

This isolator switch is ideal for use in industrial automation, electrical distribution panels, HVAC systems, manufacturing plants, and laboratory power control applications. Its compact dimensions (Length: 133mm, Width: 91mm, Depth: 60mm) facilitate easy mounting on DIN rails.

Features a black handle with screw terminal connections. Compatible with padlock for enhanced safety. Operating temperature range is from -5°C to 70°C. Supports 3 electrical phases and is DIN Rail mounted. Complies with IEC, EN, and VDE standards for industrial use.

Auxiliary contacts are available for additional control functionality. Designed for switching AC voltage up to 400V and DC voltage up to 250V. Part of the Vistop 100 - 125 - 160 A series with visible load disconnection.

Choose Legrand Isolator Switches for trusted electrical safety in various industrial sectors. Explore more electrical switchgear products on EnvMart for your industrial and commercial electrical needs.
