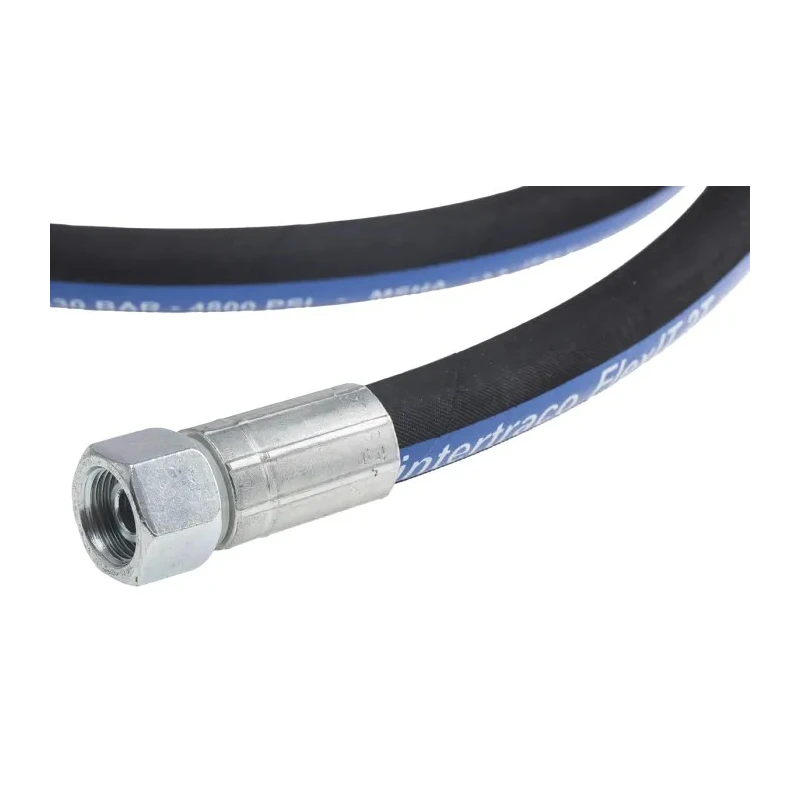

RS PRO Synthetic Rubber Hydraulic Hose Assembly 1.46m Length 330 bar Max Pressure 3/8 inch Female to Female 110-2007

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Synthetic Rubber Hydraulic Hose Assembly 1.46m Length 330 bar Max Pressure 3/8 inch Female to Female 110-2007

Name: RS PRO Synthetic Rubber Hydraulic Hose Assembly 1.46m Length 330 bar Max Pressure 3/8 inch Female to Female 110-2007
Brand: RS PRO
SKU: 184093
Price: 56.49 USD
Availability: InStock



Category Hydraulic Hose Assembly Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Brand	RS PRO
Operating Temperature	-40 °C to +100°C
Maximum Operating Pressure	330 bar
Model	110-2007
Cover Material	Synthetic Rubber
Overall Length	1.46m
Connector	Female to Female
Maximum Operating Temperature	100°C
Inside Diameter	9.53mm
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Connection Size A	3/8 in
Connection Standard A	G
Connection Gender A	Female
Connection Type A	Threaded
Inner Hose Material	Synthetic Rubber
Reinforcing Material	Steel

Key Features

Feature synthetic rubber inner hose and outer cover for durability.
Reinforced with high tensile steel wire for high-pressure strength.
Operates safely within temperatures from -40°C to 100°C.
Flexible design suitable for mineral oils, lubricating oils, water glycol and hydraulic fluids.
Compliant with RoHS standards ensuring environmental safety.
Not suitable for hydraulic cylinders and pumps above 700 bar pressure.
Designed for medium-pressure hydraulic applications requiring reliable fluid conveyance.
Manufactured in Italy with strict quality control.

Product Description

RS PRO 110-2007 Synthetic Rubber Hydraulic Hose Assembly is engineered for industrial hydraulic fluid transfer applications requiring robust, flexible, and reliable hose assemblies. This product features a 1.46 meter overall length with female to female 3/8 inch threaded connections on both ends, compliant with standard G thread connection.

The hose assembly consists of a synthetic rubber inner hose and outer cover reinforced with high tensile steel wire, giving it flexibility and strength to withstand pressures up to 330 bar. It is suitable for use with mineral oils, lubricating oils, water glycol, water oil emulsions, and standard hydraulic fluids.

Operating temperature ranges from -40°C to +100°C enable this hose to be used in varied industrial environments including fluid power systems, construction machinery, agricultural equipment, and manufacturing hydraulics. The assembly is compliant with the RoHS environmental directive, ensuring reduced hazardous substances in materials.

Applications include medium-pressure hydraulic systems where secure connections are necessary, but it is not designed for high-pressure hydraulic cylinders or pumps rated above 700 bar. The crimped female to female fittings ensure a leak-proof, durable connection to other components within hydraulic systems.

Flexible Hydraulic Hose Assembly made with synthetic rubber and steel reinforcement. Corrosion-resistant steel wire braid for pressure endurance. Crimped female-to-female threaded connections for easy installation. Suitable for various hydraulic fluids including mineral and lubricating oils.

Wide operating temperature range from -40°C to 100°C. Complies with RoHS environmental standards. Medium pressure hydraulic applications suitability. Manufactured to high quality standards in Italy.

Ensure compliance with hydraulic system pressure requirements before use. Explore the extensive range of hydraulic hose assemblies available on EnvMart for various industrial and mechanical applications.
