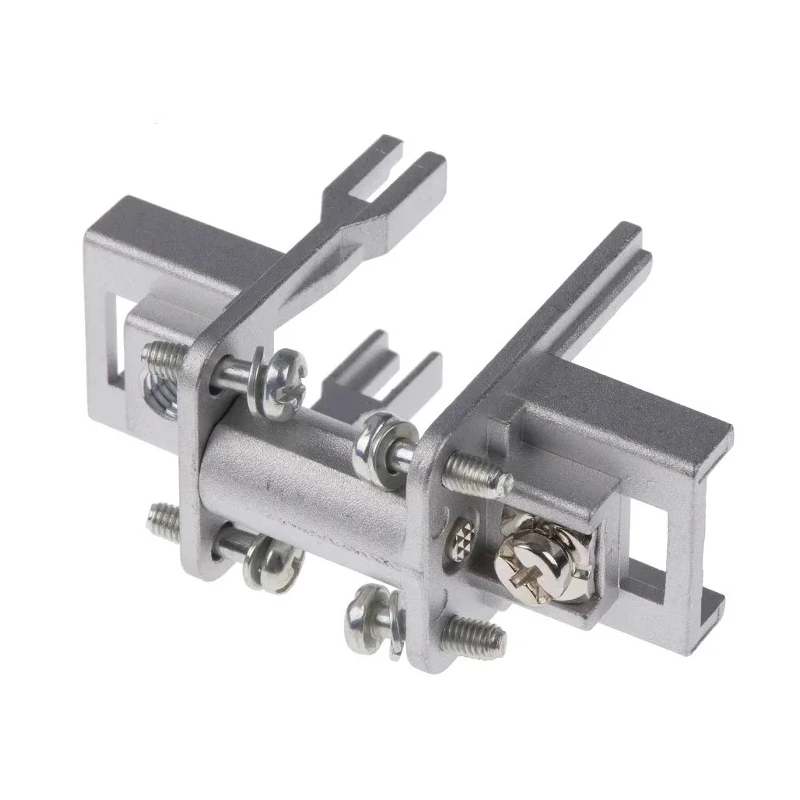

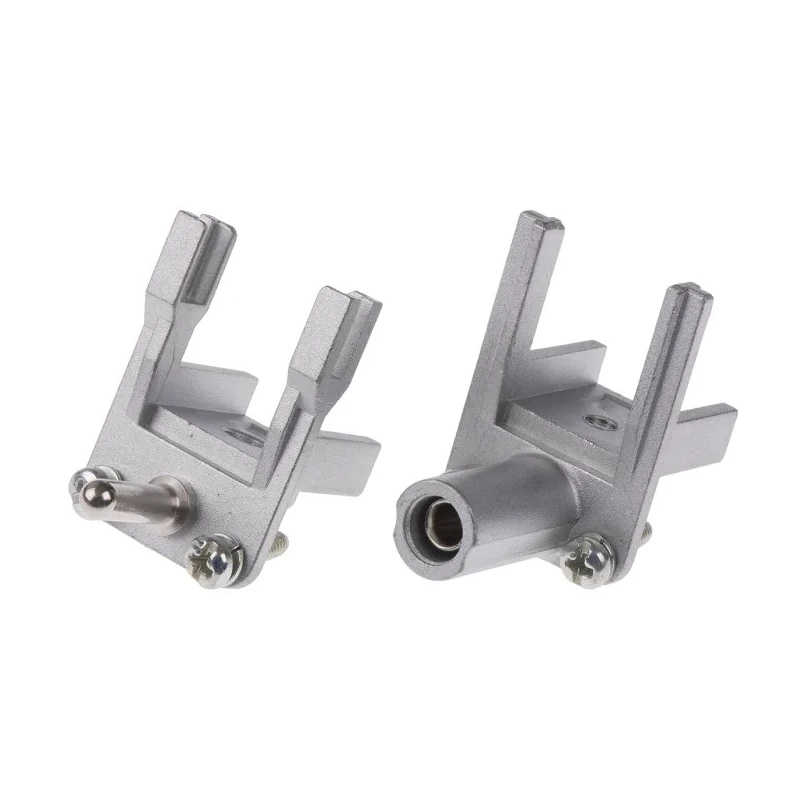

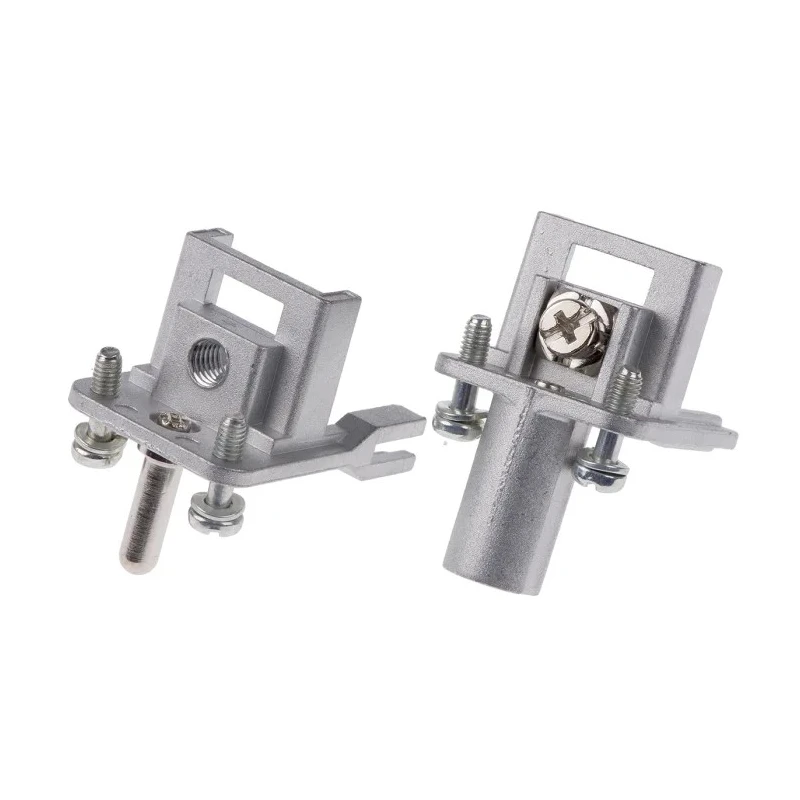

Harting Hood Frame HAN Modular Series 1 Way Die Cast Zinc Black 10B 09140000304

Harting 09140000304 hood frame from the HAN Modular Series is a 1 way die cast zinc accessory designed specifically for heavy duty power connectors. It is engineered for robust electrical connections in industrial, manufacturing, automation, and heavy machinery applications requiring modular and reliable connector assemblies.

This black-colored frame with size 10B offers a top cable entry angle, allowing practical and ergonomic wiring. Made from die cast zinc, it provides excellent mechanical strength, corrosion resistance, and long service life in harsh environments.

The frame accommodates wire sizes ranging from 4mm² up to 10mm², making it suitable for a wide range of power cable conductors. It supports a grounding system compliant with VDE standards and ensures secure mating with connectors to withstand over 500 mating cycles, improving durability and performance.

As part of the versatile Han Modular system, this hood frame enables flexible configurations with different insert modules and can be fitted into standard Han housings for power, signal, or pneumatic connections. Its compatibility with the Harting 10A Series ensures integration with existing systems.

This product is made in Germany, reflecting the high-quality manufacturing standards Harting is known for worldwide. It is ideal for use in industrial automation, control panels, electrical distribution, and power transmission setups.

The frame features a black color and size 10B configuration for optimized cable entry. It is constructed from die cast zinc, ensuring durability and strong protection. Designed for top cable entry angle to facilitate convenient wiring setups.

This frame supports a minimum wire size of 4mm² and a maximum of 10mm². Compatible with heavy duty power connectors in demanding industrial environments. The product originates from Germany, reflecting high manufacturing standards.

The frame is suitable for standard hoods and housings, providing flexible modular connectivity. It offers a grounding system compliant with VDE and mating cycles exceeding 500 for reliability.

Choose Harting hood frames from the HAN Modular Series for high-quality, modular connectivity solutions. Explore more Heavy Duty Power Connector Accessories and related Harting products in the Electronics & Electricals category at EnvMart for your industrial needs.
