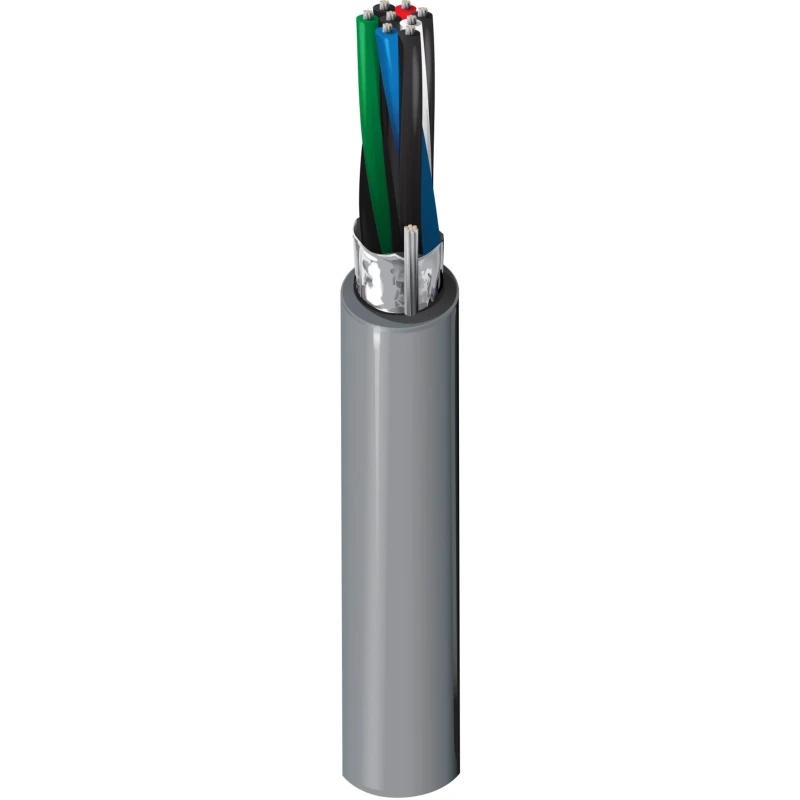

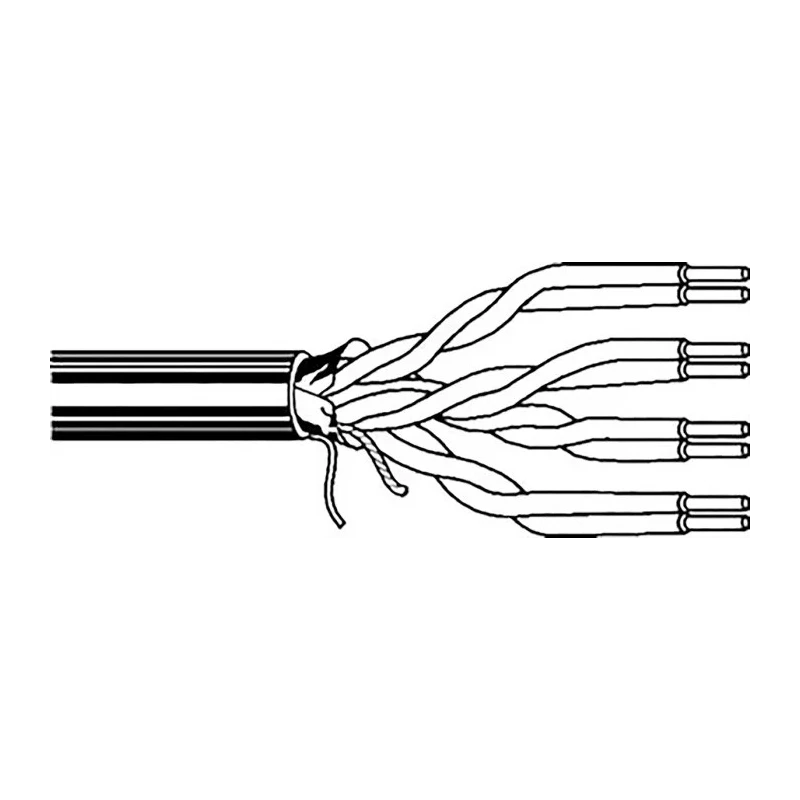

Belden 9504NH Series Data Cable 4 Pairs 8 Cores 0.2 mm² 500 m Silver Sheath Low Smoke Zero Halogen 9504NH.00500
Specifications
| Country of Origin | Netherlands |
|---|---|
| Voltage | 300V |
| Brand | Belden |
| CROSS SECTIONAL AREA | 0.2mm² |
| Model | 9504NH.00500 |
| Cable Length | 500m |
| Series | 9504NH |
| Outside diameter | 7mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 8 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Low Smoke Zero Halogen |
| Standards/Approvals | Euroclass Dca-s1 d1 a1 |
| Jacket Colour | Silver |
| Fire Behaviour | Flame Retardant, Low Smoke Zero Halogen (LSZH) |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 32AWG |
| Size of Strands | 32AWG |
| Number of Pairs | 4 |
Key Features
- Features a silver low smoke zero halogen (LSZH) outer sheath for enhanced safety.
- Constructed with stranded tinned copper conductors to ensure durability and conductivity.
- Compliant with Euroclass Dca-s1 d1 a1 standards for flame retardancy and low smoke emission.
- Operates reliably within a temperature range of -30°C to 80°C.
- Equipped with 7 x 32 AWG strands per conductor for flexibility and strength.
- Overall Beldfoil shield provides 100% coverage to minimize electromagnetic interference.
- Designed for both fixed and flexible installations in industrial and automation environments.
Product Description
Belden 9504NH.00500 data cable is a high-performance multicore cable tailored for EIA RS-232 and other data communication applications. It consists of 4 pairs (8 cores) of 0.2 mm² stranded tinned copper wires, each strand comprising 7 strands of 32 AWG wire. The cable length is 500 meters, covered by a silver low smoke zero halogen (LSZH) jacket that ensures minimal toxic fumes and smoke during fire incidents, complying with Euroclass Dca-s1 d1 a1 fire safety standards.
The cable features an overall Beldfoil shield offering 100% coverage, effectively reducing electromagnetic interference and crosstalk, which contributes to superior signal integrity in demanding industrial environments.
Rated for operation between -30°C and 80°C, the cable is suitable for a range of temperatures encountered in automation, instrumentation, and computer equipment settings. Its flame retardant and low smoke properties make it ideal for installations in enclosed spaces requiring enhanced safety measures.
This data cable is versatile for both fixed and flexible installations, supporting transmission accuracy and integrity essential in electrical and mechanical industries. Silver LSZH jacket enhances environmental and fire safety.
Stranded tinned copper conductors ensure excellent conductivity and flexibility. Meets strict Euroclass fire behaviour standards. Certified operation voltage of 300V supports various data communication setups. Designed to minimize installation issues with specified minimum bend radius and pulling tension guidelines.
Typical applications include automation system instrumentation, data transfer for computer and electronic equipment, and connections in environments demanding low smoke emissions and flame retardancy.
EnvMart offers this specialized Data Cable as part of a comprehensive selection of industrial and electrical cables, supporting diverse professional requirements across manufacturing, construction, and commercial sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of the Belden 9504NH Series Data Cable is 80°C.
This data cable is rated for a voltage of 300V.
The cable consists of 8 cores, arranged in 4 pairs.
The conductors are made from stranded tinned copper wire, which ensures good conductivity and flexibility.
The Belden 9504NH Series Data Cable has a total length of 500 meters.
The outer jacket is made from Low Smoke Zero Halogen (LSZH) material, which enhances safety by minimizing toxic fumes during fire incidents.
This cable complies with Euroclass Dca-s1 d1 a1 standards for flame retardancy and low smoke emission.
The outside diameter of the Belden 9504NH Series Data Cable is 7 mm.
The minimum operating temperature is -30°C.
Each conductor consists of 7 strands of 32 AWG wire.
This cable is suitable for automation system instrumentation, data transfer for computer and electronic equipment, and connections in environments requiring low smoke emissions and flame retardancy.
The cable features an overall Beldfoil shield that provides 100% coverage to minimize electromagnetic interference.
