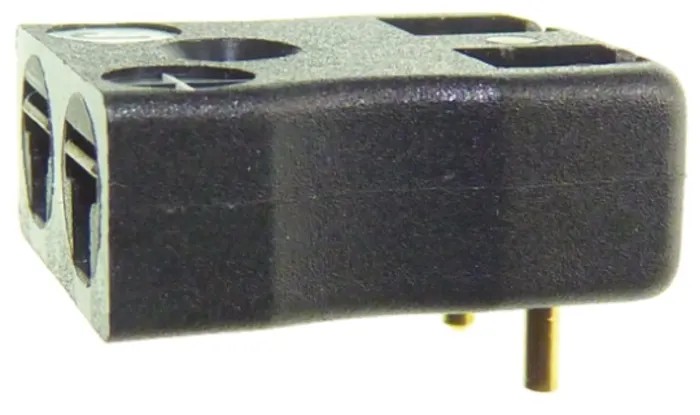

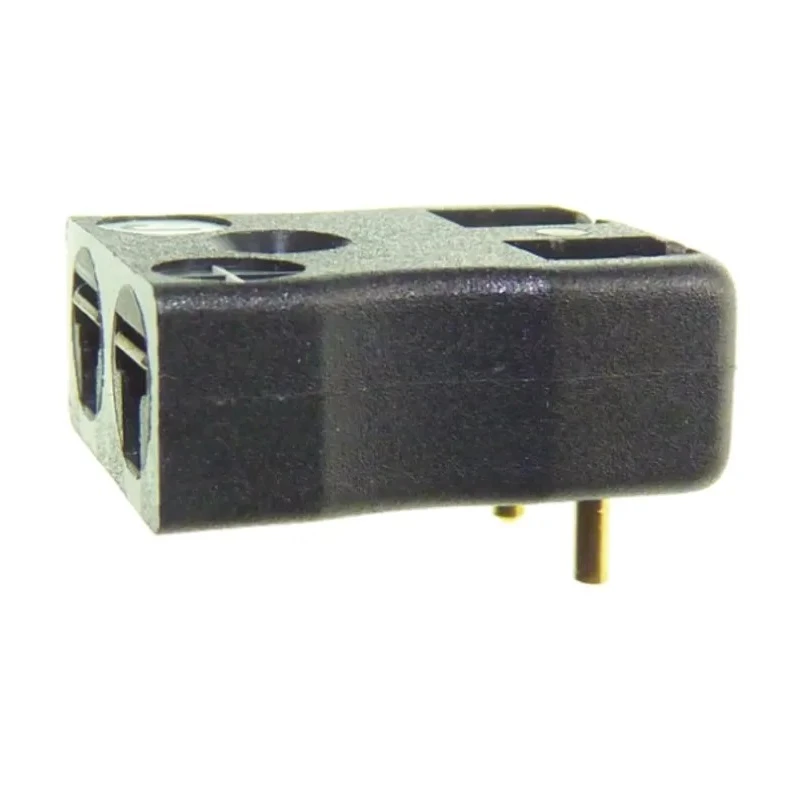

RS PRO Miniature PCB Socket Thermocouple Connector for Type J Thermocouple, IEC Compliant, RoHS, United Kingdom 381-7558

RS PRO 381-7558 miniature PCB socket thermocouple connector is engineered for precise temperature measurement applications. This connector is specifically designed for compatibility with Type J thermocouples, adhering to IEC standards and RoHS compliance, ensuring reliability and environmental safety. The housing is made from durable glass-filled thermoplastic material, providing impact resistance and the ability to withstand temperatures up to 220°C, making it suitable for demanding industrial environments.

The connector features solid brass PCB pins which allow direct mounting onto printed circuit boards, enhancing stability and integration. It includes a provision for a Cold Junction Compensation (CJC) sensor to maintain accurate temperature readings. The colour-coded housing not only aids in quick identification of the thermocouple type but also clearly marks the polarity and connection points, reducing risk of connection errors.

Contacts are manufactured using true thermocouple alloys or compensating materials, delivering precise transmission of thermal signals with minimal interference. This socket connector accepts flat polarized pins ensuring a secure and error-free connection making it ideal for a variety of industrial, laboratory and HVAC temperature sensing systems.

The RS PRO 381-7558 is compatible with both stranded and solid wires and supports flow solder assembly techniques, expanding its applicability across various manufacturing processes. It offers a practical solution for extending or replacing thermocouple cables and probes in temperature monitoring chains.

This thermocouple socket connector is excellent for applications in industrial temperature control systems, laboratory instrumentation, manufacturing process monitoring, HVAC systems, and more. It supports robust and reliable connections necessary for critical temperature measurement tasks.

Constructed with solid brass PCB pins for direct board mounting. Features a rugged glass-filled thermoplastic housing with impact resistance. Capable of withstanding high temperatures up to 220°C. Provision included for a Cold Junction Compensation (CJC) sensor.

Colour-coded housing with thermocouple type clearly indicated for easy identification. Accepts polarized flat pin contacts ensuring accurate and safe connections. Compatible with stranded or solid wires and flow solder assembly.
