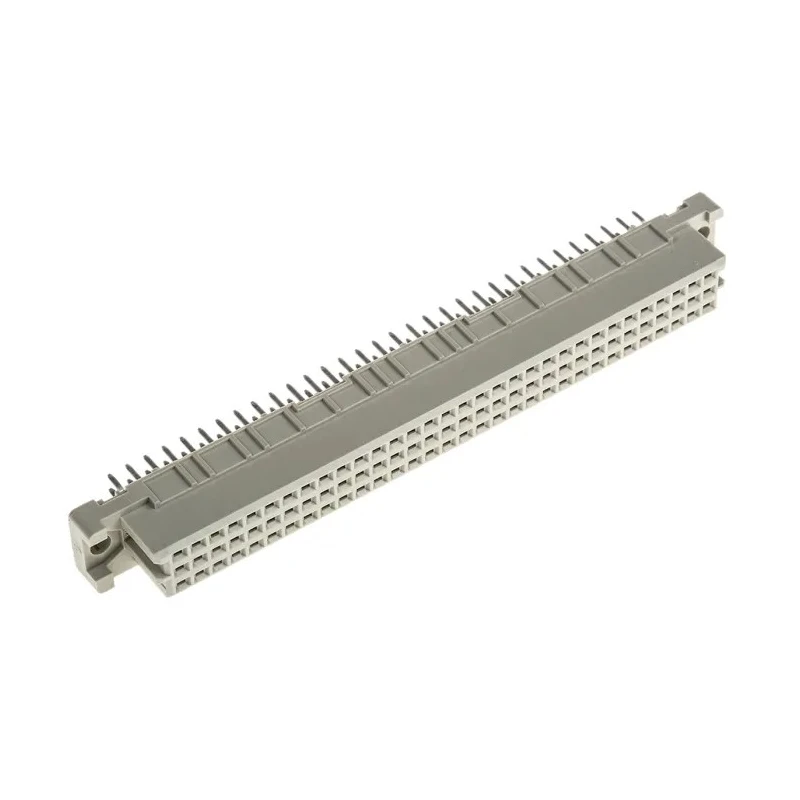

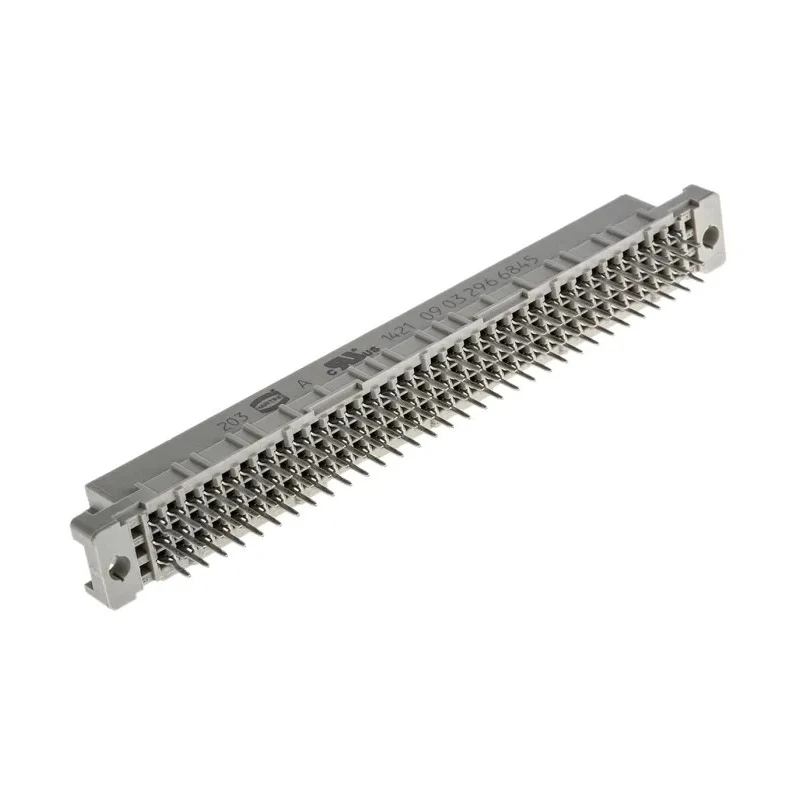

HARTING DIN 41612 96 Way 2.54 mm Pitch Type Through Hole Solder Class C2 3 Row Female Straight Connector 09032966845

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 96 Way 2.54 mm Pitch Type Through Hole Solder Class C2 3 Row Female Straight Connector 09032966845

Name: HARTING DIN 41612 96 Way 2.54 mm Pitch Type Through Hole Solder Class C2 3 Row Female Straight Connector 09032966845
Brand: HARTING
SKU: 182167
Price: 7.64 USD
Availability: InStock



Category DIN 41612 Connector Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Straight
Current	2A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	96
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/B/C

Key Features

Designed with 96 contacts arranged in 3 rows for efficient signal transmission.
Features a 2.54 mm pitch ensuring precise and secure connections.
Female connector type with straight orientation for versatile PCB mounting.
Constructed from copper alloy contacts plated with gold over nickel for durability.
Mount type is through hole with solder termination class C2 for secure electrical contact.
Operates reliably in temperatures ranging from -55°C to 125°C.
Housing made of polybutylene terephthalate providing robust mechanical protection.
Maximum contact resistance is 20 milliohms ensuring low signal loss.

Product Description

HARTING 09032966845 DIN 41612 96 Way Connector is a high-quality PCB backplane signal connector designed for demanding industrial applications, including electronics manufacturing and telecommunications.

This Type C/2 connector features 96 contacts across 3 rows with a 2.54 mm pitch and solder termination in Class C2, optimizing reliable electrical connection and long mating cycles. The female, straight-oriented design supports versatile PCB integration via through hole mounting.

Constructed with copper alloy contacts plated in gold over nickel combined with a durable polybutylene terephthalate housing, this connector ensures excellent signal integrity and mechanical robustness. It accommodates currents up to 2 amperes and operates reliably over a wide temperature range from -55°C to +125°C.

The connector complies with DIN 41612 series standards, commonly utilized in 19-inch Eurocard racking systems for industrial control, telecommunications, and instrumentation applications. Its low contact resistance of up to 20 mΩ minimizes signal loss, vital for maintaining performance in critical electronic equipment.

Applications include industrial electronic assemblies, backplane connectors, telecommunications hardware, and control systems in manufacturing and automation industries. Designed with 96 contacts arranged in 3 rows for efficient signal transmission.

Features a 2.54 mm pitch ensuring precise and secure connections. Female connector type with straight orientation for versatile PCB mounting. Constructed from copper alloy contacts plated with gold over nickel for durability.

Mount type is through hole with solder termination class C2 for secure electrical contact. Operates reliably in temperatures ranging from -55°C to 125°C. Housing made of polybutylene terephthalate providing robust mechanical protection.

Maximum contact resistance is 20 milliohms ensuring low signal loss. Meets DIN 41612 series standards, suitable for backplane and rack connector applications. Explore the HARTING connectors category at EnvMart for more high-quality electronic connector solutions tailored to industrial and laboratory needs.
