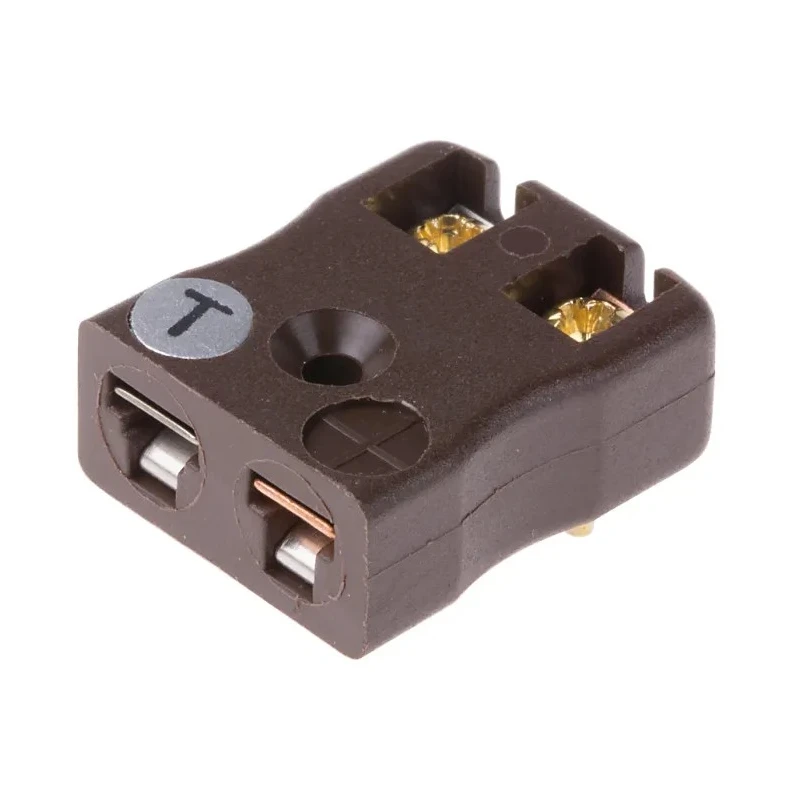

RS PRO Miniature PCB Socket Connector for Use with Type T Thermocouple, BS EN 50212:1997, RoHS Standard 381-7570

RS PRO 381-7570 miniature PCB socket connector is a high-quality accessory designed to interface with Type T thermocouples, compliant with BS EN 50212:1997 and RoHS standards. It provides a precise and reliable means of connecting thermocouple probes or wires to extension or compensating cables, ensuring the integrity of temperature measurements in industrial and laboratory environments.

The connector features true thermocouple alloy contacts that facilitate accurate signal transmission necessary for sensitive temperature readings. Its IEC colour-coded housing allows for quick identification, reducing the risk of wiring errors in complex systems.

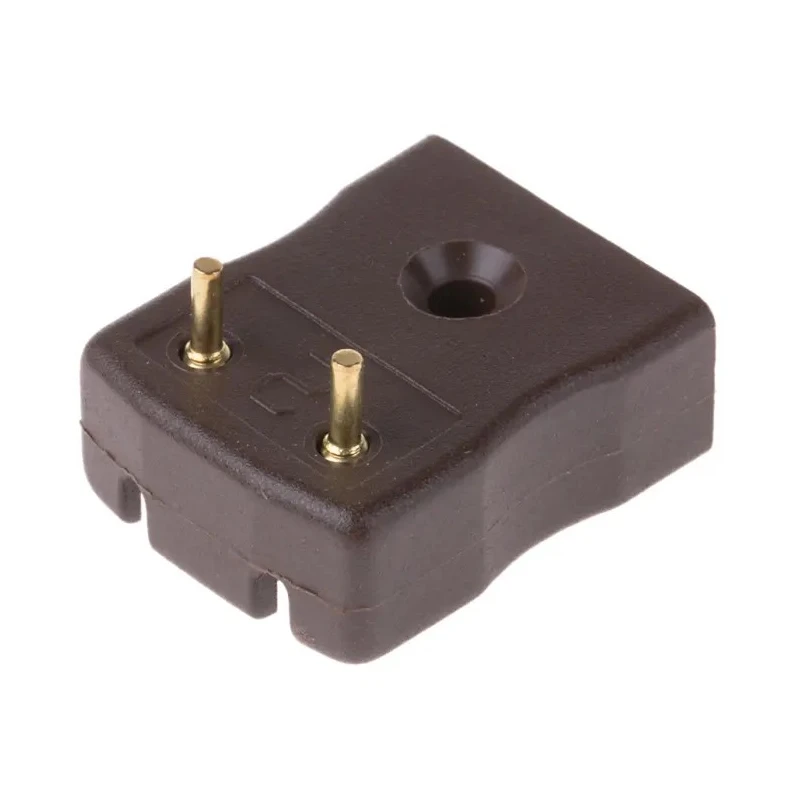

With solid brass PCB pins, this socket connector can be directly mounted on printed circuit boards, simplifying integration into electronic assemblies. A provision is available for incorporating a Cold Junction Compensation (CJC) sensor, enhancing measurement accuracy by compensating for junction temperature variations.

The housing material is a durable glass-filled thermoplastic, designed to resist mechanical shocks and tolerate high operating temperatures up to 220°C. The contacts accept polarized flat pins, guaranteeing a secure and accurate connection that prevents misalignment.

Designed for compatibility with flow solder assembly techniques, this connector suits modern manufacturing processes. Its clear markings on polarity and thermocouple type simplify installation and maintenance tasks for technicians and engineers.

Applications for these miniature PCB socket connectors include industrial temperature monitoring, scientific instrumentation, HVAC system control, and other scenarios requiring precise thermocouple connections. The robust construction ensures longevity even under demanding environmental conditions.

Contacts made from true thermocouple alloys ensuring precise signal transmission. IEC colour coding for easy and quick identification. Solid brass PCB pins allow direct mounting onto a printed circuit board. Provision included for Cold Junction Compensation (CJC) sensor integration.

Connector housing constructed from rugged glass-filled thermoplastic resistant to impacts. Capable of withstanding high temperatures up to 220°C safely. Accepts polarized flat pin contacts for accurate and error-free connections.

Compatible with flow solder assembly processes for manufacturing. Clearly marked polarity and thermocouple type on the housing for user convenience. Suitable for use with stranded or solid wires in demanding temperature measurement environments.
