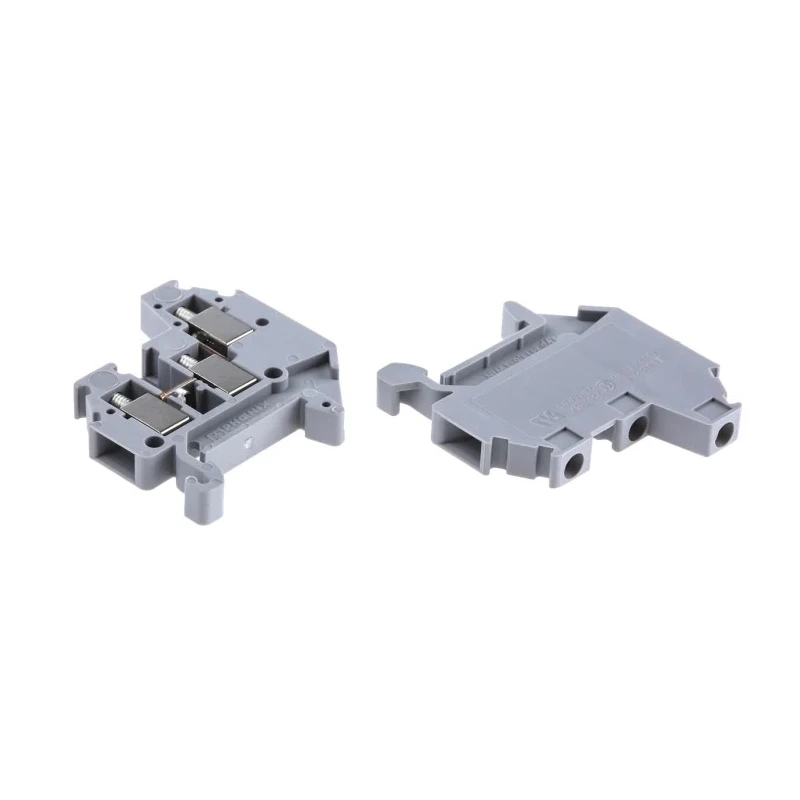

Phoenix Contact MT Series 2-Level Grey DIN Rail Terminal Block, Screw Terminal, 0.14mm² to 1.5mm² Wire Size, 400V 3001682

Phoenix Contact 3001682 MT Series 2-Level DIN Rail Terminal Block is engineered for high-reliability electrical connections in industrial, commercial, and control panel applications. It supports a voltage rating of 400V and a current carrying capacity of 17.5A, suitable for medium power distribution tasks.

The terminal block supports wires sized from 0.14mm² (26 AWG) up to 1.5mm² (16 AWG), compatible with both solid and stranded conductors. Its screw termination method ensures strong and stable contact, which is critical in high-vibration environments. The compact design with a width of only 4.2 mm helps to conserve space on DIN rails, enabling neat and dense panel layouts.

Rated for operation between -60°C and 105°C, this terminal block withstands a broad temperature range, making it adaptable to demanding temperature conditions frequently found in industrial settings. It complies with standards IEC 60947-7-1 and features CSA certification for hazardous areas, ensuring adherence to rigorous quality and safety requirements.

The device has a flammability rating of V0, indicating it halts burning within 10 seconds and prevents flaming drips, enhancing safety in electrical installations. Its dual-level feedthrough configuration offers one input and two outputs, simplifying wiring of multiple circuits. Clear markings on all terminal points facilitate systematic wiring and maintenance.

Standardized plug-in bridges facilitate easy and secure potential distribution across multiple terminals. The terminal block mounting relies on a snap-on foot compatible with NS15 DIN rails, providing effortless and robust installation.

Accommodates wire sizes between 0.14mm² and 1.5mm² for flexible wiring options. Compact 4.2 mm width saves space on DIN rails for organized installations. Screw termination method provides reliable and secure wire connections.

Operating temperature range from -60°C to 105°C suitable for various environments. Certified to CSA hazardous area standards and compliant with IEC 60947-7-1. Features double-level feedthrough terminals allowing 1 input and 2 outputs.

Flammability rating V0 ensures the product stops burning within 10 seconds without flaming drips. Marked terminal points and standardized plug-in bridges provide clear arrangement and easy potential distribution. Foot designed for easy snap-on to NS15 DIN rails for quick mounting.

This Phoenix Contact MT Series terminal block is essential for industrial electrical assemblies, panel building, and equipment requiring reliable and compact conductor termination. It is ideal for use in control cabinets, manufacturing facilities, electrical distribution systems, and automation equipment. Browse our complete range of DIN Rail Terminal Blocks for comprehensive electrical connectivity solutions.
