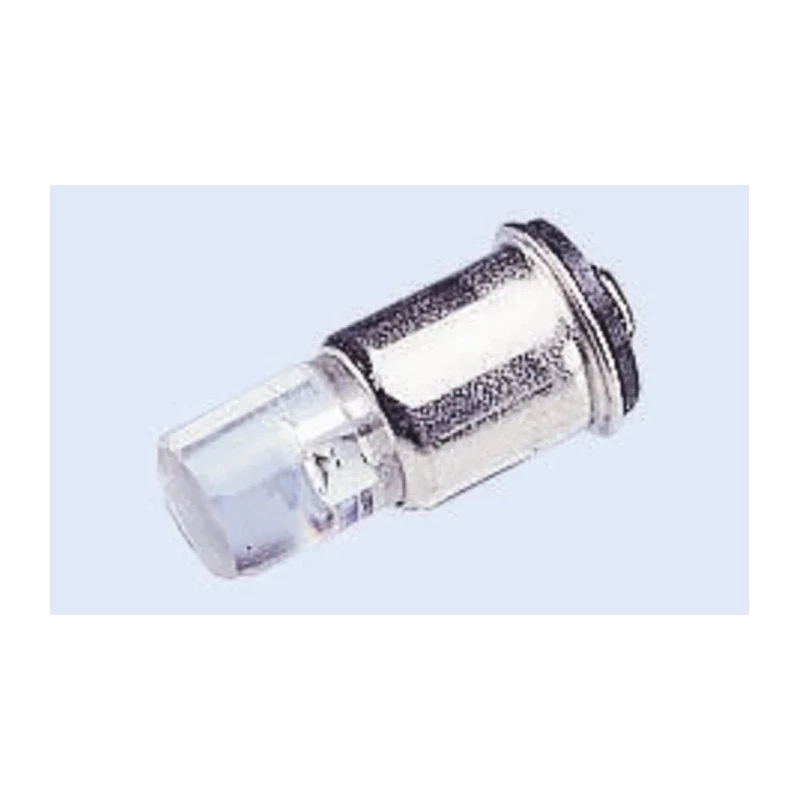

RS PRO White LED Indicator Lamp Single Chip, 4.9 mm Diameter 206-997-23-38

Marl 206-997-23-38 White LED Indicator Lamp Single Chip, 4.9 mm Diameter, designed with ultra-bright LEDs provides extensive industrial grade reliability and sunlight-readability. This lamp operates at a current of 20 mA and features an integral resistor allowing direct connection to popular DC voltages including 12 Vdc, 24 Vdc, and 28 Vdc.

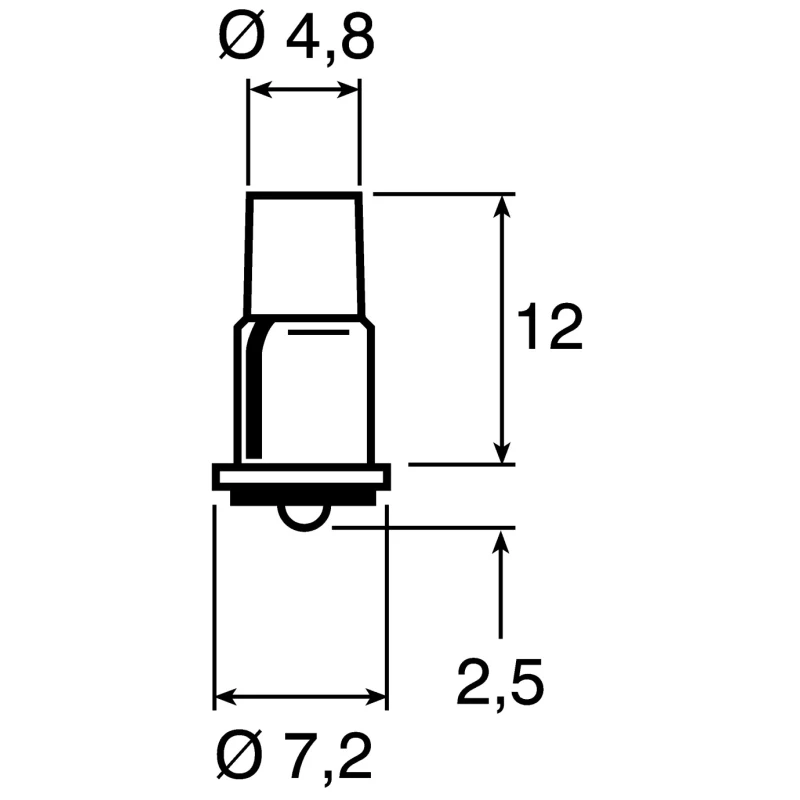

The LED lamp includes a specially manufactured lens that delivers a very wide viewing angle of 120°, ideal for indicator applications where visibility from multiple angles is critical. The compact dimensions with 4.9 mm diameter and 14.5 mm length facilitate fitting into restricted spaces while maintaining performance.

Constructed with a T1¾ midget flange, this lamp is well-suited for use in electronic components, power and connector applications, and electronic displays. The single chip LED design offers bright white light output optimized for varied industrial, laboratory, manufacturing, and commercial uses. It has an estimated operational life of 100000 hours, promising long-lasting service with minimal maintenance.

The integral resistor design simplifies installation by allowing connection to different standard DC voltages without additional circuitry. Single chip white LED for bright light output. 4.9 mm diameter and 14.5 mm length provide compact form factor.

Wide 120° viewing angle for superior visibility. Integral resistor suitable for 12, 24, 28 Vdc systems. T1¾ midget flange style for ease of mounting. Designed for extended use with a 100000-hour lifespan. Manufactured in United Kingdom to high standards.

This LED indicator lamp is perfect for applications requiring reliable, bright, and energy-efficient visual status indicators. Explore more Indicator Lamps and electronic components at EnvMart for industrial and commercial solutions.
