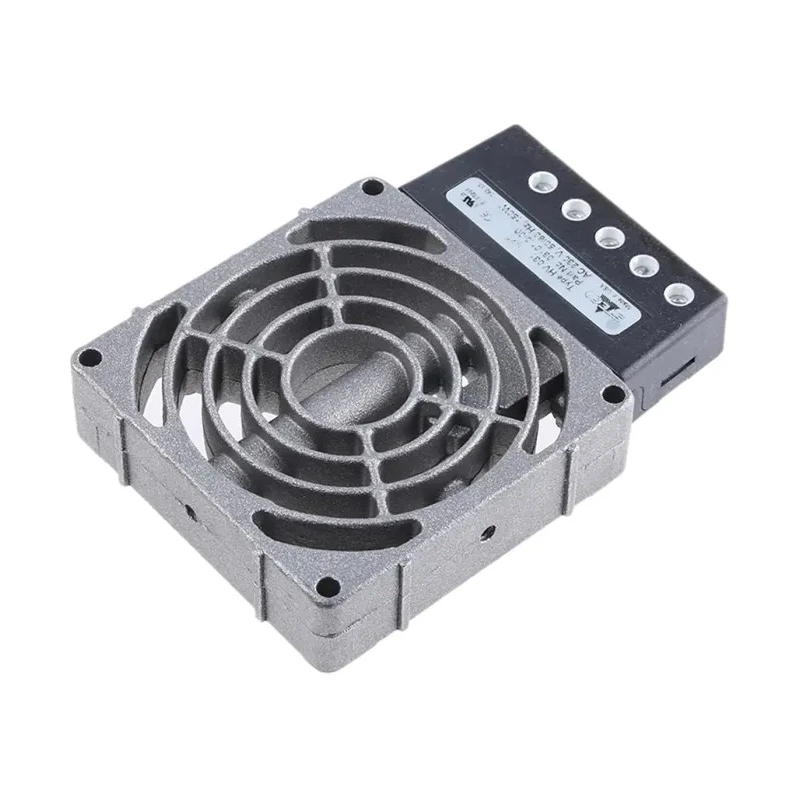

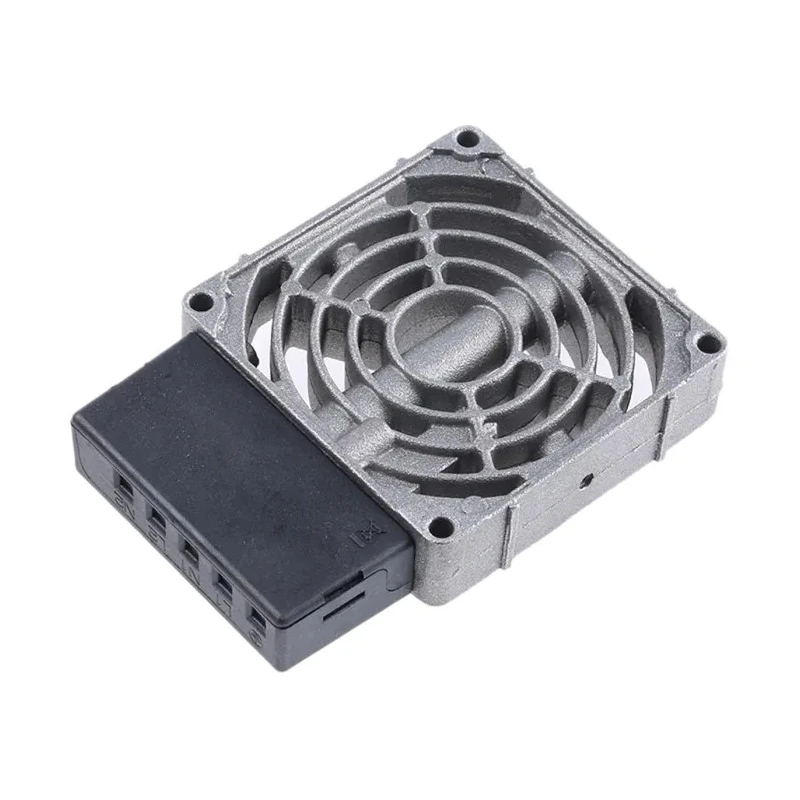

STEGO Enclosure Heater, 230V AC, 150W Output Power, Die-Cast Aluminum Heater Body, DIN Rail Mount 03101.0-00
Specifications
| Country of Origin | India |
|---|---|
| Brand | STEGO |
| Mounting | clip for 35mm DIN rail, EN 60 715 |
| Connection | 3-pole terminal AWG 14 max. (2.5mm2), torque 0.8Nm max |
| Connection Type | 3-Pole Terminal |
| Depth | 112mm |
| IP Rating | IP20 |
| Width | 80mm |
| Output Power | 150W |
| Mount Type | DIN Rail |
| Input power | 150W |
| Heating element | high performance cartridge |
| Maximum Operating Temperature | 158°C |
| Minimum Operating Temperature | -49°C |
| Supply Voltage | 230V ac |
| Overheat Protection | built-in temperature limiter |
| Mounting Position | horizontal |
| Standards/Approvals | UL File No. E187294, CE, RoHS, VDE (230V only), cURus |
| Operating / Storage temperature | -49 to +158°F (-45 to +70°C) |
| Heater body | die-cast aluminum, glass bead finish |
| Connection housing | plastic, UL 94V-0, black |
| Protection class / Protection type | I (grounded) / IP20 |
| Axial fan, ball bearing service life | 50,000h at 77°F (25°C) |
| Axial fan connection | 2-pole terminal AWG 14 max. (2.5mm2), terminals L2/N2 |
| STEGO Enclosure Heater, 230V ac, 400W Output, 400W Input 119mm x 151 mmBrand | STEGO |
Key Features
- The heater features a die-cast aluminum body with a durable glass bead finish for long-lasting protection.
- Equipped with a high performance cartridge heating element to prevent condensation inside enclosures.
- Mounts easily on 35mm DIN rail with horizontal positioning for versatile installation.
- Protection class I grounding and IP20 ingress rating ensure safety in standard environments.
- Built-in temperature limiter offers effective overheat protection during operation.
- Operates within a wide temperature range from -49°C to 158°C for flexible use.
- Plastic UL 94V-0 rated black connection housing with 3-pole terminal suitable for AWG 14 wiring.
- Axial fan (sold separately) compatible to assist with airflow, featuring 50,000h ball bearing service life at 25°C.
Product Description
STEGO, model 03101.0-00, is a high-performance Enclosure Heater delivering 150W output power at 230V AC supply voltage. It is designed to maintain even interior temperatures within electrical and industrial enclosures, preventing condensation buildup.
The heater features a durable die-cast aluminum body finished with glass bead treatment for enhanced corrosion resistance. Its heating element consists of a high efficiency cartridge-type resistor providing reliable heat distribution.
Mounting is facilitated with a clip for 35mm DIN rails compliant with EN 60 715 standards, and it is intended for horizontal installation positions. The connection is via a 3-pole terminal supporting AWG 14 cables with secure torque specifications.
Safety is ensured through an integrated overheat temperature limiter and grounded protection class I certification. The unit has an ingress protection rating of IP20, suitable for indoor industrial environments.
This model operates effectively over a broad temperature range from -49°C to 158°C, making it suitable for harsh environments. The plastic connection housing is UL 94V-0 rated and black in color.
Additional airflow can be provided by compatible axial fans with ball bearing design, which have a service life of 50,000 hours at 25°C; fans must be purchased separately. Typical applications include use in industrial automation systems, electrical enclosures, HVAC control panels, and laboratory equipment requiring reliable enclosure heating.
The heater employs a high performance cartridge element for efficient heat. Overheat protection is provided by a built-in temperature limiter. Heater body is made of die-cast aluminum with a corrosion resistant finish. Mounting is on standard DIN rails with horizontal positioning.
Connection via 3-pole terminal supports secure wiring and installation. Operating temperature range covers extreme cold and heat conditions. IP20 protection and class I grounding ensure device safety. Fan accessory options provide enhanced airflow capabilities.
Explore additional enclosure heating solutions and automation components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The heater delivers an output power of 150W.
It operates at a supply voltage of 230V AC.
This model operates effectively within a temperature range of -49°C to 158°C.
It mounts easily on a 35mm DIN rail using a clip, compliant with EN 60 715 standards.
The heater features a 3-pole terminal connection suitable for AWG 14 wiring.
The heater body is made of die-cast aluminum with a glass bead finish for enhanced corrosion resistance.
Yes, it includes a built-in temperature limiter for overheat protection and has a protection class I grounding.
The heater has an ingress protection rating of IP20, making it suitable for indoor use.
The heater has a depth of 112mm and a width of 80mm.
It is equipped with a high performance cartridge heating element for efficient heat distribution.
Yes, it is compatible with an axial fan, which must be purchased separately, and features a ball bearing service life of 50,000 hours at 25°C.
It complies with UL, CE, RoHS, and VDE standards (230V only) and has a UL File No. E187294.
