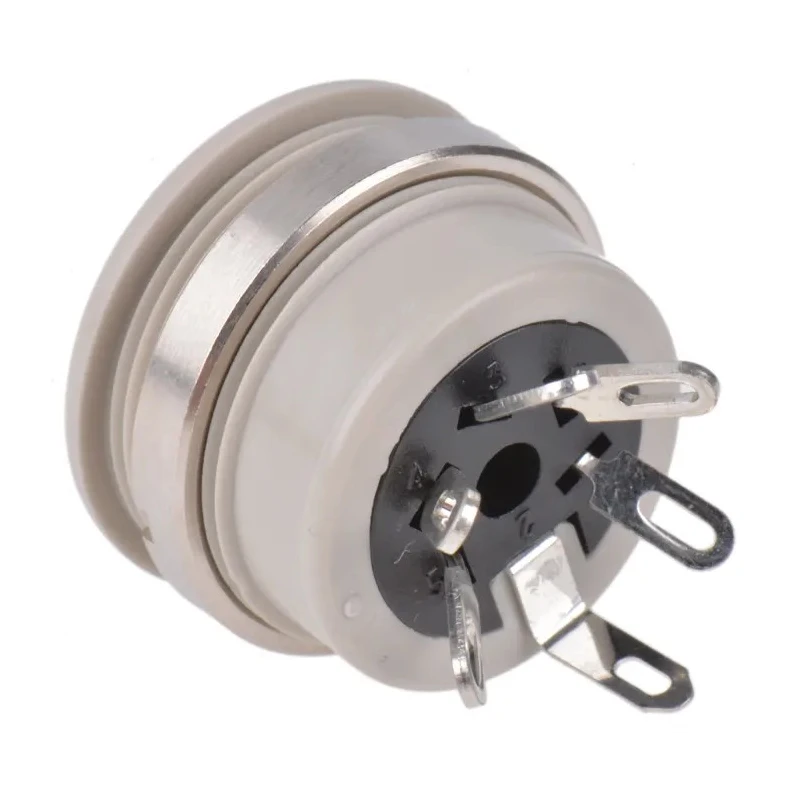

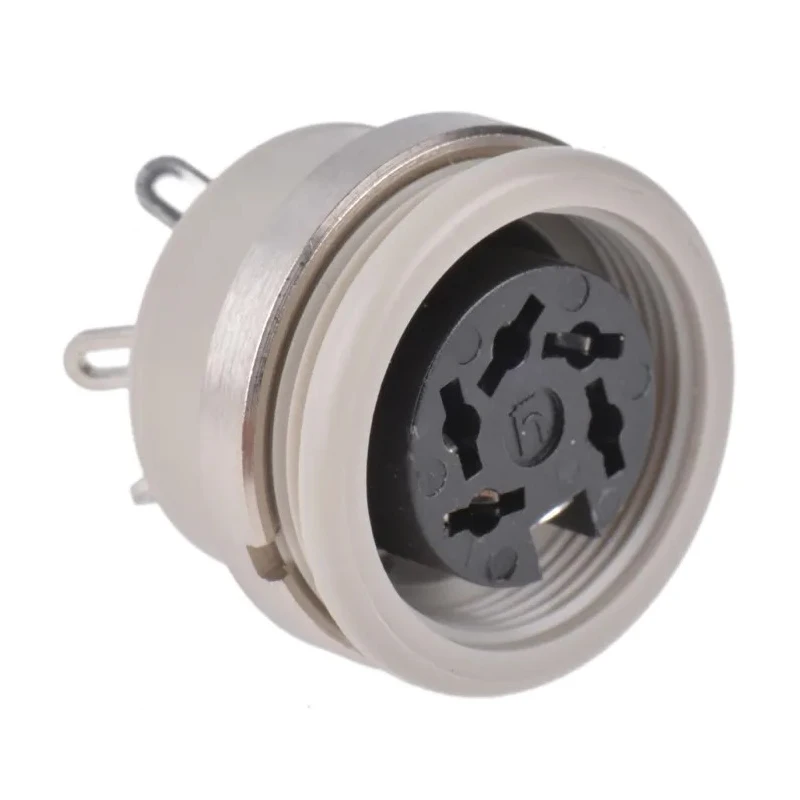

Hirschmann MAB 5 Pole Straight Standard DIN Socket Panel Mount Female Screw Lock 4A 34V AC/DC 930952517 MAB 5100
Specifications
| Country of Origin | Hungary |
|---|---|
| Voltage | 34, 34V ac |
| Brand | Hirschmann |
| Orientation | Straight |
| Current | 4A |
| Model | 930952517 MAB 5100 |
| IP Rating | IP30 |
| Mount Type | Panel Mount |
| Housing Material | Polyethylene |
| Contact Material | Brass |
| Series | MAB |
| Termination Type | Solder |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Shield Type | Unshielded |
| Pole Format | 5 |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector Gender | Female |
| Mating Type | Screw Lock |
| Connector Size | Standard |
| DIN Number | DIN EN 60 130 09 |
Key Features
- This DIN socket features five contacts made from tin-plated brass for excellent conductivity.
- Panel mount type with standard size and female connector gender ensures compatibility.
- Screw lock mating type secures plugs firmly during use.
- Rated for 34V AC and DC operation with an IP30 protection rating.
- Operates reliably between -20°C and +60°C, suitable for harsh environments.
- Housing made from corrosion-resistant polyethylene for durability.
- Solder termination provides fast, reliable installation.
- Complies with DIN EN 60 130 09 standard and belongs to Hirschmann MAB series.
Product Description
Hirschmann 930952517 MAB 5100 5 Pole Straight Standard DIN Socket is a high-quality panel mount connector designed for secure and reliable signal transmission in various industrial and electronic applications. Rated at 4A and suitable for 34V AC/DC, this DIN socket offers dependable performance in demanding environments.
This socket features five female contacts crafted from highly conductive tin-plated brass, ensuring excellent electrical connectivity. The sturdy polyethylene housing provides corrosion resistance, extending the product's operational life, even in harsh conditions.
The panel mount design facilitates easy installation on control panels and equipment, while the built-in screw lock mating system guarantees secure plug retention, preventing accidental disconnections.
Operating temperature ranges from -20°C to +60°C, enabling use in diverse settings including computer networking systems, commercial lighting installations, and communications equipment. Its IP30 rating protects against ingress of solid objects larger than 2.5 mm, making it suitable for indoor industrial environments.
This DIN socket features five contacts made from tin-plated brass for excellent electrical performance. Panel mount type with standard size and female connector gender for versatility. Screw lock mechanism ensures secure plug connection.
Rated for 4A current and 34V AC/DC voltage. Corrosion-resistant polyethylene housing for durability in challenging conditions. Suitable for operating temperatures between -20°C and +60°C. Unshielded, straight orientation for convenient cable arrangement.
Compliant with DIN EN 60 130 09 standard, part of the MAB series.
Ideal for industrial, laboratory, commercial, and manufacturing applications requiring reliable circular DIN connector sockets. Manufactured in Hungary, this Hirschmann product is new and ready to support secure panel installations.
Explore more high-performance Hirschmann connectors and accessories at EnvMart for all your electrical connection needs.
Explore more products in our DIN Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 4A.
The connector has an IP30 protection rating.
It operates reliably between -20°C and +60°C.
The housing is made from corrosion-resistant polyethylene, and the contacts are made from tin-plated brass.
This unit features five female contacts.
It uses solder termination for installation.
It is a panel mount type, designed for easy installation on control panels and equipment.
It complies with the DIN EN 60 130 09 standard.
The socket has a straight orientation for convenient cable arrangement.
The screw lock mating type secures plugs firmly during use, preventing accidental disconnections.
It is manufactured in Hungary.
