nVent SCHROFF Eurocard Test Connector Adapter , 3 HE Height, Epoxy Glass Laminate, Gold Plated Edge Connector 23021-652

Free Delivery in India | Lowest Global Shipping Charges

nVent SCHROFF Eurocard Test Connector Adapter , 3 HE Height, Epoxy Glass Laminate, Gold Plated Edge Connector 23021-652

Name: nVent SCHROFF Eurocard Test Connector Adapter , 3 HE Height, Epoxy Glass Laminate, Gold Plated Edge Connector 23021-652
Brand: nVent SCHROFF
SKU: 179982



Category Test Connector Adapter Brand nVent SCHROFF Condition New

Specifications

Country of Origin	Germany
Brand	nVent SCHROFF
nVent SCHROFF 23021-608 Test Connector AdapterBrand	nVent SCHROFF

Key Features

Manufactured according to DIN 41612 standards for Eurocard test adapters.
Uses epoxy glass-reinforced laminate EP-GC02, complying with DIN 40802 (FR4).
Suitable for cards up to 3 HE (100 mm) in height.
PC/VME bus compatible prototyping boards with 1.6 mm thickness and 305 g/m² copper.
Edge connector fingers are gold plated to 1.5 microns thickness for enhanced conductivity.
Pre-drilled 1.0 mm diameter holes on a 2.54 mm pitch matrix, enabling versatile prototyping.
Features microboard pattern with colander ground plane on component side for glitch-free high-speed operation.
Complete solder mask protection ensures durability in electronics testing environments.

Product Description

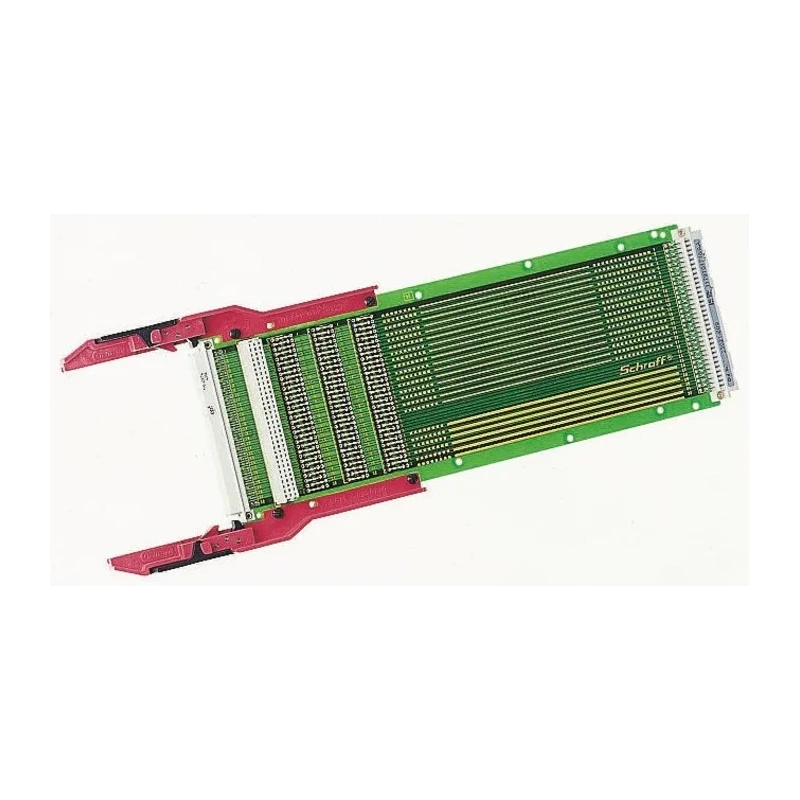

nVent SCHROFF 23021-652 Test Connector Adapter is a high-quality Eurocard test adapter adhering to DIN 41612 standards, ideal for electronic testing applications requiring reliable signal integrity. Manufactured with epoxy glass-reinforced laminate EP-GC02 (FR4) ensuring durability and electrical insulation, this adapter supports cards up to 3 HE (100 mm) in height.

The adapter features PC and VME bus compatible prototyping boards made of epoxy glass material conforming to BS 4584 part 3 or 16 with a standard thickness of 1.6 mm and copper weight of 305 g/m² (1 oz/ft²). Its edge connector fingers are gold plated to a thickness of 1.5 microns, optimizing conductivity and contact reliability during tests.

Pre-drilled holes of 1.0 mm diameter arranged on a 2.54 mm (0.1 in.) matrix provide flexibility in prototyping, while the microboard pattern includes a colander ground plane on the component side for maximum screening and glitch-free high-speed operation. The complete solder mask protection enhances durability and protects the PCB during handling.

This test connector adapter is suitable for use in electronic component manufacturing, lab testing, electrical test and measurement, and prototyping environments requiring robust and precise connector adapters. Its German origin guarantees quality manufacturing standards.

Manufactured according to DIN 41612 for Eurocard compatibility. Epoxy glass-reinforced FR4 laminate ensures electrical insulation and mechanical strength. Supports 3 HE height cards, accommodating standard bus architectures.

Gold plated edge fingers enhance signal conduction and corrosion resistance. Pre-drilled matrix holes enable flexible PCB prototyping and testing. Microboard pattern with screened ground plane improves signal integrity. Complete solder mask protection for enhanced durability during usage.

Explore more Test Connector Adapters and electronic components at EnvMart to meet your prototyping and testing needs in electronics manufacturing and design.
