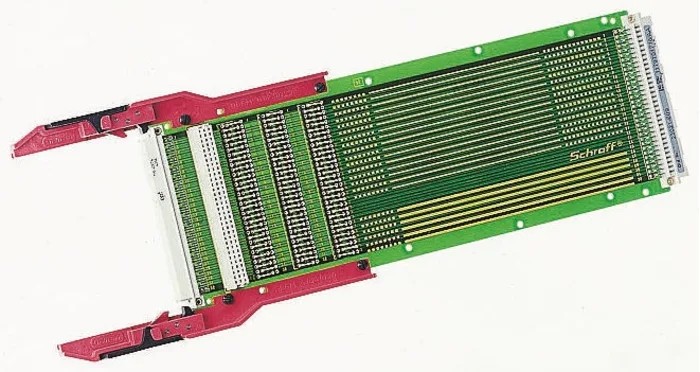

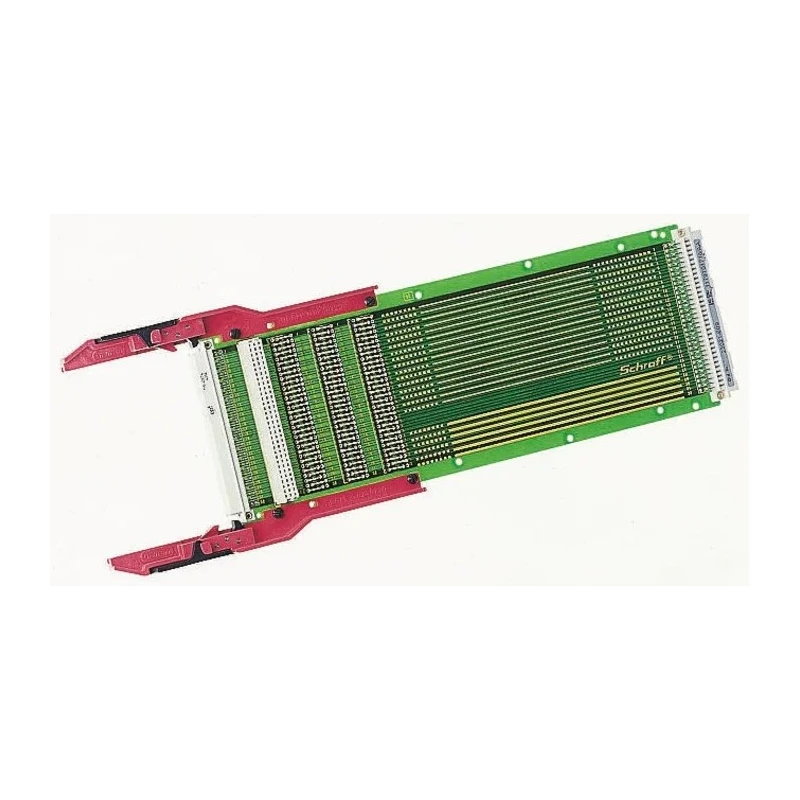

nVent SCHROFF Test Connector Adapter Eurocard DIN 41612 Epoxy Glass Reinforced PCB 1.6 mm 23021-609

nVent SCHROFF 23021-609 Test Connector Adapter is a precision Eurocard test adapter designed in compliance with DIN 41612 standards, offering robust and reliable testing for electronic and prototyping applications.

Constructed with epoxy glass-reinforced laminate EP-GC02 PCB, it provides excellent mechanical strength and electrical insulation, suitable for professional and laboratory use.

This adapter supports cards of up to 3 HE height (100 mm) and a card thickness of 1.6 mm, standard for PC and VME bus boards and prototyping boards. The copper layer of 305 g/m² delivers efficient conductivity with edge connector fingers plated with 1.5 microns of gold ensuring durable and corrosion-resistant contacts.

The pre-drilled 1.0 mm diameter holes on a 2.54 mm matrix align with industry-standard PCB specifications for easy assembly and integration.

On the component side, the incorporated colander ground plane enhances electromagnetic screening and ensures glitch-free high speed operation. Complete solder mask protection adds to the adapter's longevity and performance stability.

This test connector adapter is ideal for industrial electronics testing, quality assurance, development labs, and prototyping environments demanding precision connectors and reliable signal integrity.

Constructed with epoxy glass-reinforced PCB for durability and insulation. Gold plated edge connectors ensure reliable signal transmission. Supports standard card heights and thickness for wide compatibility. Pre-drilled holes facilitate efficient PCB assembly.

Maximized screening for high speed, glitch free performance. Suitable for PC, VME bus, and PC compatible prototyping boards. Manufactured to DIN 41612 and related standards for quality assurance. Explore more Test Connector Adapters and precision electronic connectors at EnvMart for your industrial and laboratory needs.
