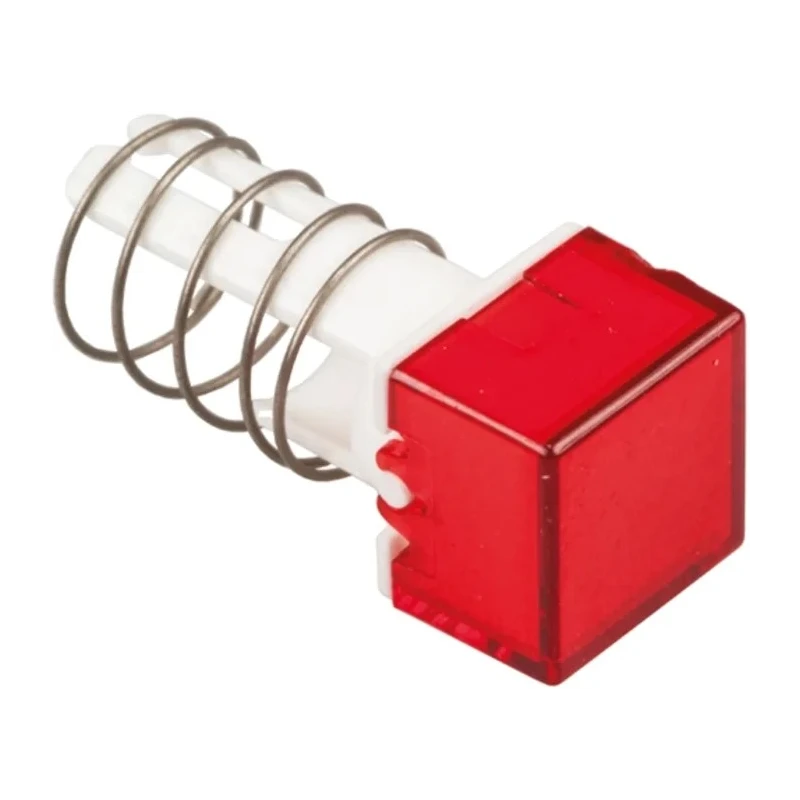

Idec Red Square Push Button Lens for Use with A8 Series AL8Q-LK1-R

Name: Idec Red Square Push Button Lens for Use with A8 Series AL8Q-LK1-R
Brand: Idec
SKU: 179192
Price: 2.62 USD
Availability: InStock



Category Push Button Lenses Brand Idec Condition New

Specifications

Country of Origin	Japan
Brand	Idec
Height	14.5mm
Length	10mm
Model	AL8Q-LK1-R
Width	12.5mm
Note	When not illuminated, the green LED appears to be yellow
Lens Colour	Red
For Use With	A8 Series
Standards/Approvals	UL, CSA
Lens Shape	Square
LENS MIN IND SQ REDBrand	NEUTRAL
Idec Green Square Push Button Lens for Use with A8 SeriesBrand	Idec

Key Features

Compatible specifically with A8 Series push button switches.
Constructed with a red colored, square-shaped lens for distinct indication.
Complies with UL and CSA standards to ensure safety and reliability.
Manufactured in Japan to high-quality industry standards.
Lens comprises a diffuser and colored transparent front cover for clear visibility.
Suitable LEDs are supplied separately and must be used with an external resistor limiting current to 20 mA.
Square and round bezel indicators do not include the lens or LED, requiring separate lens orders.

Product Description

Idec AL8Q-LK1-R red square push button lens is designed for use with the A8 Series push button switches, offering high-quality indication for industrial and commercial electrical applications. The precision red lens is square-shaped, measuring 10 mm in length, 12.5 mm in width, and 14.5 mm in height, facilitating clear panel indication.

Manufactured in Japan, this lens complies with rigorous UL and CSA standards, ensuring dependable performance in demanding electrical control systems. The lens consists of two parts: a diffuser and a colored transparent front cover, which allows optimal light diffusion and visibility of the illuminated indicator.

This lens is ideal for use with 8 mm sub-miniature illuminated push-button switches that require LED illumination. It is important to note that suitable LEDs must be ordered separately, and the LED current should be limited to 20 mA using an external resistor as per recommendations in the Optoelectronics/Indicators section. Voltage forward (VF) values are 1.7V (red), 2.1V (green), and 2.2V (yellow).

The lens is compatible with both square and round bezel indicators; however, bezel indicators themselves do not include the lens, switch, or LED, so appropriate lenses and LEDs need to be ordered separately. When not illuminated, the green LED may appear yellow due to diffuser effects.

Compatible with A8 Series push button switches. Red square lens shape with dimensions 10 x 12.5 x 14.5 mm. Complies with UL and CSA safety standards. Two-part lens with diffuser and colored transparent front cover. Suitable for 8 mm sub-miniature illuminated push-button switches.

Requires separate LED ordering and external resistor for current limiting. Manufactured in Japan for quality and reliability. Square and round bezel indicators require separate lens and LED ordering.

This push button lens is widely applied in industrial electrical panels, automation controls, machinery indicator systems, and other commercial electrical installations requiring a compact, reliable visual indicator. Purchase of this lens from EnvMart ensures compatibility, safety compliance, and high product quality for precision switch assembly.

Explore more products in our Push Button Lenses category.
