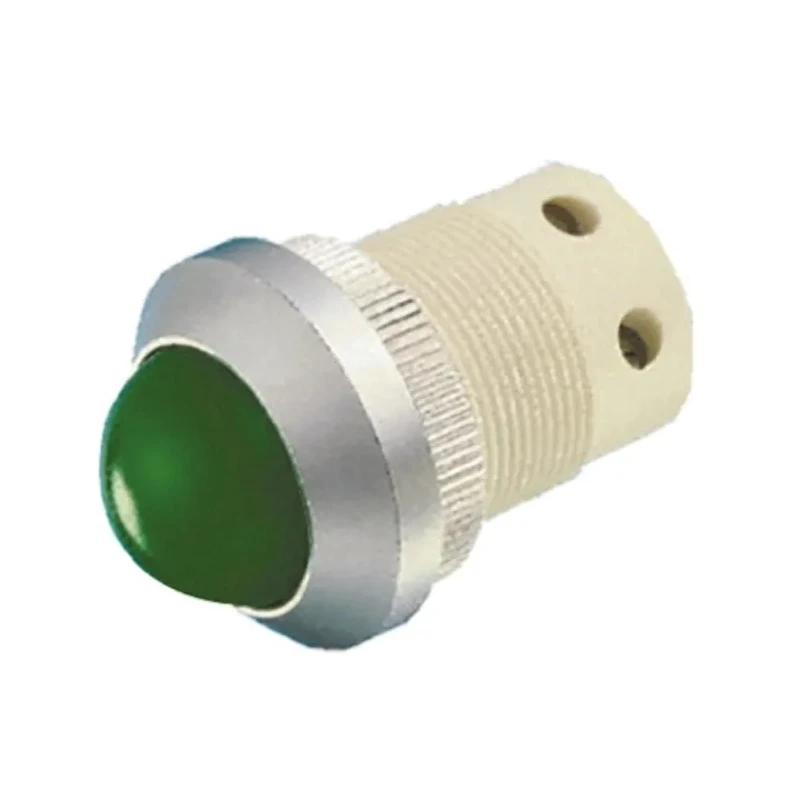

Signal Construct LED Green Panel Mount Indicator 22 mm Mount Hole Size 24-28 V Screw Termination SMSD22734

Signal Construct SMSD22734 is a high-quality LED green panel mount indicator designed for electrical and industrial signalling across various applications. It features a 22 mm diameter mounting hole and a single green LED with screw type terminals, accommodating up to 1.5 mm² wire sizes. The indicator is engineered for a supply voltage range between 24 V and 28 V, suitable for both AC and DC systems.

The housing is constructed using a bright satin or matt chrome plated brass finish with a diameter of 30 mm, ensuring robust mechanical strength and an attractive finish that is well-suited for control panels. All components are sealed to an IP67 rating, providing excellent protection against dust and water ingress, making it suitable for harsh industrial environments.

Secure installation is facilitated by a circular fixing nut that can be tightened by hand, complemented with an O-ring and spring washer to maintain mounting integrity. The polarity agnostic terminal design allows easy integration into both AC and DC circuits without polarity concerns.

This panel mount indicator is ideal for use in electrical panels, machine control interfaces, and various manufacturing and HVAC signalling applications, offering reliable and visible indication in demanding environments.

This panel mount indicator uses a single green LED for signalling applications. It is designed with screw terminals compatible with wire sizes up to 1.5 mm² for secure electrical connections. The housing includes a 30 mm diameter bright satin or matt chrome plated brass, providing robust and aesthetic panel mounting.

The product is sealed to IP67 standard ensuring high resistance against dust and water ingress. It includes an O-ring, circular fixing nut and spring washer for reliable installation. The indicator supports both AC and DC polarity connections for versatile use.

Suitable for industrial, manufacturing, and electrical panel signalling applications. Made in Germany and RoHS compliant to meet environmental regulations.
