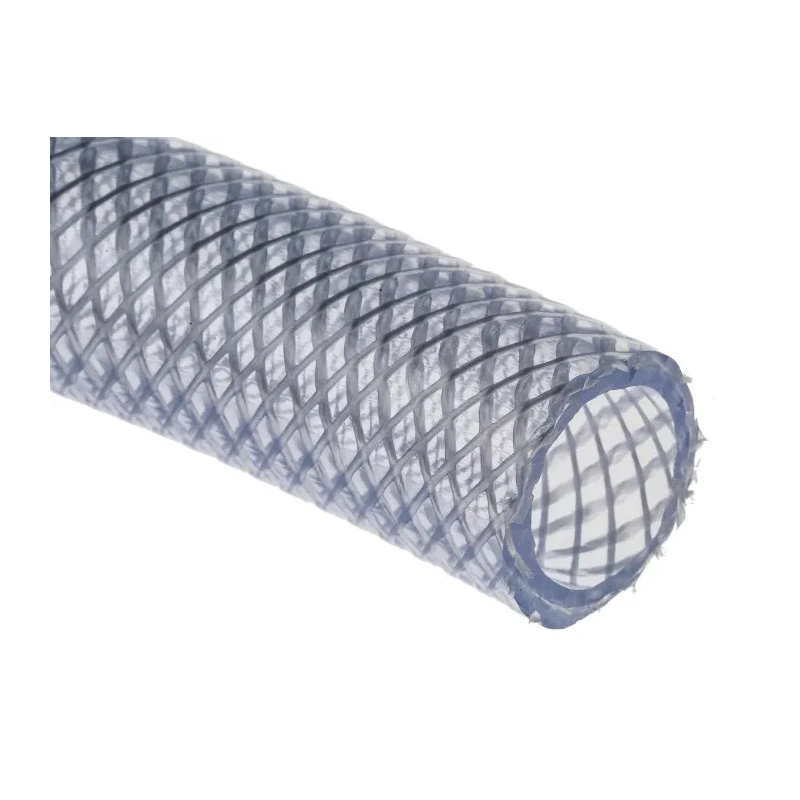

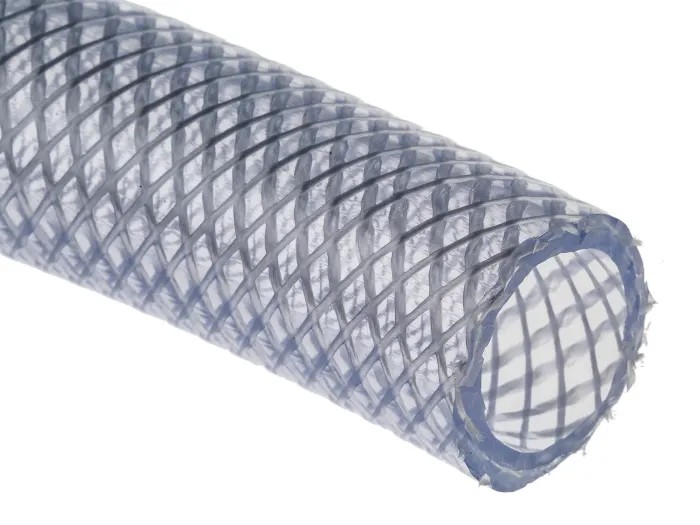

RS PRO Multi-Purpose Reinforced PVC Hose Pipe, 10 bar Pressure, 15 m Length, Clear, Polyvinyl Chloride Material 243-0166

RS PRO 243-0166 is a high-quality multi-purpose reinforced PVC hose pipe measuring 15 meters in length. Designed for a maximum operating pressure of 10 bar and constructed from clear polyvinyl chloride, it offers excellent chemical resistance, flexibility, and durability for a wide range of industrial and commercial applications.

This hose pipe is reinforced with specially selected high tensile polyester fibers set at an optimum braid angle of approximately 54.7 degrees, enhancing its mechanical strength and pressure handling capabilities. The PVC material is compliant with EC regulations, making it suitable for food-grade applications and ensuring the low toxicity required in pharmaceutical and laboratory settings.

The operational temperature range from -10°C to 60°C allows the pipe to withstand diverse environmental conditions. Its clear color facilitates easy visual inspection of conveyed liquids such as water, fuels, oils, air, and chemically compatible substances.

The hose pipe features a bend radius of 210 mm, providing good flexibility for installation in confined or curved spaces. It is abrasion resistant and capable of enduring many acids and alkalis, ensuring longevity in harsh conditions. The product conforms to ISO 5774, NSF 51, and NSF 61 standards, and is manufactured free of cadmium and silicone, which prevents contamination and preserves fluid integrity.

Commonly used in industrial, agricultural, condominium, caravan, pharmaceutical, laboratory, HVAC, and food processing applications, RS PRO 243-0166 offers versatility and reliability. Whether for pneumatic tools, chemical transfer, or water piping, this hose pipe meets stringent safety and quality standards.

The pipe is made from polyvinyl chloride ensuring chemical resistance and durability. Reinforced with high tensile polyester fibers for balanced pressure tolerance. Suitable for conveying air, water, fuels, oils, and chemicals including food-grade substances.

Operates reliably between -10°C and 60°C temperature range. Features a clear coloration for easy visual monitoring of contents. Bend radius of 210 mm allows good flexibility for ease of installation. Manufactured to ISO 5774, NSF 51, and NSF 61 standards with EC compliance for food contact.

Resistant to abrasion and a wide range of acids and alkalis. Ideal for industrial, laboratory, pharmaceutical, and caravan piping applications. Constructed cadmium and silicone free to prevent contamination and taint. Explore the full range of RS PRO hose pipes and flexible tubes at EnvMart for high-quality industrial piping solutions.
