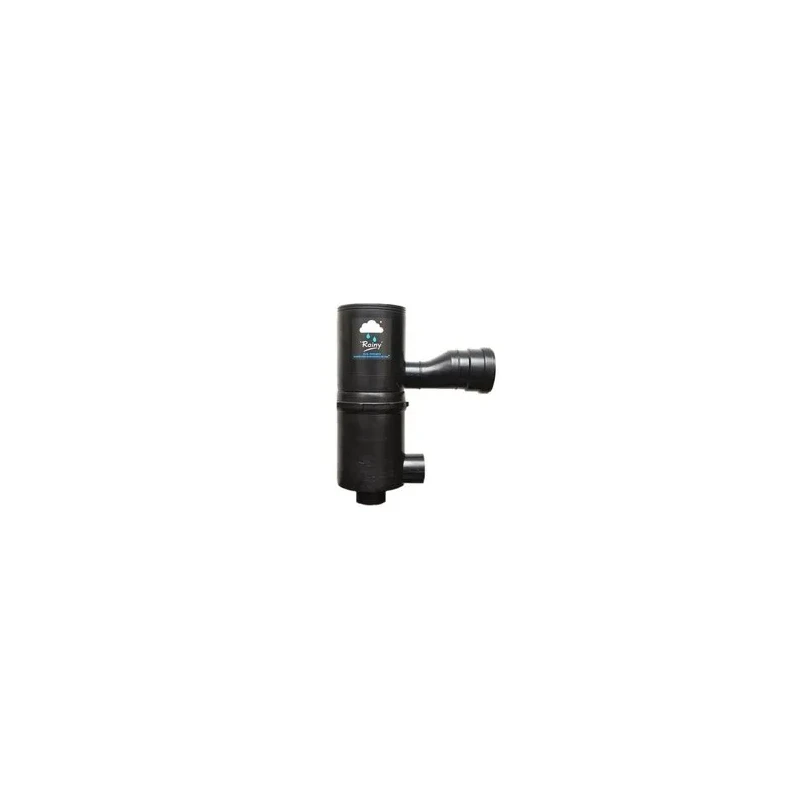

Roof Top Rainwater Harvesting Self cleaning filters Rainy FL-300

Name: Roof Top Rainwater Harvesting Self cleaning filters Rainy FL-300
Brand: ESPL
SKU: ABAJE
Price: 11.59 USD
Availability: InStock



SKU ABAJE Category Rain Water Harvesting System Brand ESPL Condition New

Specifications

Capacity	340 LPM
Applications	Residential Complex / Colleges- Schools / Commercial / Hospitals / Industrial Properties
Operating Pressure	Less Than 2MTR of head (0.060kglcm )
Housing	High Density Polyethylene
Filter Element	SS-304 Screen
Mesh Size	250 Microns
Inlet	110 MM
Suitable for Area	350 SQMTRS
Max Intensity of Rainfall	75 mmlhr
Working Principle	Cohesive Force & Centrifugal force
Clean Water Outlet	90 MM
Drain Outlet	90 MM
Efficiency of Filter	Above 90 %
Source of power	Gravity

Key Features

Works on cohesive & adhesive force
No power is required
Self-cleaning
Compact design for simple installation
Fully enclosed and wall mounting
Tough High Density Polyethylene Housing

Product Description

Roof Top Rainwater Harvesting Self-cleaning filters Rainy FL-300, When the rainwater along with dirt & debris flows by gravity through the down take pipes, it enters into the filter and starts rotating in anticlockwise direction at the periphery of the upper housing, this enables it to flow into the SS-304 filter element placed in the lower housing in angular motion at specific speed & velocity, which creates cohesive force at low intensity & centrifugal force at high intensity of rainfall. In both situations, involving low & high intensity of rainfall, the working principle of the filter based on cohesive & centrifugal force respectively, aids the filter element to flush out dirt & debris automatically. The water then passes through the drain outlet and simultaneously diverts clean water into the sump/ recharging well through the clean water outlet, which can be used for reutilization or recharging of groundwater source

Filter Pipe connections can be turned 360 Degrees
The filter efficiency remains unchanged even with the variation of rainfall intensity
No consumables required

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The filter element has a mesh size of 250 microns.

The housing is made of high-density polyethylene, while the filter element is constructed from SS-304 stainless steel.

The self-cleaning mechanism operates on cohesive and centrifugal forces, allowing the filter to flush out dirt and debris automatically as rainwater flows through it.

This filter is suitable for residential complexes, colleges, schools, commercial properties, hospitals, and industrial properties.

The Rainy FL-300 can handle a maximum intensity of rainfall of 75 mm/hour.

The inlet size is 110 mm, and both the clean water outlet and drain outlet sizes are 90 mm.

The filter diverts clean water into a sump or recharging well through the clean water outlet after filtering out debris.

No power is required for the operation of the Rainy FL-300 filter; it operates solely on gravity.

The efficiency of the Rainy FL-300 filter is above 90%.

Yes, the filter pipe connections can be turned 360 degrees for flexible installation.
