Surface Rain Water harvesting through Dual V Wire Technology Surface Filters

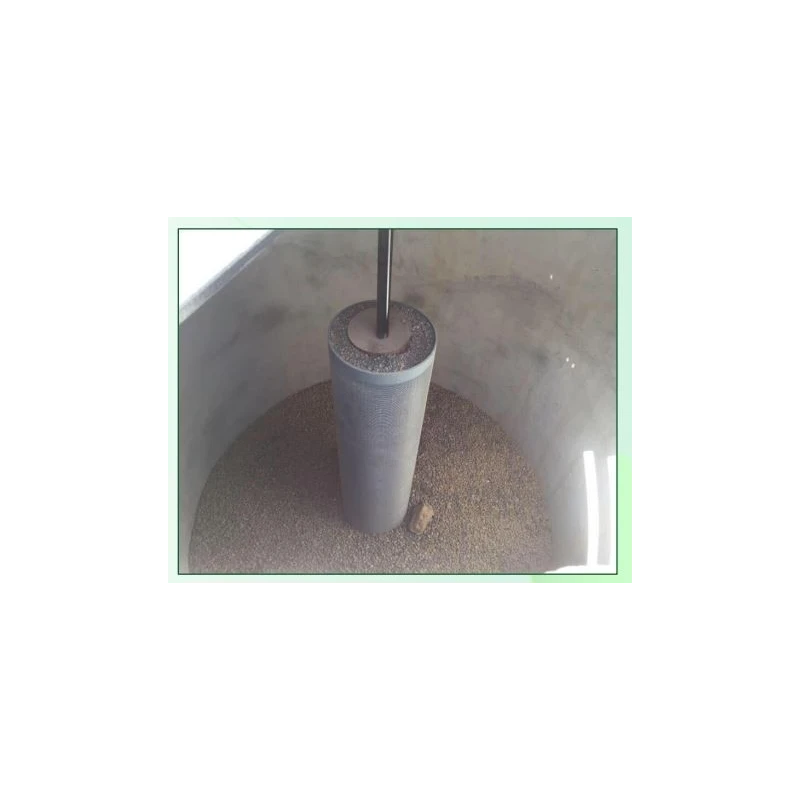

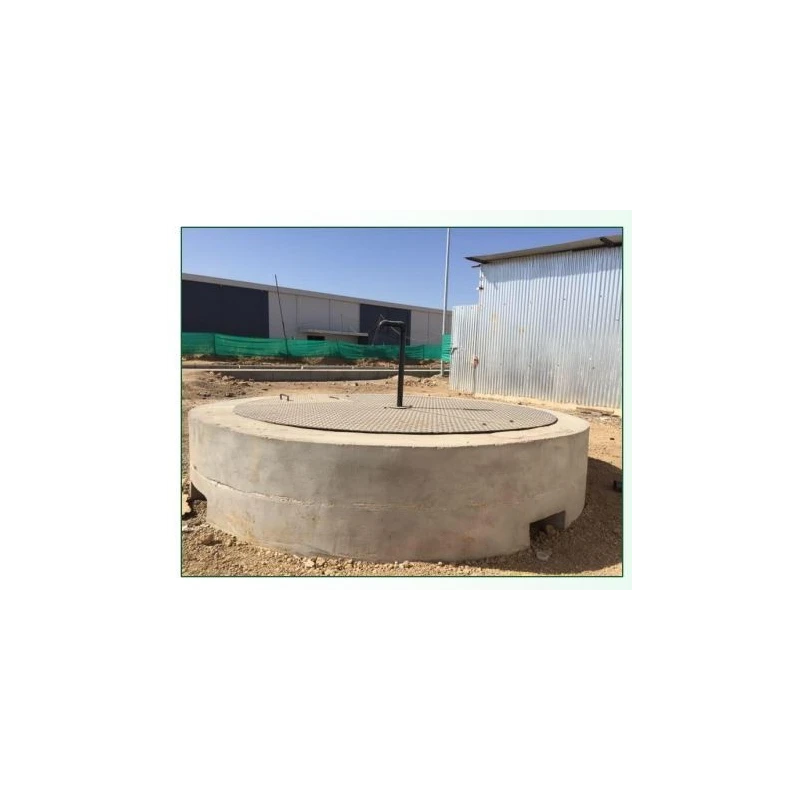

Surface Rain Water harvesting through Dual V Wire Technology, This technology is unique in many ways. It uses Gravitational Energy and the use of eco-friendly materials having a long-life span.The system consists of a silt trap unit, a recharge well (5 to 6 meters with 20% filtration media consisting of crushed stone, gravels, coarse sand, activated carbon, and charcoal; and the rest for storage of water) and a recharging bore (20 to 60 meters) at the bottom of the recharge well. The rainwater is led through a water channel and first reaches the silt trap, which allows for silt to settle down in the chamber. The overflow water is led into the Injection Well fitted with the FL V-Wire filter unit through a horizontally connected pipe. It then passes through a multilayer of filtration media placed at the top of the Injection Well

• High quality filtration
• Most modern design
