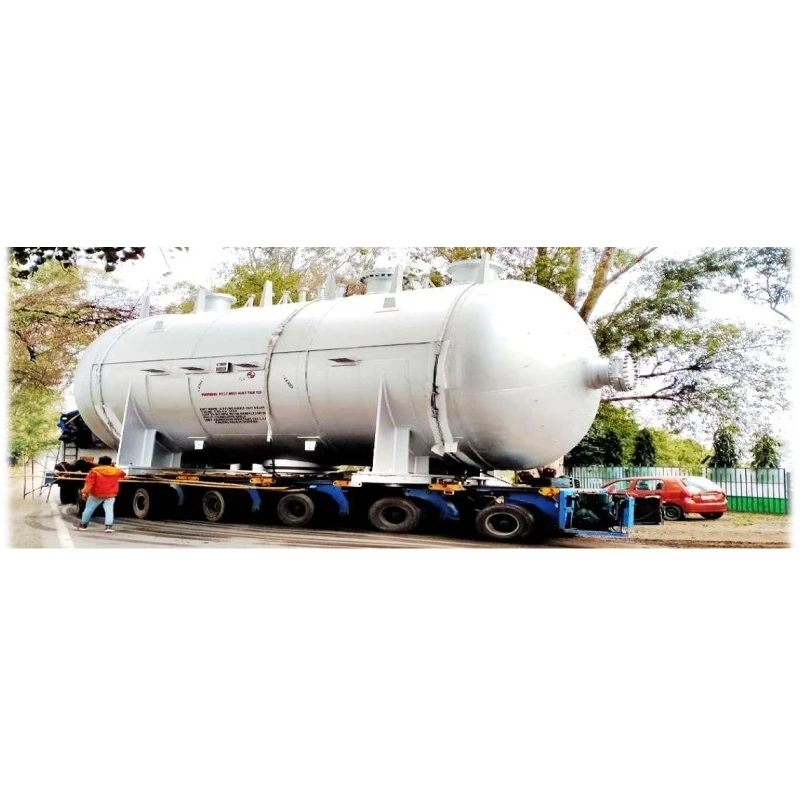

High Pressure Vessels Digesters And Heat Exchangers
Specifications
| Hydro Test Pressure | 65 Bar |
|---|---|
| ASME | U stamp reactor |
| Type of Reactor | High Pressure Vessels Digesters And Heat Exchangers. |
| Plate Thk | 50+3 mm |
| Total Nozzles | 23 Nos (5 inclined at 45 Degree) |
| Design Temp | 2630C |
| Plate Thk. | 50+3 mm |
Key Features
- MOC of Shell : SA516 GR.70 Shell Thickness & Length: 14MM THK. & 2000MM LG OD of Shell: 280000 MM MOC of Tube Sheet: SA240 TYPE 316L Tube Sheet Thickness & Dia: 65 MM THK. 2400MM OD Tube to Tube Sheet Joint Type: Welding TPI: LRA Sector: Hydrocarbon
Product Description
High Pressure Vessels Digesters And Heat Exchangers We strictly adhere to ASME Sec- VIII Div-1 and we are experienced for manufacturing pressure vessels that are made from Carbon Steel, Stainless Steel ,Duplex 2205,Explosion Bonded Plates etc.Manufacturing CapabilityWe have following in-house Manufacturing capabilities:Lifting Capacity Upto100TonsPlate Bending Facility up to 120MMAutomatic submerged Arc Welding MachinesCNC Vertical Turning Lathes & Horizontal BorersStress Relieving FurnacesHydro test FacilityWe have inhouse design facilities, such as PV Elite, Auto Cad, Solid Works (to handle all kinds of 3D modeling and drafting) and Stad Pro etc.
- Surface Area: 345 M2 Size & Thk. of Tube (Seamless): 60.3 MM O.D. X 2MM THK. Tube Length : 2000MM LG.
- MOC of Tubes: SA213 TP 316L No. of Tubes: 913 No. of Pass: 1
