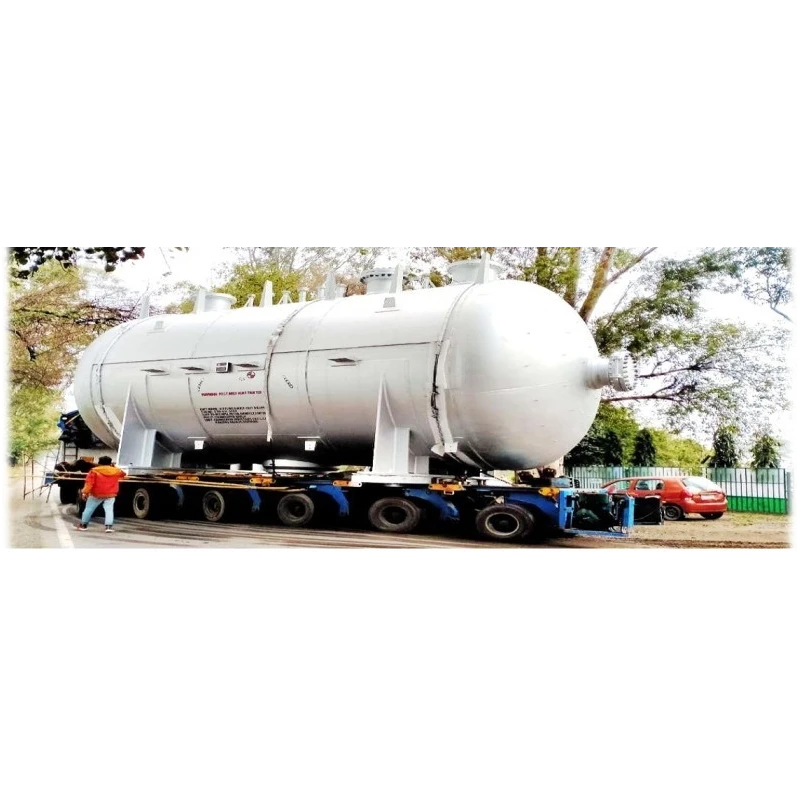

High Pressure Vessels And Heat Exchangers
Specifications
| Hydro Test Pressure | 65 Bar |
|---|---|
| ASME | U stamp reactor |
| Type of Reactor | Cyclic Reactor. |
| Plate Thk | 50+3 mm |
| Total Nozzles | 23 Nos (5 inclined at 45 Degree) |
| Design Temp | 2630C |
| Plate Thk. | 50+3 mm |
Key Features
- MOC of Shell : SA516 GR.70 Shell Thickness & Length: 14MM THK. & 2000MM LG OD of Shell: 280000 MM MOC of Tube Sheet: SA240 TYPE 316L Tube Sheet Thickness & Dia: 65 MM THK. 2400MM OD Tube to Tube Sheet Joint Type: Welding TPI: LRA Sector: Hydrocarbon
Product Description

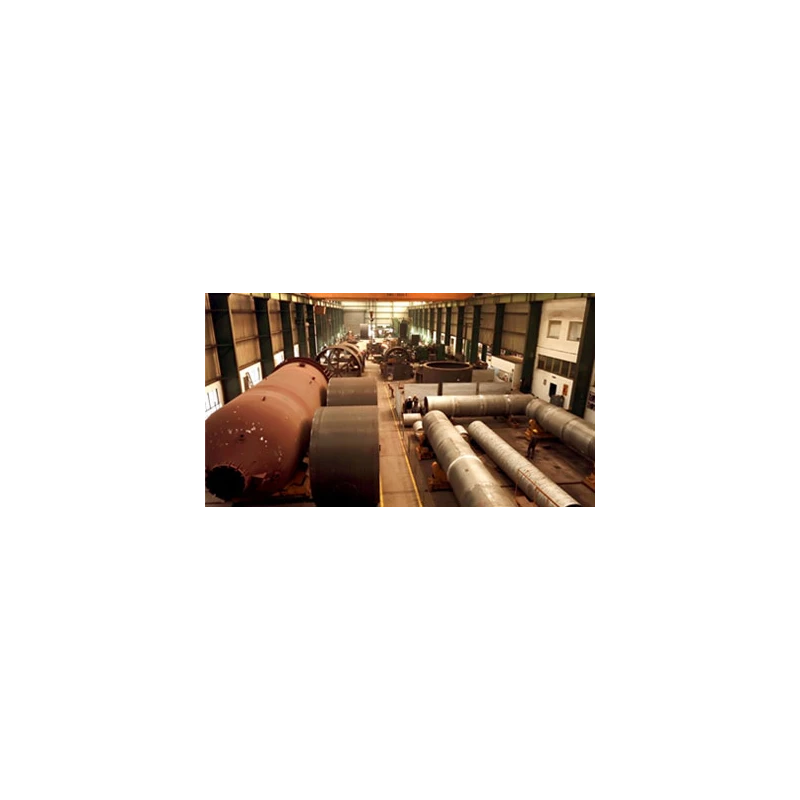

High Pressure Vessels And Heat Exchangers We strictly adhere to ASME Sec- VIII Div-1 and we are experienced for manufacturing pressure vessels that are made from Carbon Steel, Stainless Steel ,Duplex 2205,Explosion Bonded Plates etc.Manufacturing CapabilityWe have following in-house Manufacturing capabilities:Lifting Capacity Upto100TonsPlate Bending Facility up to 120MMAutomatic submerged Arc Welding MachinesCNC Vertical Turning Lathes & Horizontal BorersStress Relieving FurnacesHydro test FacilityWe have inhouse design facilities, such as PV Elite, Auto Cad, Solid Works (to handle all kinds of 3D modeling and drafting) and Stad Pro etc.
- Surface Area: 345 M2 Size & Thk. of Tube (Seamless): 60.3 MM O.D. X 2MM THK. Tube Length : 2000MM LG.
- MOC of Tubes: SA213 TP 316L No. of Tubes: 913 No. of Pass: 1
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hydro test pressure for this high pressure vessel is 65 Bar.
The shell is made from SA516 GR.70, while the tube sheet is constructed from SA240 TYPE 316L.
The design temperature for this unit is 2630°C.
This model features a total of 913 tubes.
The shell has a thickness of 14 mm, while the seamless tubes have a thickness of 2 mm.
The total surface area of this heat exchanger is 345 m².
This model is classified as a cyclic reactor.
There are a total of 23 nozzles, with 5 inclined at a 45-degree angle.
It strictly adheres to ASME Sec-VIII Div-1 standards and is marked with a U stamp reactor.
The manufacturing facility has a lifting capacity of up to 100 tons.
Automatic submerged arc welding machines are used in the construction of this pressure vessel.
