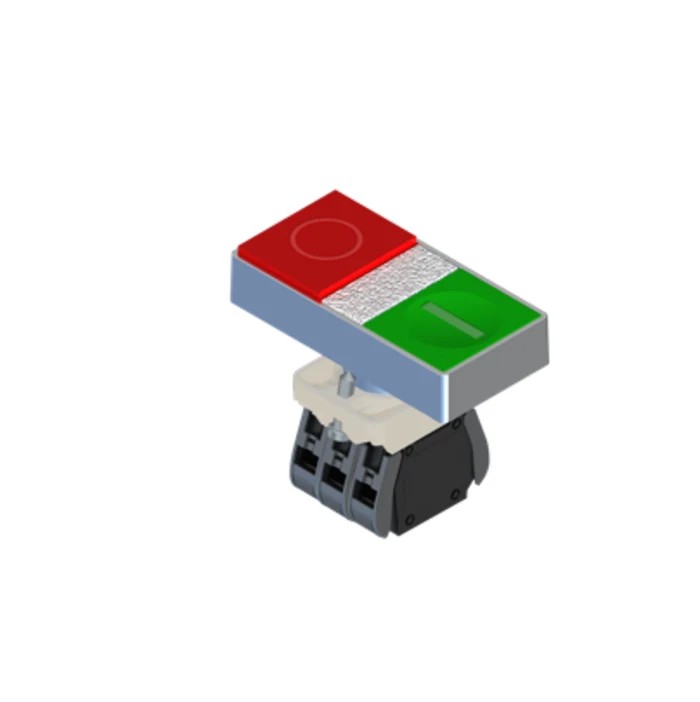

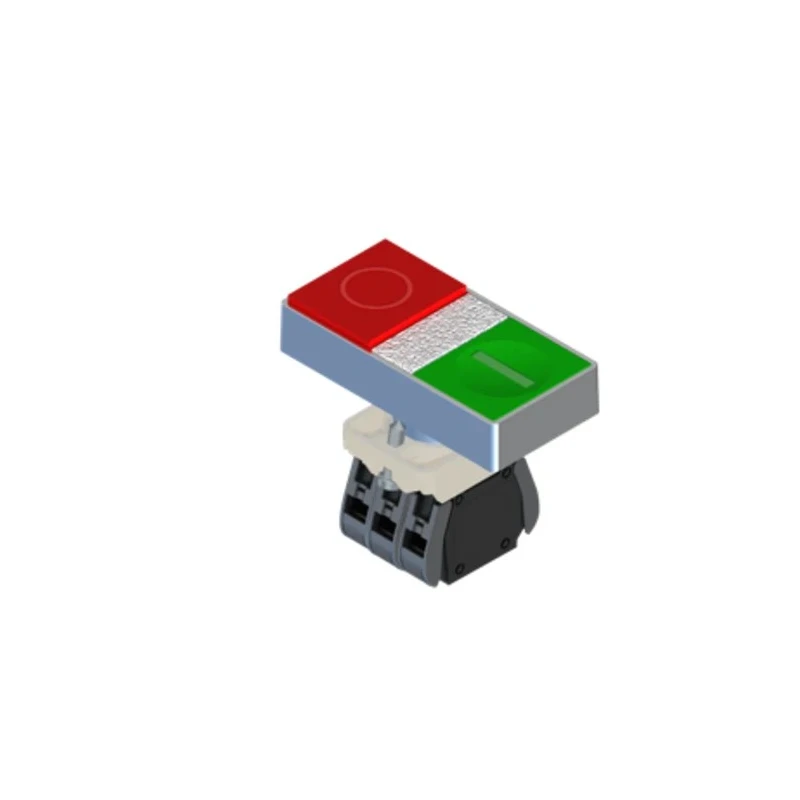

RS PRO Illuminated Push Button Complete Unit Panel Mount 23 mm Cutout Red Green 1 NO/1 NC IP65
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Colour | Red, Green |
| Body Material | Chrome Plated Metal |
| Model | IP65 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Standards/Approvals | EN, UKCA, CE, UL |
| Cutout Diameter | 23mm |
| Push Button Actuation | Momentary |
| Push Button Colour | Red, Green |
| Push Button Style | Square |
| Illumination Voltage | 24V |
| Connecting Terminals | Screw with captive cable clamp |
| Push Buttons | Flush or Extended |
| Chrome-plated Zamak, Extended Push Buttons - RS stock no | 239-8188 |
| Thermoplastic, Flush Push Buttons - RS stock no | 239-8203 |
| Thermoplastic, Extended Push Buttons - RS stock no | 239-8204 |
Key Features
- This unit is panel mount with a 23 mm cutout diameter for easy installation.
- The push buttons feature momentary actuation and come in red and green colors.
- It includes 1 normally open and 1 normally closed contact configuration for versatile control applications.
- Constructed with chrome plated metal body for durability and resistance.
- Rated IP65 for protection against dust and water ingress suitable for harsh environments.
- Operating temperature range from -25°C to 70°C allowing use in diverse industrial settings.
- Illumination voltage is 24V, enhancing visibility of the active state of the push buttons.
- Terminals use screw type connections with captive cable clamps ensuring secure wiring.
Product Description
RS PRO IP65 Illuminated Push Button Complete Unit is a premium industrial-grade panel mount switch designed for precise and reliable control in automation and electrical systems. Featuring a 23 mm cutout diameter and dual illuminated push buttons in red and green, this unit supports 1 normally open (NO) and 1 normally closed (NC) contact configuration with momentary actuation for high-speed machine start/stop functions and other control operations.
The robust chrome plated metal body construction offers excellent mechanical strength and corrosion resistance, making it suitable for rigorous industrial environments. Its IP65 ingress protection rating guarantees dust-tight sealing and protection against water jets, enabling safe operation in harsh and demanding conditions.
The push buttons can be flush or extended style with optional white LED pilot light illumination powered at 24V, providing clear operator feedback. Screw terminals with captive cable clamps ensure secure and durable electrical connections for reliable performance over time.
Operating temperature ranges from -25°C to 70°C, supporting a wide variety of industrial, automotive, building, and lighting control applications. Certified to meet EN, UKCA, CE, and UL standards, the unit is engineered to offer safe and dependable operation across global markets.
This illuminated push button unit is ideal for start/stop and control panel applications requiring clear operator interface and dependable switching performance. Installation is straightforward through a standard 23 mm panel cutout, secured by the included support base and screws.
This unit is panel mount with a 23 mm cutout diameter for easy installation. The push buttons feature momentary actuation and come in red and green colors. It includes 1 normally open and 1 normally closed contact configuration for versatile control applications.
Constructed with chrome plated metal body for durability and resistance. Rated IP65 for protection against dust and water ingress suitable for harsh environments. Operating temperature range from -25°C to 70°C allowing use in diverse industrial settings.
Illumination voltage is 24V, enhancing visibility of the active state of the push buttons. Terminals use screw type connections with captive cable clamps ensuring secure wiring. Complies with EN, UKCA, CE, and UL standards for safety and reliability.
Commonly used in automotive, industrial controls, building automation, and lighting control applications. Explore a wide range of RS PRO industrial control products and switches on EnvMart to meet your electrical control system requirements efficiently and reliably.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cutout diameter for this unit is 23 mm, allowing for easy installation in standard panel mounts.
It features a contact configuration of 1 normally open (NO) and 1 normally closed (NC), providing versatile control options.
The operating temperature range for this unit is from -25°C to 70°C, making it suitable for diverse industrial environments.
This illuminated push button uses screw type terminals with captive cable clamps, ensuring secure and reliable wiring connections.
The illumination voltage for the push buttons is 24V, enhancing visibility of their active state.
The body of this model is constructed from chrome plated metal, providing durability and resistance.
The unit has an IP65 rating, which provides protection against dust and water ingress, suitable for harsh environments.
This push button complies with EN, UKCA, CE, and UL standards, ensuring safety and reliability in operation.
The push buttons are available in red and green colors, allowing for clear visual differentiation during operation.
Yes, the push buttons can be configured in either flush or extended styles, depending on installation preferences.
This unit is commonly used in automotive, industrial controls, building automation, and lighting control applications.
Installation is straightforward through a standard 23 mm panel cutout, secured by the included support base and screws.
