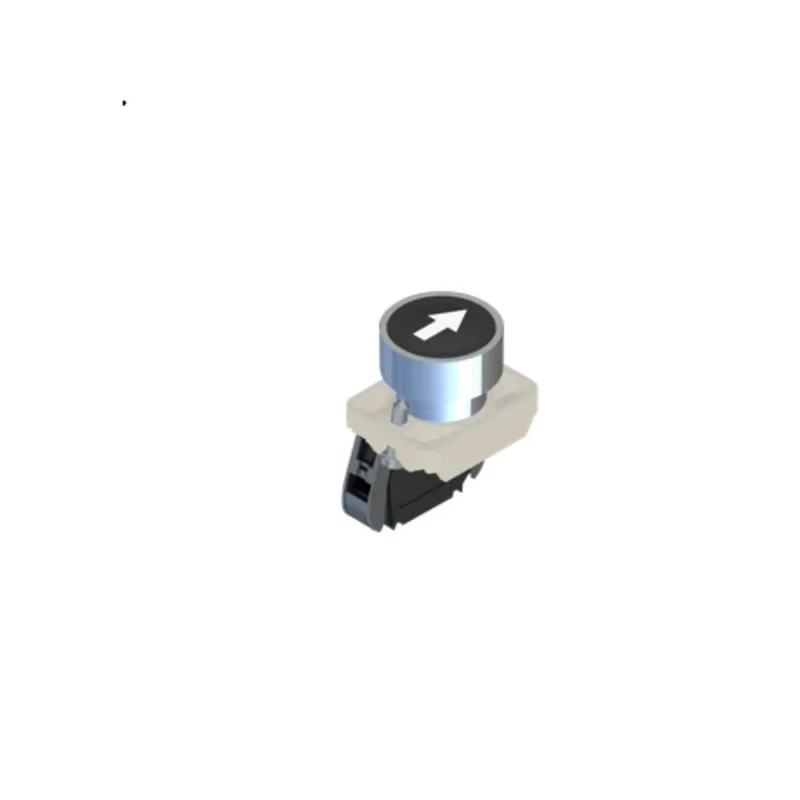

RS PRO Push Button Complete Unit Panel Mount 23 mm Cutout Black SPST IP65 239-8182
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Colour | Black, Red, Blue, Green, Yellow available |
| Body Material | Chrome Plated Zamak |
| Outer Diameter | 30 mm |
| Model | 239-8182 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Standards/Approvals | EN, UKCA, UL, CE |
| Cutout Diameter | 23mm |
| Push Button Actuation | Momentary |
| Push Button Colour | Black |
| Push Button Shape | Flush |
| Push Button Style | Round |
| Illumination Voltage | 24V |
| Connecting Terminals | Screw with captive cable clamp |
Key Features
- The push button is momentary actuated, designed for start/stop machine applications.
- Constructed with a chrome plated Zamak body providing durability and corrosion resistance.
- Features SPST contact configuration with screw terminals and captive cable clamp for secure connections.
- Operates over a temperature range from -25°C to 70°C with 24V illumination voltage.
- Offers front panel mounting with a 22.5 mm cut-out and 30 mm outer diameter.
- Available in multiple colors including black, red, blue, green, and yellow.
- Certified to international standards including EN, UKCA, UL, and CE.
- IP65 protection ensures suitability for harsh industrial environments.
Product Description
RS PRO 239-8182 Push Button Complete Unit is a premium flush push button designed for panel mounting with a 23 mm cutout diameter. This unit features a momentary actuation and a SPST contact configuration ideal for reliable on/off control in electrical circuits.
Manufactured with a robust chrome plated Zamak body, the push button provides enhanced durability and resistance to corrosion, suitable for demanding industrial settings. The black, round, flush style actuator delivers a sleek appearance and user-friendly operation.
The unit operates safely within a wide temperature range from -25°C to 70°C and supports a 24V illumination voltage for visibility. It is mounted securely through a 22.5 mm hole in panels up to 6 mm thick, supported by a stable base and screw terminals equipped with captive cable clamps ensuring firm electrical connections without movement.
With an IP65 ingress protection rating, this push button is dust tight and protected against water jets, making it suitable for use in harsh indoor and outdoor environments. RS PRO's commitment to quality is also evident by compliance with international standards such as EN, UKCA, UL, and CE certifications.
The push button units are widely used across various sectors including automotive, building and public works, industrial controls, lighting controls, and medical equipment, offering engineers a dependable switching solution.
The push button is momentary actuated for start/stop applications. Constructed with chrome plated Zamak body for durability. Features SPST contact configuration and screw terminals with captive cable clamps. IP65 rating ensures protection against dust and water jets.
Complies with EN, UKCA, UL, and CE standards for safety and reliability. Operates within -25°C to 70°C temperature range. Available in multiple colors including black, red, blue, green, and yellow. Panel mount with 23 mm cutout and 30 mm outer diameter.
Suitable for industrial, automotive, medical, and lighting control applications.
This RS PRO push button complete unit offers a reliable and durable solution for various electrical switching requirements. Explore more in the Push Button Complete Unit category at EnvMart for similar and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The push button features an SPST (Single Pole Single Throw) contact configuration, which is suitable for reliable on/off control in electrical circuits.
It operates safely within a temperature range of -25°C to 70°C, making it suitable for various environmental conditions.
The unit supports a 24V illumination voltage, enhancing visibility during operation.
This push button requires a cutout diameter of 23 mm for panel mounting.
It is equipped with screw terminals and a captive cable clamp, ensuring secure and stable electrical connections.
The unit has an IP65 rating, which means it is dust-tight and protected against water jets, suitable for harsh environments.
The push button is constructed with a chrome plated Zamak body, providing durability and corrosion resistance.
It is available in multiple colors including black, red, blue, green, and yellow.
This model is designed for panel mounting, making it suitable for various applications.
It complies with several international standards including EN, UKCA, UL, and CE, ensuring safety and reliability.
This push button is widely used in sectors such as automotive, industrial controls, lighting controls, and medical equipment.
The outer diameter of the push button is 30 mm, which is relevant for installation in panels.
