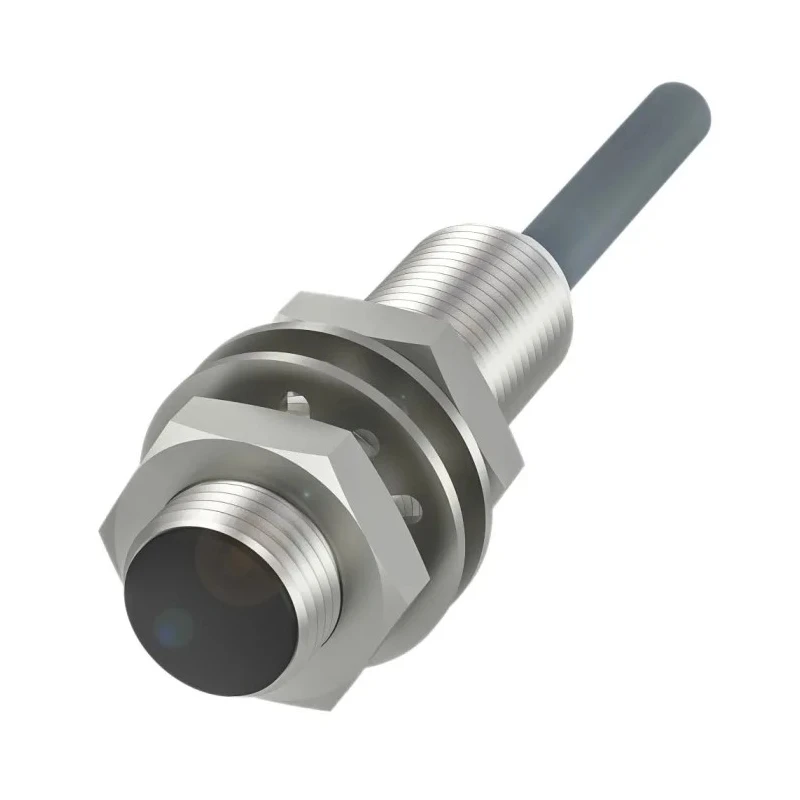

BALLUFF Threaded Barrel Inductive Proximity Sensor M12 x 1 2-Wire 36V DC 100mA BES0474

BALLUFF BES0474 Threaded Barrel Inductive Proximity Sensor is a precision sensor designed for industrial applications requiring reliable metal object detection. Operating at 36V DC with a maximum switching current of 100mA, this sensor features a thread size of M12 x 1 and an overall length of 43mm, enabling easy flush mounting in compact environments.

The sensor body is constructed from nickel plated brass, offering robust resistance to corrosion and mechanical wear. It conforms to IP67 standards, providing protection against dust ingress and temporary water immersion, making it suitable for demanding industrial, manufacturing, automation, and control environments.

The BES0474 sensor detects metal objects with a maximum detection range of 3mm and operates effectively in temperature ranges from -25°C to 70°C. Its 2-wire shielded cable output delivers fast switching performance up to 1.3 kHz, supporting applications requiring rapid and reliable detection.

Thread size M12 x 1 with 43mm sensor length for compact installation. Durable nickel plated brass housing with IP67 dust and water protection. Flush mount type sensor suitable for metal object detection in harsh environments.

2-wire shielded output ensuring reliable switching performance. Operates reliably from -25°C up to 70°C ambient temperature. Maximum switching frequency of 1.3 kHz enables fast response. Maximum supply voltage of 36V DC for industrial automation compatibility.

Output current of 100mA supports switching typical automation loads. Ideal for industrial automation, manufacturing processes, and metal detection tasks.

This sensor is widely used in industrial control, manufacturing automation, robotics, and metal detection applications. It provides dependable sensing performance in harsh or demanding factory environments. Explore more industrial sensors and automation equipment on EnvMart for optimized process control and operational efficiency.
