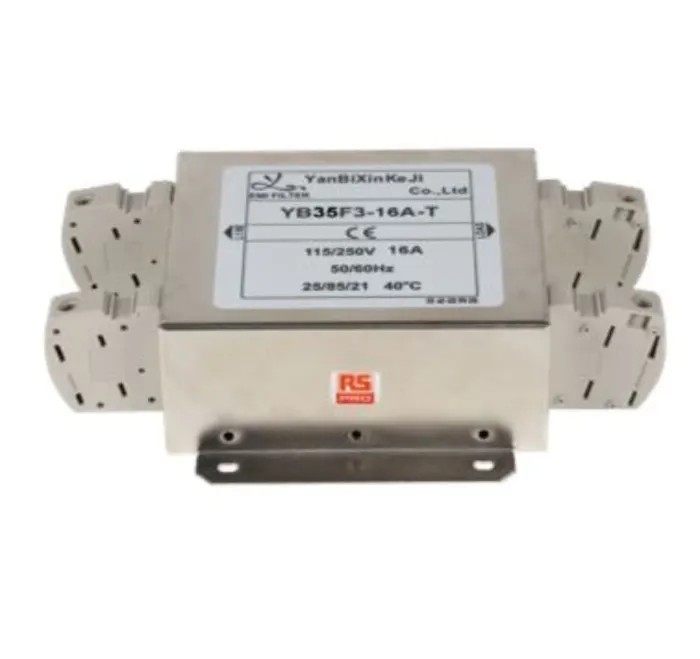

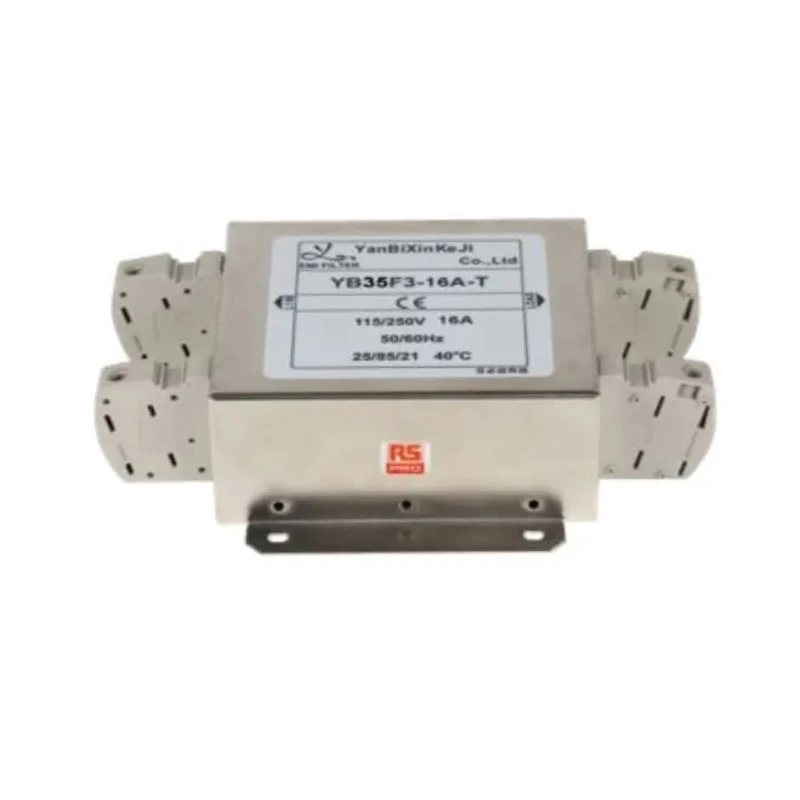

RS PRO 16 A 250V AC 50Hz, 60 Hz Chassis Mount Power Line Filter Terminal Block 1 Phase 237-8736
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 50mm |
| Length | 130mm |
| Model | 237-8736 |
| Depth | 120mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Maximum Operating Temperature | 85°C |
| Number Of Stages | 2 |
| Resistance | 330kΩ |
| Capacitance | 2.2μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 16A |
| Number of Phases | 1 |
| Leakage Current | 3.4mA |
| Maximum Voltage | 250V ac |
| Inductance | 4mH |
| Termination Style | Terminal Block |
Key Features
- Designed to prevent interference from radio frequencies and transient voltage spikes.
- Compact form factor suitable for small and medium-sized electrical equipment.
- Features 2 stages with capacitance of 2.2 μF and inductance of 4 mH for effective EMI filtering.
- Operating temperature range from -25°C to 85°C ensures reliability in industrial environments.
- Complies with international standards including IEC, UL1283, and CQC GB 15288 for safety and quality.
- Reduces conducted frequencies that may impair device performance and protects against electrical noise.
- Terminal block termination style allows simple and secure electrical connections.
- Leakage current is low at 3.4 mA, enhancing operational safety.
Product Description
RS PRO 237-8736 is a high-quality chassis mount power line filter designed by RS PRO, rated for 16 A current and 250 V AC voltage, suitable for 1-phase power systems operating at 50Hz and 60Hz. This power line filter significantly reduces electromagnetic interference (EMI) and transient voltage spikes that can damage sensitive electronic equipment.
This compact filter features a 2-stage configuration with a capacitance of 2.2 μF and inductance of 4 mH. Its terminal block termination ensures secure and reliable electrical connections, making it ideal for integration into industrial, medical, and household electrical devices requiring interference suppression.
The filter operates reliably over a temperature range of -25°C to 85°C and features a low leakage current of 3.4 mA, complying with strict international standards such as CQC GB 15288, CSA C22.2 No.8, EN 60939, GB 15287-2008, IEC, and UL1283, which guarantee safety and performance.
Its tough chassis mounting design and compact dimensions of 130mm length, 120mm depth, and 50mm height allow easy installation in various applications, providing durable filtering performance. The resistor value of 330 kΩ adds to circuit protection, reducing noise and improving equipment lifespan.
This RS PRO power line filter is particularly useful in industrial manufacturing, laboratory equipment, commercial electronics, and HVAC systems where electromagnetic interference can disrupt operations. It helps ensure safe, reliable, and efficient device function by mitigating RFI and electrical noise.
Designed to prevent interference from radio frequencies and transient voltage spikes. Compact form factor suitable for small and medium-sized electrical equipment. Features 2 stages with capacitance of 2.2 μF and inductance of 4 mH for effective EMI filtering.
Operating temperature range from -25°C to 85°C ensures reliability in industrial environments. Complies with international standards including IEC, UL1283, and CQC GB 15288 for safety and quality. Reduces conducted frequencies that may impair device performance and protects against electrical noise.
Terminal block termination style allows simple and secure electrical connections. Leakage current is low at 3.4 mA, enhancing operational safety. Explore RS PRO Power Line Filters and EMI protection devices for a wide range of industrial and electronic components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this power line filter is 16 A.
It operates at a maximum voltage of 250 V AC and supports frequencies of 50 Hz and 60 Hz.
This filter features a capacitance of 2.2 μF and an inductance of 4 mH.
The dimensions of this chassis mount filter are 130 mm in length, 120 mm in depth, and 50 mm in height.
It features a terminal block termination style for secure electrical connections.
The operating temperature range is from -25°C to 85°C.
The leakage current is low at 3.4 mA, enhancing operational safety.
It complies with international standards including IEC, UL1283, and CQC GB 15288 for safety and quality.
This model has a 2-stage configuration for effective EMI filtering.
It is suitable for industrial manufacturing, laboratory equipment, commercial electronics, and HVAC systems.
The resistor value included in this filter is 330 kΩ, which aids in circuit protection.
This power line filter is manufactured in China.
