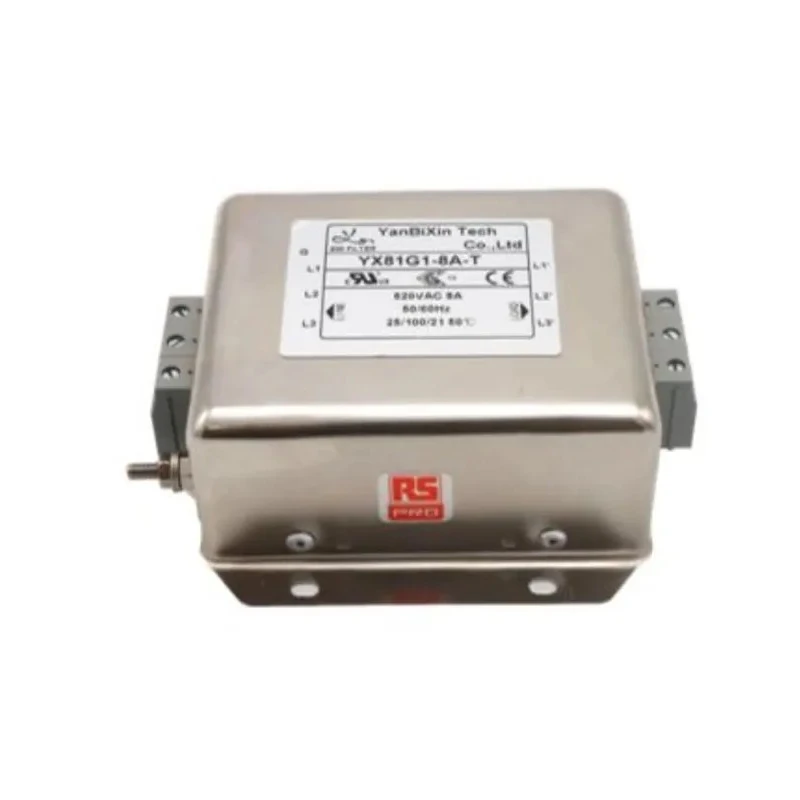

RS PRO 8 A 520V AC 50Hz, 60 Hz Chassis Mount Power Line Filter Terminal Block 3 Phase 237-8738
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 39mm |
| Length | 85mm |
| Model | 237-8738 |
| Depth | 65mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 1mΩ |
| Capacitance | 0.22μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 8A |
| Number of Phases | 3 |
| Leakage Current | 2.6mA |
| Maximum Voltage | 520V ac |
| Inductance | 2.5mH |
| Standards/Approvals | UL1283, IEC, EN 60939, CSA C22.2 No.8 |
| Termination Style | Terminal Block |
Key Features
- This power line filter reduces conducted radio frequency interference to protect electronic devices.
- Capacitance of 0.22μF and inductance of 2.5mH ensure efficient filtering performance.
- Designed for operating temperatures from -25°C to 100°C for reliable industrial usage.
- Compact chassis mounting design measuring 85mm length, 65mm depth, and 39mm height for easy installation.
- Compliance with UL1283, IEC, EN 60939, and CSA C22.2 No.8 standards ensures safety and quality.
- Leakage current limited to 2.6mA helping reduce unwanted currents for sensitive equipment protection.
- Low resistance of 1mΩ promotes minimal power loss during operation.
Product Description
RS PRO 237-8738 Chassis Mount Power Line Filter is designed for filtration of conducted radio frequency interference in 3-phase electrical systems. It supports a maximum current of 8A and a maximum voltage of 520V AC with operating frequency of 50Hz and 60Hz, making it suitable for varied industrial and commercial environments.
This power line filter incorporates a terminal block termination style and is mounted on chassis to provide a compact footprint measuring 85mm in length, 65mm in depth, and 39mm in height. It features a capacitance of 0.22μF and inductance of 2.5mH which effectively reduces unwanted noise and transient voltage spikes that can harm electronic circuits.
The robust design operates reliably within temperatures ranging from -25°C to 100°C, suitable for demanding conditions. Leakage current is minimized to 2.6mA, protecting connected equipment from stray currents. The filter's resistance is kept low at 1mΩ to avoid energy losses.
Compliant with international standards UL1283, IEC, EN 60939, and CSA C22.2 No.8, this filter delivers assured quality and safety for applications in industrial machinery, medical devices, household equipment, and other electronics requiring EMI/RFI suppression.
Manufactured in China, this RS PRO unit ensures interference-free power connections and enhances longevity and reliability of sensitive electronic systems. This power line filter reduces conducted radio frequency interference to protect electronic devices.
Capacitance of 0.22μF and inductance of 2.5mH ensure efficient filtering performance. Designed for operating temperatures from -25°C to 100°C for reliable industrial usage. Compact chassis mounting design measuring 85mm length, 65mm depth, and 39mm height for easy installation.
Compliance with UL1283, IEC, EN 60939, and CSA C22.2 No.8 standards ensures safety and quality. Leakage current limited to 2.6mA helping reduce unwanted currents for sensitive equipment protection. Low resistance of 1mΩ promotes minimal power loss during operation.
Explore our full range of Power Line Filters and EMI protection components to find the ideal solution for your application needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 8A.
It can handle a maximum voltage of 520V AC.
This power line filter operates at frequencies of 50Hz and 60Hz.
The dimensions are 85mm in length, 65mm in depth, and 39mm in height.
It has a capacitance of 0.22μF and an inductance of 2.5mH.
The leakage current is limited to 2.6mA.
It can operate within a temperature range of -25°C to 100°C.
It features a terminal block termination style.
It complies with UL1283, IEC, EN 60939, and CSA C22.2 No.8 standards.
The resistance is kept low at 1mΩ.
This unit supports a 3-phase electrical system.
It has a single stage design.
