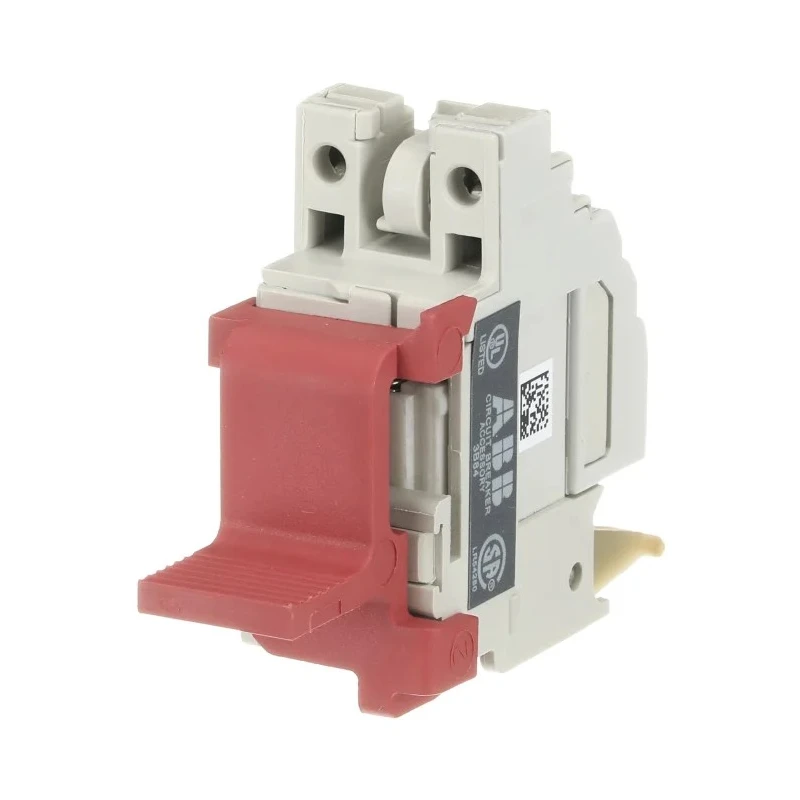

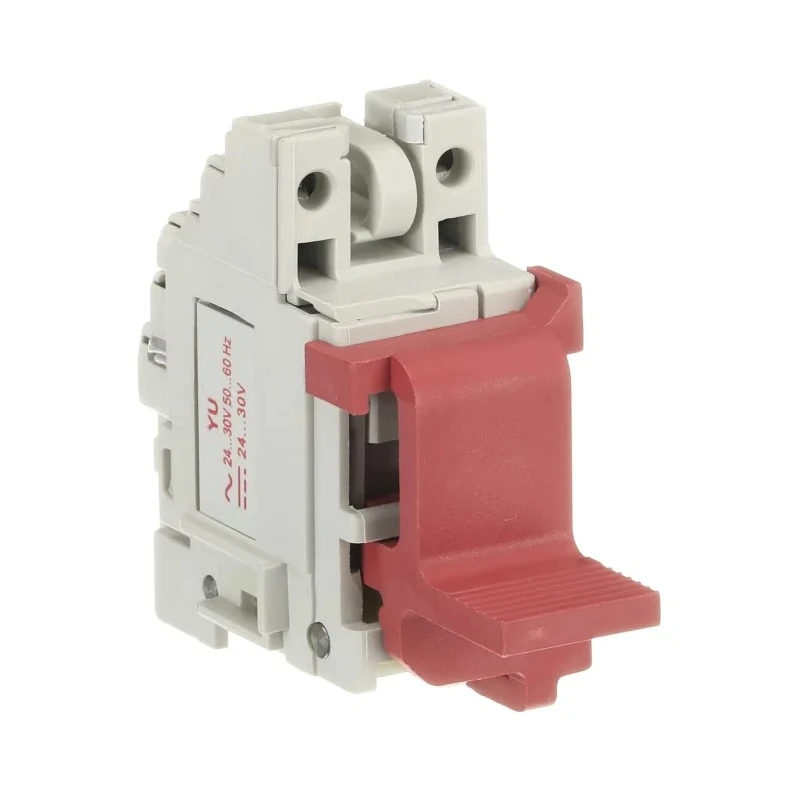

ABB Tmax XT Circuit Breaker Accessory 1SDA066389R1 UVR XT1..XT4 24-30VAC/DC, 30V AC/DC, 110mm Width, 60mm Height, 140mm Depth

Free Delivery in India | Lowest Global Shipping Charges

ABB Tmax XT Circuit Breaker Accessory 1SDA066389R1 UVR XT1..XT4 24-30VAC/DC, 30V AC/DC, 110mm Width, 60mm Height, 140mm Depth



Category Circuit Breaker Accessories Brand ABB Condition New

Specifications

Country of Origin	Italy
Range	Tmax XT
Brand	ABB
Height	60mm
Model	1SDA066389R1 UVR XT1..XT4 24-30VAC/DC
Depth	140mm
Width	110mm
Series	Tmax XT
Standards/Approvals	RoHS, IEC
Rated AC Voltage	30V ac
Rated DC Voltage	30V dc

Key Features

Operates at 24-30VAC/DC control voltages for versatile panel integration.
Compact dimensions of 110mm width, 60mm height, and 140mm depth enable efficient panel installation.
Complies with RoHS directives and IEC standards for safety and quality.
Provides voltage-operated relay functionality for remote tripping in control cabinets.
Suitable for industrial automation and electrical distribution environments.
Designed for use alongside modular circuit breakers in Tmax XT systems.
Ideal for retrofit upgrades and add-on relay protective schemes.
Requires 140mm projection from mounting face for appropriate panel depth.

Product Description

ABB 1SDA066389R1 UVR XT1..XT4 24-30VAC/DC Circuit Breaker Accessory, part of the Tmax XT series, operates with a rated AC and DC voltage of 30V. This accessory is engineered to integrate seamlessly with Tmax XT circuit breakers as a voltage-operated relay module for control and protection applications within electrical panels.

The accessory accepts both AC and DC control signals within the 24-30V range, offering flexible interfacing capabilities for industrial and automation control systems. It features a compact footprint measuring 110mm in width, 60mm in height, and 140mm in depth, enabling efficient and predictable panel clearance planning.

Manufactured in Italy, the accessory conforms to RoHS directives and IEC standards, ensuring regulatory compliance and high-quality performance.

This device is suitable for remote tripping of circuit breakers within control cabinets and is commonly used in integration with automation control cabinets utilizing low-voltage signals. It supports protective schemes requiring add-on relay functionality and is ideal for retrofit upgrades in existing panels equipped with Tmax XT breakers.

Installers should allow a 140mm projection from the mounting face and reserve a front-access envelope of 110mm width by 60mm height to ensure unobstructed wiring and servicing access. The product is specifically designed for industrial automation, electrical distribution, and manufacturing environments.

Operates with 24-30VAC/DC control voltage range. Compliant with RoHS and IEC standards. Compact dimensions for optimized panel space. Enables remote trip functionality in circuit breakers. Suitable for retrofit and new installations in automation systems.

Manufactured in Italy for assured quality.

This circuit breaker accessory is a vital component for enhancing the functionality and control of Tmax XT circuit breaker systems. Explore additional ABB products and Circuit Breaker Accessories at EnvMart to support your industrial automation needs.
