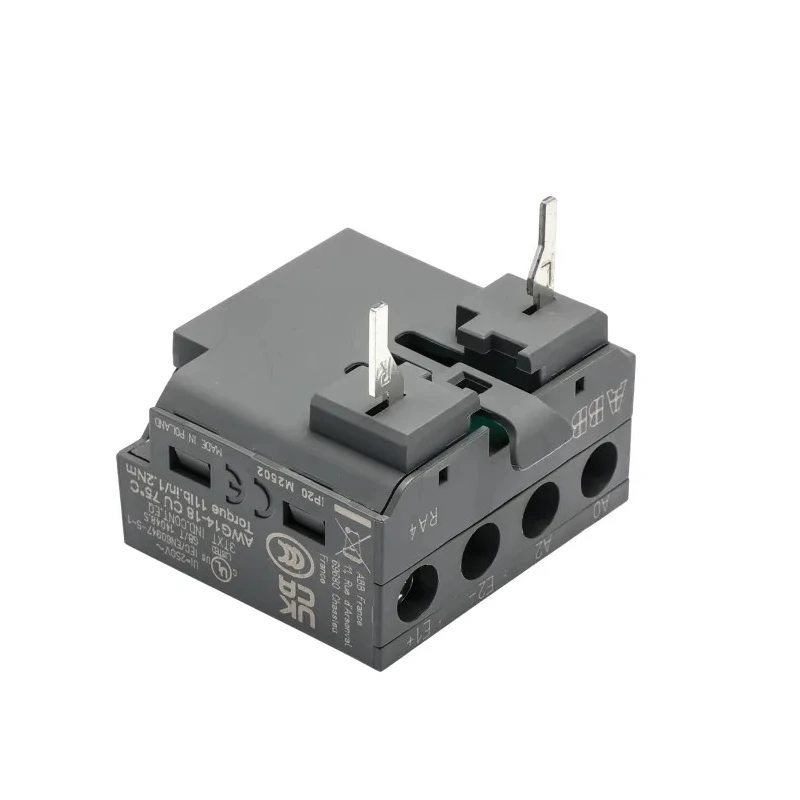

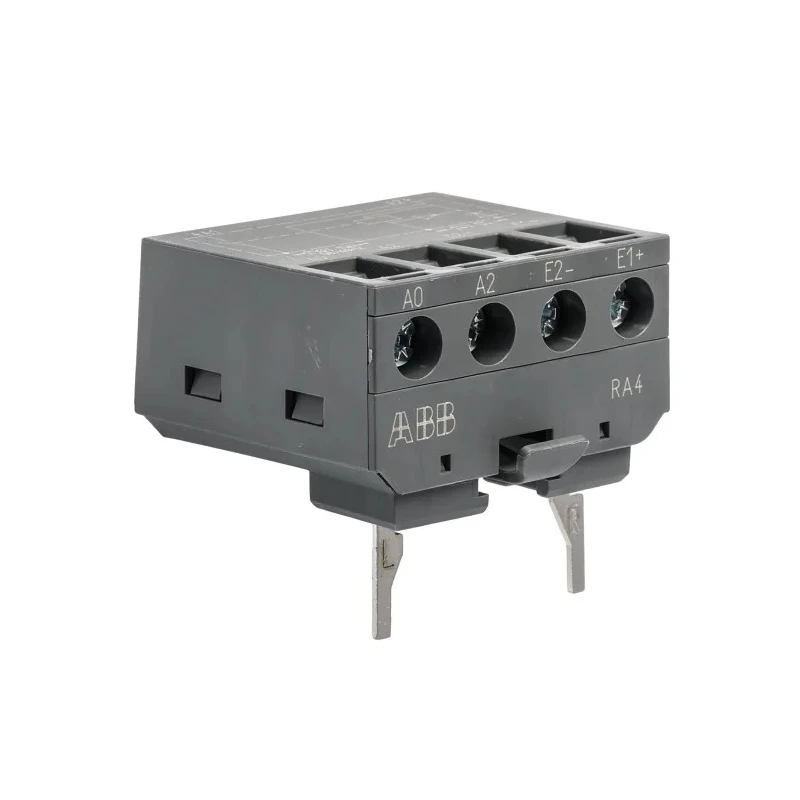

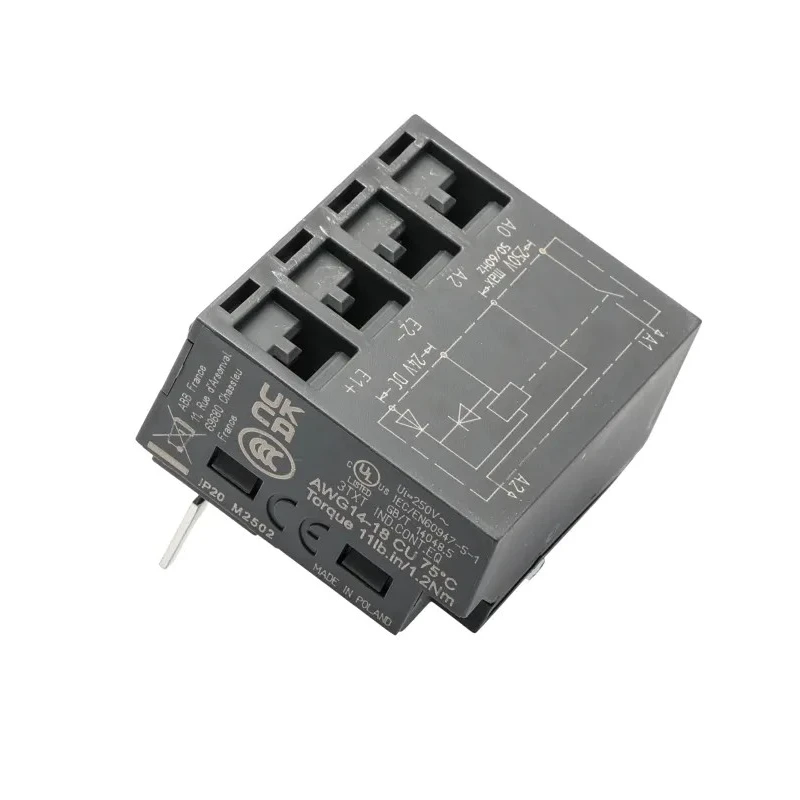

ABB RA4 Series Electromechanical Interface Relay PCB Mount 24V Coil SPST 1SBN060100R1000

ABB 1SBN060100R1000 RA4 Series Electromechanical Interface Relay is a compact PCB-mounted relay designed specifically to handle 24V DC control signals from PLCs or similar sources. This model features a single-pole single-throw (SPST) contact configuration with a low-power 24V coil that optimizes efficient operation while reducing power consumption.

The relay's compact dimensions of 31.16 mm length, 31.16 mm width, and 40.5 mm height ensure easy installation on printed circuit boards, facilitating streamlined integration into various automation systems. Screw terminal connections guarantee dependable and secure wiring, suitable for both flexible and rigid cables, improving installation reliability.

Withstand temperatures from -40°C to 70°C, this interface relay suits challenging industrial and mechanical environments, maintaining consistent performance and durability. It supports switching of AC and DC voltages up to 24V, making it ideal for controlling coils of contactors ranging from AF09 to AF96 models.

The relay offers a maximum electrical switching frequency of 600 cycles per hour, enabling fast and effective switching response in dynamic automation applications. The product carries CE certification, reflecting its compliance with European safety and quality standards.

The interface relay features a low-power 24V DC coil for energy-efficient operation. Compact PCB mounting supports easy integration in control panels. Screw terminal connections offer secure and reliable wiring. Operating temperature range from -40°C to 70°C supports harsh industrial environments.

Designed for switching both AC and DC voltages up to 24V for versatile applications. Ideal for operating coils of contactors such as AF09 to AF96 in automation systems. Robust CE-certified design ensures compliance and reliability in industrial installations.

Supports electrical switching frequency of up to 600 cycles per hour for responsive control.

This relay assembly is well-suited for various industrial domains including manufacturing automation, electrical control systems, HVAC, and mechanical system control where reliable low-power signaling is required. The compact size and secure terminal design contribute to reduced installation complexity and maintenance time.
