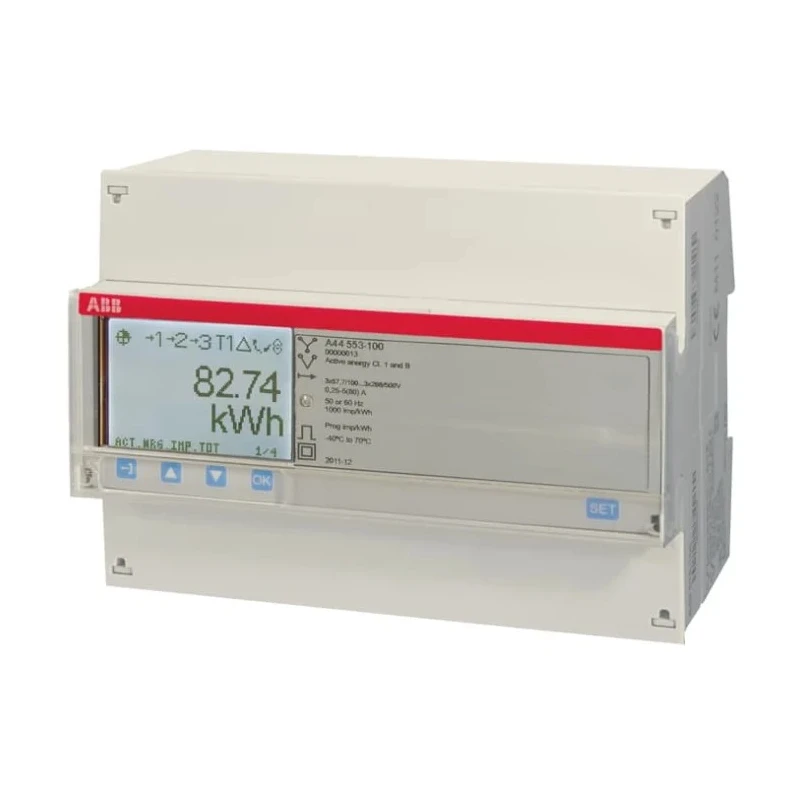

ABB 3 Phase Transformer Connected LCD Energy Meter 4 x I/O Channels 57.7 to 288V 2CMA170546R1000 A44 TRI MBUS 6A TC PLATI

ABB 2CMA170546R1000 A44 TRI MBUS 6A TC PLATI Energy Meter is a high-performance three-phase transformer connected energy meter from ABB's A44 series. It operates within a voltage range of 57.7 to 288V and provides accurate energy measurements with ±0.5% meter accuracy, ensuring precise tracking of electrical consumption in industrial and commercial environments.

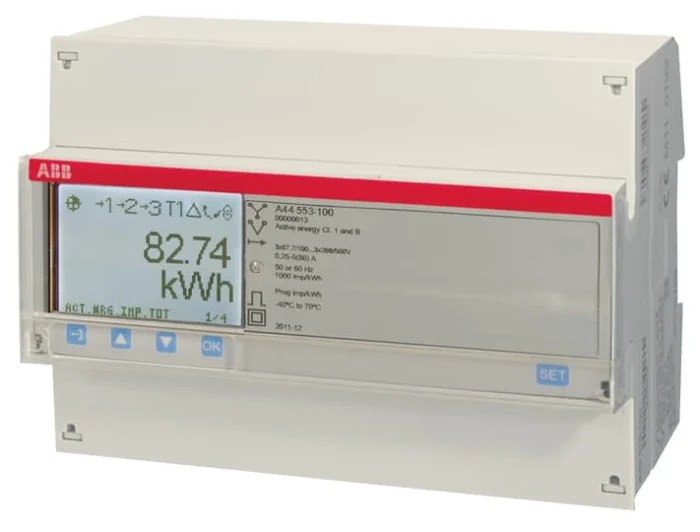

This meter features a backlit LCD display capable of showing readings in kWh, kvarh, and KVAh units. Its pixel-based screen enables easy viewing of data for effective monitoring and analysis. With 4 inputs and 4 outputs, the device supports versatile control and integration into advanced automation systems.

The meter is designed to endure stringent environmental conditions with an operating temperature range from -40°C to 70°C and an IP20 rating that safeguards against accidental touch and ingress of objects larger than 12mm. Its compact form factor of 123mm width, 26.5mm height, and 65mm depth allows installation in tight spaces, while the lightweight design (363 grams) facilitates swift DIN rail mounting.

The integrated real-time clock with 5ppm accuracy aids in logging and timestamping energy data, enhancing the utility of the meter in power management and monitoring solutions. Compliant with EN/IEC standards, this product assures quality and regulatory adherence, ideal for a range of applications including power management systems, circuit breaker monitoring, and usage in retail outlets.

The meter's robust construction and broad operating parameters make it well suited for use in industrial automation, electrical distribution, manufacturing plants, HVAC systems, and other energy monitoring tasks where reliability and precision are paramount.

Operates under a broad voltage range of 57.7 to 288V suitable for various industrial setups. Features a backlit pixel-based LCD for clear readings including kWh, kvarh, and KVAh. Equipped with 4 inputs and 4 outputs enabling versatile monitoring and control.

Rated for a meter accuracy of ±0.5% with integrated real-time clock for precise timing and data accuracy. Compact dimensions of 123 mm width, 26.5 mm height, and 65 mm depth allow installation in confined spaces. Designed for harsh environments with an operating temperature range from -40°C to +70°C and IP20 protection.

Lightweight at 363 grams, suitable for easy DIN rail mounting in electrical panels. Complies with EN/IEC standards ensuring reliability and regulatory conformity. Ideal for power management systems, circuit breaker monitoring, and usage in retail outlets.
