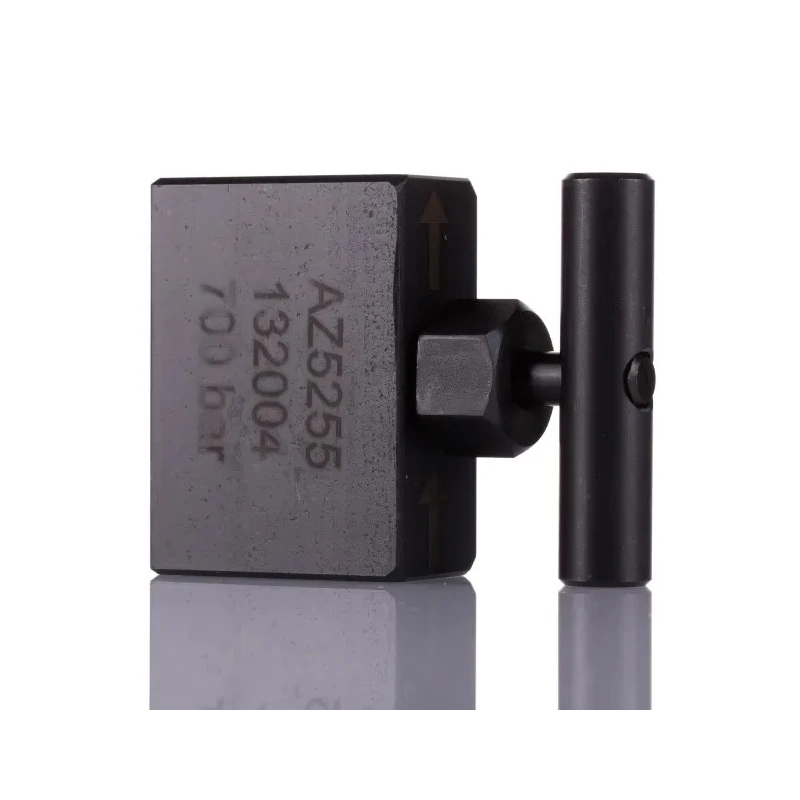

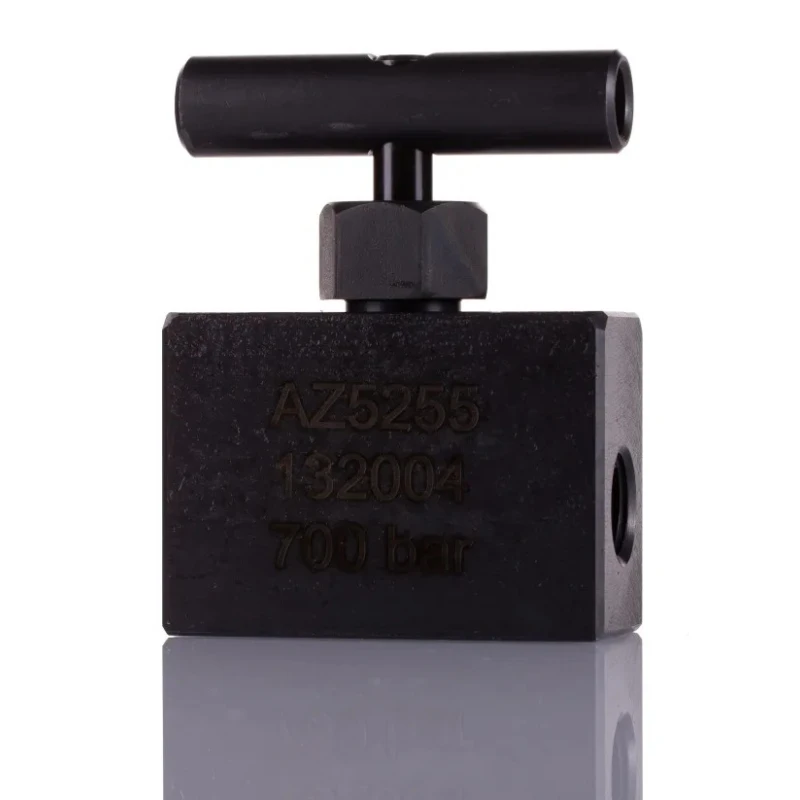

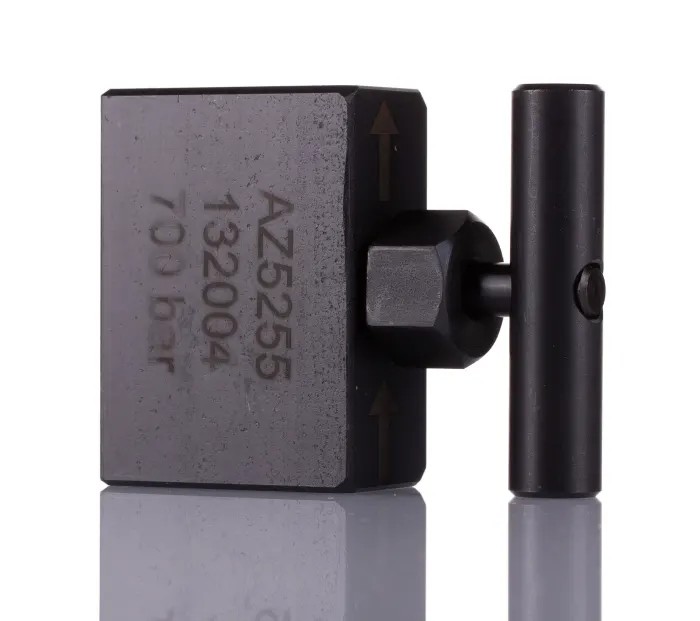

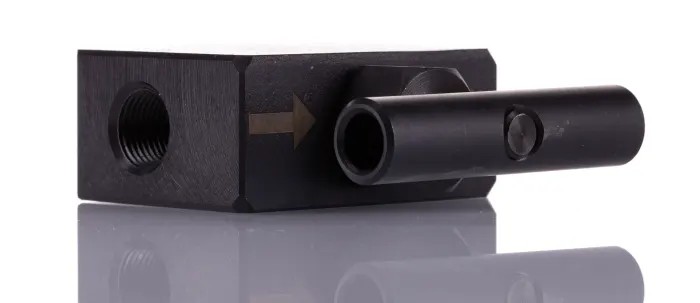

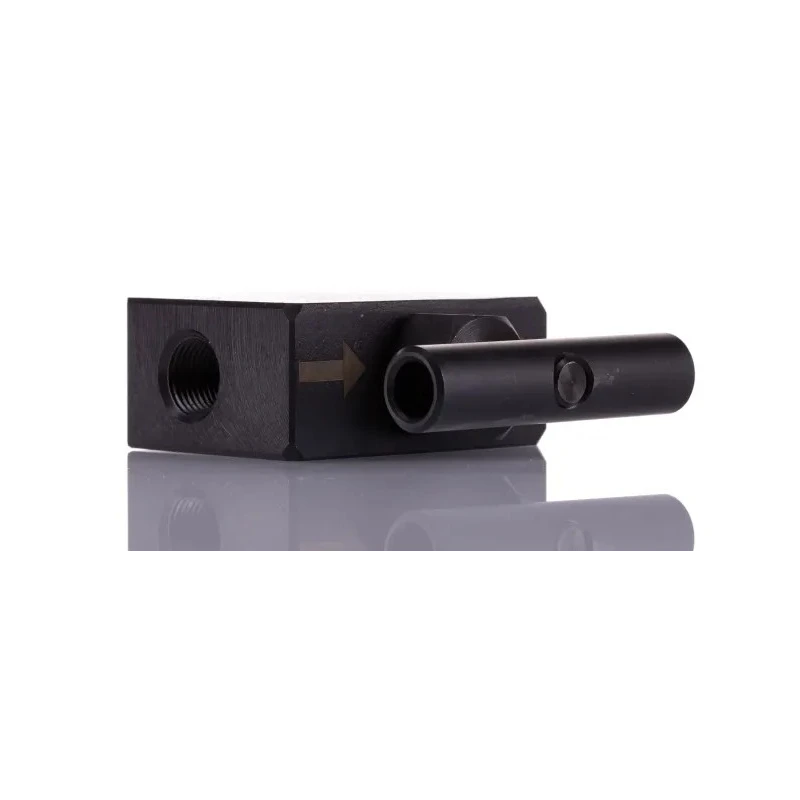

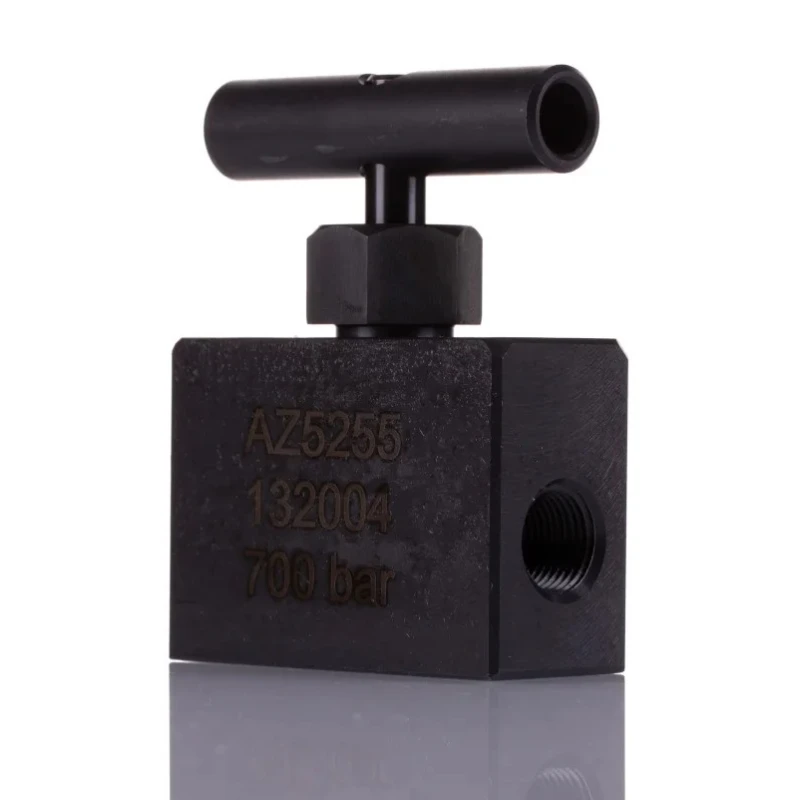

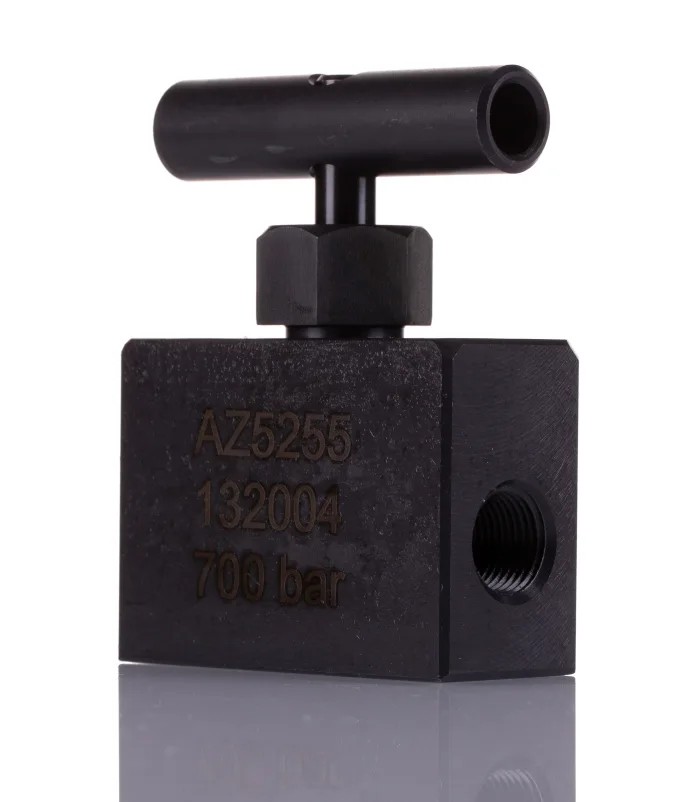

RS PRO Hydraulic Flow Control Valve, Steel Body, NPT 3/8 Inch, 700 bar, 2 Port 235-8213

RS PRO 235-8213 is a manually operated hydraulic flow control valve designed for precise regulation of hydraulic fluid flow in industrial and manufacturing hydraulic systems. It features a robust steel body with a black nitrate finish to resist corrosion and wear, making it suitable for heavy-duty applications requiring reliable pressure control.

This valve is equipped with standard NPT 3/8 inch female threaded connections, including one inlet and two outlet ports. The design ensures fluid flows in one direction only and retains system pressure when the valve is fully closed, preventing backflow and leakage through mechanical sealing.

The valve supports a maximum operating pressure of 700 bar, making it suitable for high-pressure fluid power applications such as hydraulic machinery, industrial automation, and fluid power circuits. Its compact square form factor, with a width of 40 mm and length of 70 mm, allows easy integration into hydraulic manifolds or pipe assemblies.

Key features include a conical-shaped inlet thread for exact connection, two 3/8 NPT hydraulic couplers for outlets, and a safe operational design to protect pressure gauges and maintain flow control accuracy. This valve is also commonly referred to as a snubber valve, used to regulate speed and protect sensitive hydraulic components.

Manually operated Hydraulic Flow Control Valve allowing precise fluid regulation. Steel body with black nitrate finish ensures durability and corrosion resistance. 3/8 inch NPT female inlet and two outlet ports for flexible hydraulic connections.

Maximum operating pressure rating of 700 bar for demanding industrial applications. Designed to provide one-directional flow and retention when fully closed. Compact square design measuring 40 mm width and 70 mm length for space-saving installation.

Mechanical sealing prevents leakage ensuring safe and reliable operation. Used to protect hydraulic pressure gauges and control flow in fluid power systems. Suitable for industrial, manufacturing, agricultural, and hydraulic maintenance use cases.

Manufactured in Spain, adhering to RS PRO standards of quality and reliability. Explore the full range of RS PRO hydraulic valves and components on EnvMart for efficient and safe hydraulic system design.
