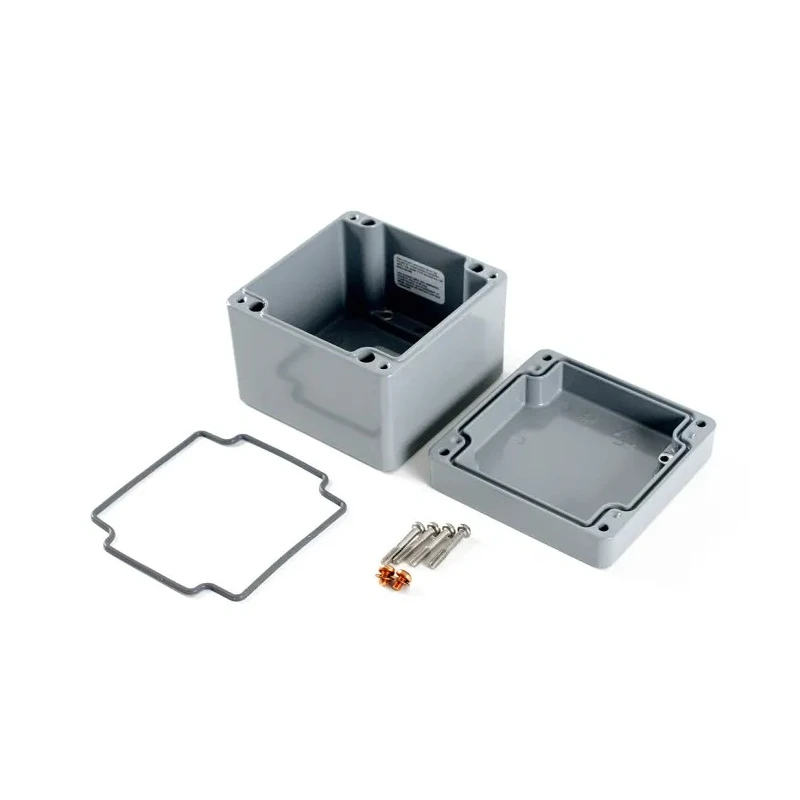

Hammond 1590Z Series Grey Lid Die Cast Aluminium General Purpose Enclosure IP68 IK08 81 mm x 100 mm x 100 mm

Hammond 1590Z080GY is a robust general purpose enclosure constructed from rugged die cast aluminium alloy, designed to protect electronic instruments and components in demanding industrial environments. It features a two-piece tongue and groove construction with a one-piece silicone rubber gasket that is replaceable and provides superior water and dust ingress protection rated at IP68. The gasket is supplied loose inside the enclosure for easy replacement.

The enclosure includes a natural grey lid and a die cast aluminium body, offering excellent strength and impact resistance, rated IK08. Its compact external dimensions measure 81 mm in height, 100 mm in width, and 100 mm in length, with a lid depth of 0.79 inches and total depth of 3.15 inches, making it suitable for various mounting requirements.

This enclosure is easy to install, designed for wall mounting using through box blind hole construction outside the gasket, ensuring the sealing integrity is maintained. It also includes an internal mounting shelf, facilitating neat and secure internal equipment placement.

The product complies with UL E65324 standards, ensuring its reliability and safety for industrial, automation, electrical, and electronic instrument applications. Manufactured in India, it fulfills the need for a thick-walled, water-tight, durable enclosure in harsh environments.

The enclosure body is made of die cast aluminium, providing toughness and machinability. Rated IP68 for dust-tight and continuous immersion protection. Rated IK08 for impact resistance protecting against external mechanical shocks.

Includes a replaceable silicone rubber gasket for high sealing performance. The natural grey lid complements the durable aluminium body. Ideal for housing sensitive electronics in industrial automation and electrical setups.

Compliance with UL E65324 ensures adherence to strict quality and safety standards. Explore the full range of Hammond General Purpose Enclosures on EnvMart for reliable and high-performance electrical protection solutions.
