SKF Self-Aligning Ball Bearing 35 mm ID 80 mm OD 2 Row Non-Metallic Cage Open End 1307 EKTN9/C3

Free Delivery in India | Lowest Global Shipping Charges

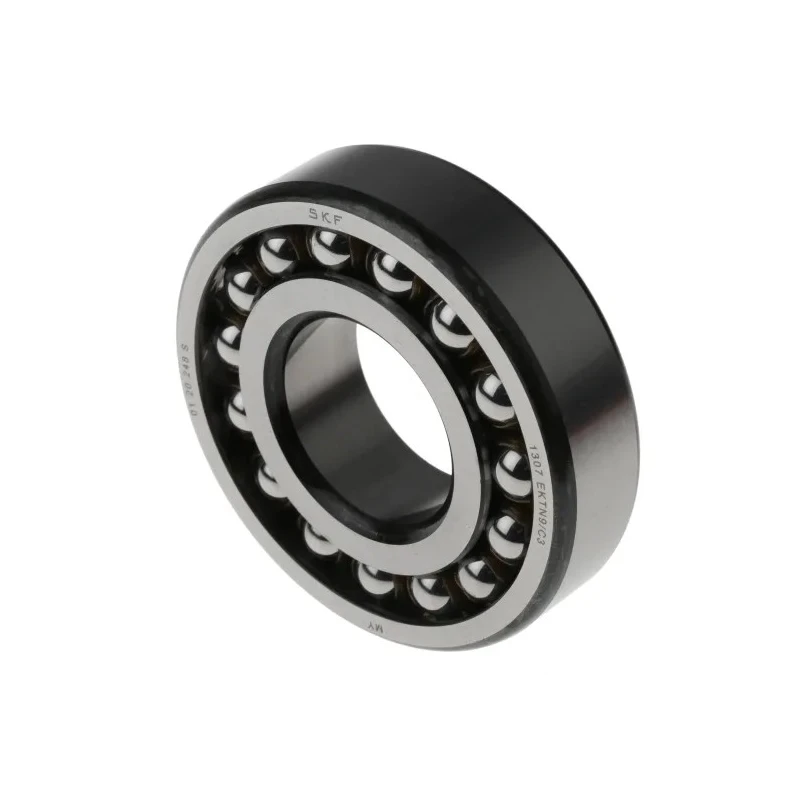

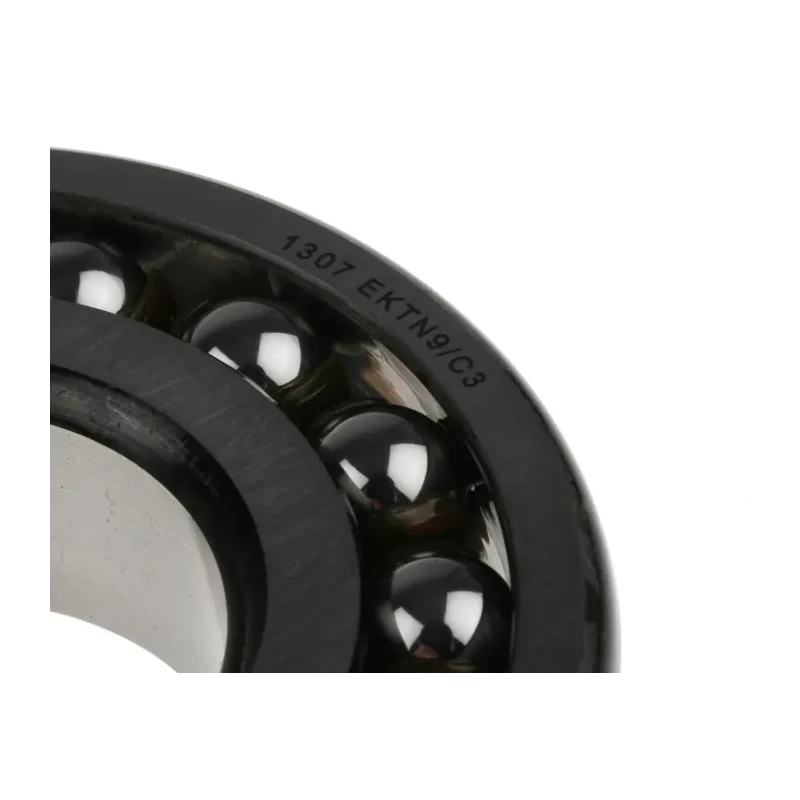

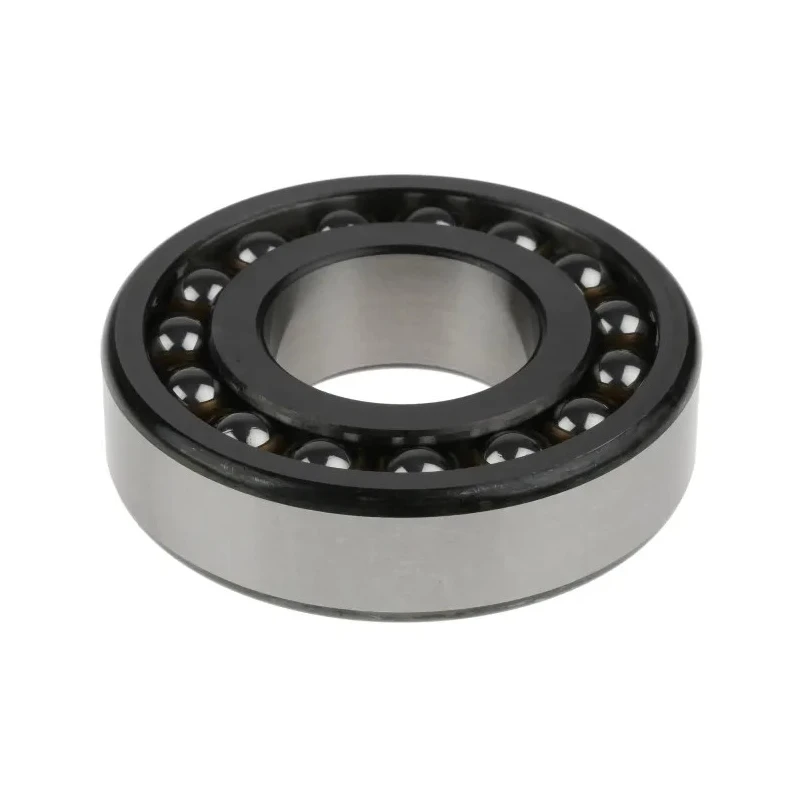

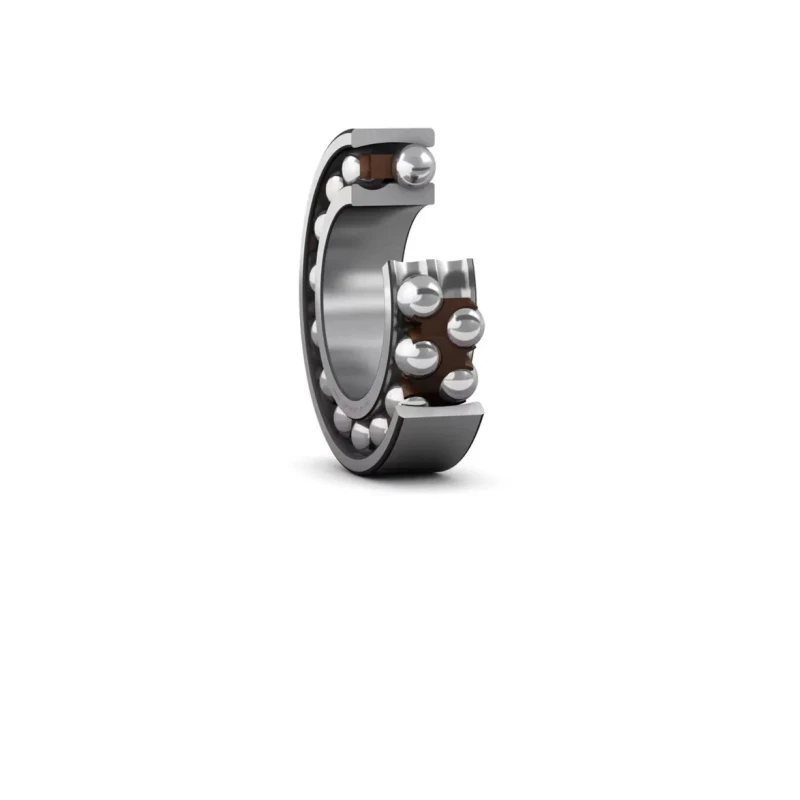

SKF Self-Aligning Ball Bearing 35 mm ID 80 mm OD 2 Row Non-Metallic Cage Open End 1307 EKTN9/C3



Category Rotary Bearings & Housing Units Brand SKF Condition New

Specifications

Country of Origin	India
Brand	SKF
Model	1307 EKTN9/C3
Series	1307
Outside diameter	80mm
Inside Diameter	35mm
Number of Rows	2
Ball Material	Steel
Limiting Speed	11000rpm
Internal Clearance	C3
End Type	Open
Bore Type	Tapered
Bearing Type	Self-aligning Ball Bearing
Cage Material	Non-Metallic
Race Width	21mm
Static Load Rating	0.009kN
Dynamic Load Rating	0.027kN
Tapered bore 1	12 simplifies press-fit mounting on tapered adaptors
It employs a tapered 1	12 bore enabling fitted assembly with a tapered adaptor sleeve or matching housing cone to achieve axial positioning and preload control

Key Features

Two-row ball bearing construction enhances load distribution and supports light-duty rotating assemblies.
C3 internal clearance reduces running friction and accounts for thermal expansion during operation.
Non-metallic cage minimizes electrical conductivity in sensitive applications.
Open end design permits easy visual inspection and lubrication without disassembly.
Dynamic load rating of 0.027 kN supports radial and limited combined loads.
Static load rating of 0.009 kN allows brief stop-loads without deformation.
Limiting speed up to 11,000 rpm for high-speed applications.

Product Description

The SKF 1307 EKTN9/C3 self-aligning ball bearing is engineered for industrial applications requiring precise radial load support and compensation for shaft misalignment. Featuring a 35 mm inside diameter and 80 mm outside diameter, it offers reliable performance in automation actuators, electrical motor shafts, and precision conveyors.

This bearing employs a robust two-row design with steel balls and a non-metallic cage that reduces electrical conductivity risks in sensitive environments. The open-end configuration facilitates straightforward visual inspection and relubrication during operation, enhancing maintenance efficiency.

The tapered 1:12 bore allows for easy and secure assembly using tapered adaptor sleeves or matching housing cones, ensuring precise axial positioning and preload control. With a C3 internal clearance, the bearing maintains reduced running friction and compensates for thermal growth.

Dynamic and static load capacities are suitable for light-duty radial and limited combined loads, making the bearing ideal for electronic manufacturing equipment and high-speed mechanical drives. The limiting speed of 11,000 rpm supports fast rotational applications without compromising durability.

Two-row construction ensures enhanced load distribution and misalignment accommodation. C3 internal clearance optimizes friction and thermal expansion handling. Non-metallic cage design limits electrical conduction concerns.

Open end facilitates maintenance access through visual inspection and lubrication. Tapered bore simplifies mounting with tapered adaptors for axial control. Suitable for automation, electronics manufacturing, motor shafts, and light mechanical drives.

Designed for high-speed operation up to 11,000 rpm.

This SKF bearing is widely used across industrial, manufacturing, automation, and electrical equipment sectors requiring precision bearing solutions. Explore more in the Ball Bearings category on EnvMart for compatible rotary bearing units and accessories.
