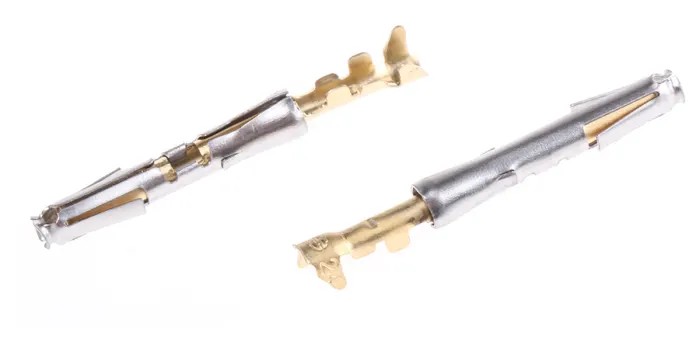

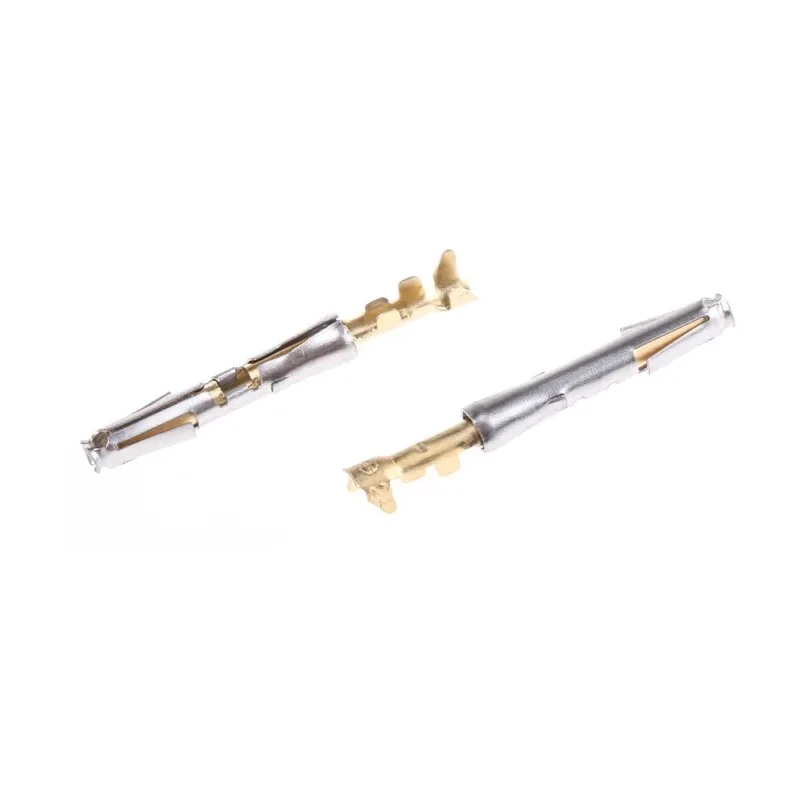

Souriau Sunbank by Eaton Female Crimp Circular Connector Contact Size 20, Wire Size 24, 26 AWG, 5A Current, Gold SC24WL3S25

Souriau Sunbank by Eaton SC24WL3S25 female crimp circular connector contact is a precision-engineered component ideal for electronics and electrical industrial applications. This contact features a contact size of 20 and supports wire sizes of 24 and 26 AWG. The contact is made from high-quality copper alloy and plated with gold over nickel to deliver superior conductivity and corrosion protection, ensuring a long operational life.

This contact supports a current rating of 5 amperes and withstands voltages up to 1.5 kV AC, making it suitable for demanding power and signal transmission environments. The crimp termination type facilitates secure attachment to cables, enhancing mechanical stability and electrical performance.

It is designed to operate reliably within a wide temperature range from -55°C to 125°C, which makes it well-suited for harsh and varied environmental conditions often encountered in industrial, manufacturing, and construction settings.

The contact length is precisely 20.6 mm, ensuring compatibility with Plastic Sealok connectors that feature a robust metal bayonet coupling ring to provide secure locking and durability. Additionally, these connectors include an interfacial seal that meets IP65 standards for sealing against dust and water ingress, critical for outdoor and industrial installations.

The low maximum contact resistance of 15 milliohms guarantees minimal signal loss and high integrity of electrical connections. Cable insulation range for the compatible wire sizes is 0.89-1.57 mm diameter, accommodating standard wire gauges used in many electrical assemblies.

These features collectively make the SC24WL3S25 contact part a reliable choice for engineers and professionals requiring dependable circular connector contacts for wiring harnesses, control panels, instrumentation, and other industrial electronics applications.

Explore the Electronics & Electricals category on EnvMart for more connectors and related components from Souriau Sunbank by Eaton and other reputable brands. Constructed from copper alloy with gold over nickel contact plating for optimal conductivity and corrosion resistance.

Rated for a current of 5A and insulation voltage of 1.5kV AC. Crimp termination type ensures secure and reliable electrical connections. Operates effectively in temperatures from -55°C to 125°C. Compatible with Plastic Sealok connectors featuring metal bayonet coupling rings and IP65 sealing.

Contact length measures 20.6 mm for precise fitment in circular connector assemblies. Maximum contact resistance specified at 15 milliohms for excellent signal integrity. Designed for cable insulation diameters ranging 0.89 to 1.57 mm for 26/24 AWG wire sizes.
