SICK Sensor Actuator Cable Female 3 Way Straight to Male 3 Way Straight, Polyurethane Jacket, 5 YF8U13-050UA1M8U13 / 2096308

SICK YF8U13-050UA1M8U13 / 2096308 Sensor Actuator Cable is a 5 m long industrial cable designed for connecting sensors and actuators with reliable M8 connectors supporting three-contact low-voltage circuits up to 60 volts. The cable features a durable polyurethane jacket that provides resistance to oils and mechanical flexibility, making it ideal for applications requiring frequent movement and high flexibility.

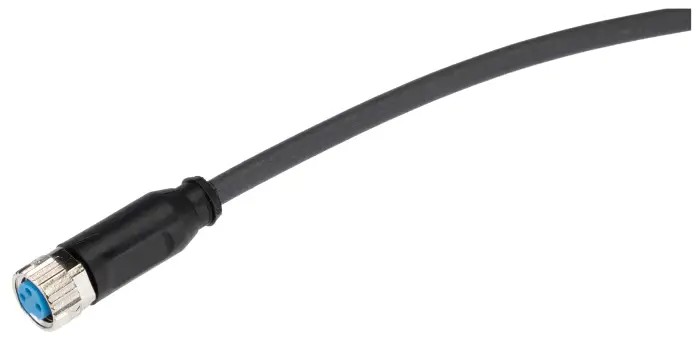

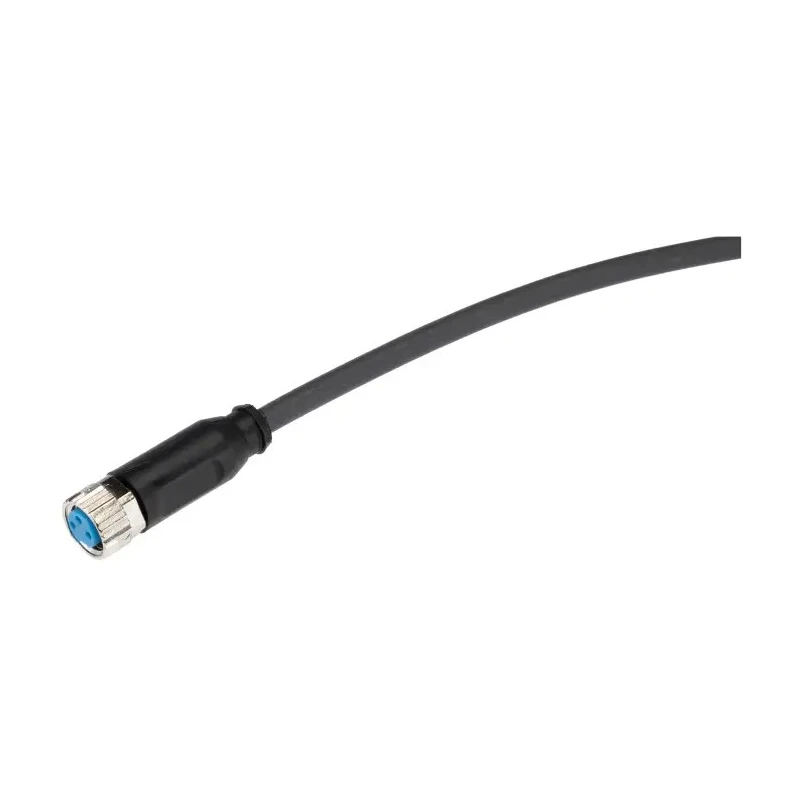

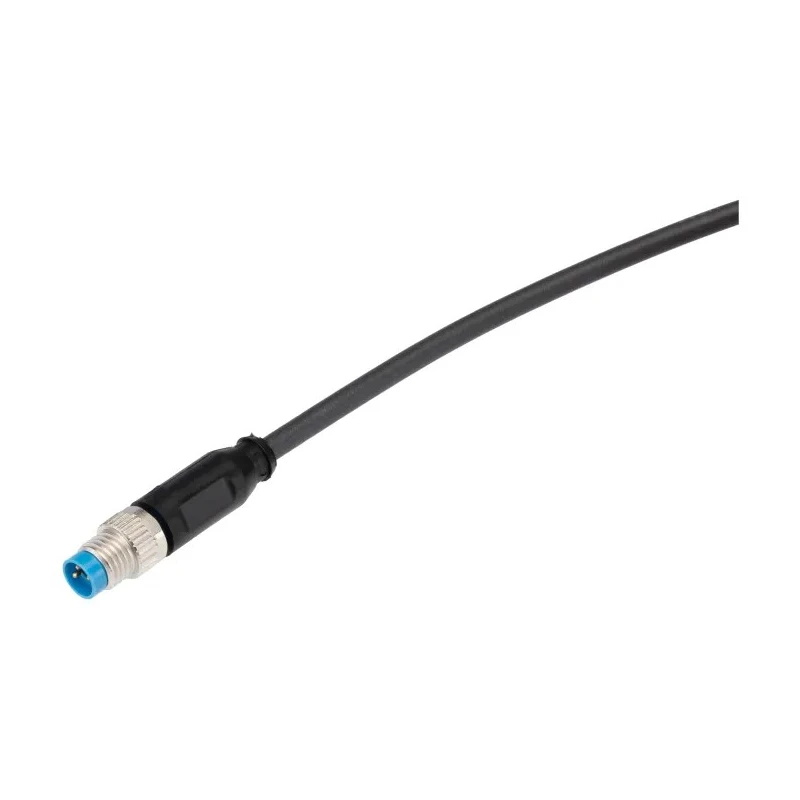

This cable includes a female straight M8 connector on one end and a male straight M8 connector at the other, both coded A and designed to be securely fastened with screw locking nuts for reliable mechanical and electrical contact. The connectors are tightened to a torque of 0.4 N·m to ensure stable connections in industrial environments.

Rated to an IP67 ingress protection level, the cable is suitable for harsh environments including exposure to dust and water jets. It supports drag chain continuous motion installation with a minimum bending radius greater than ten times the cable diameter. The cable can handle traverse speeds up to 3 m/s and travel distances up to 10 m.

Operational temperature ranges support flexible use from −25 °C to +80 °C, stationary installations from −40 °C to +80 °C, and connector heads up to +85 °C, addressing a broad range of industrial environments. The conductor cross-section is 0.25 mm² with a maximum current load of 4 A, rated impulse voltage of 1.5 kV, and typical insulation resistance of 100 MΩ.

This sensor actuator cable is halogen-free and passes flame-retardant tests, making it suitable for installations requiring enhanced fire safety. Usages include conveyor proximity sensor connectivity, automated assembly line cabling, robotic tooling connections, and sensor arrays in production test rigs. It is also ideal for dynamic cable carrier installations.

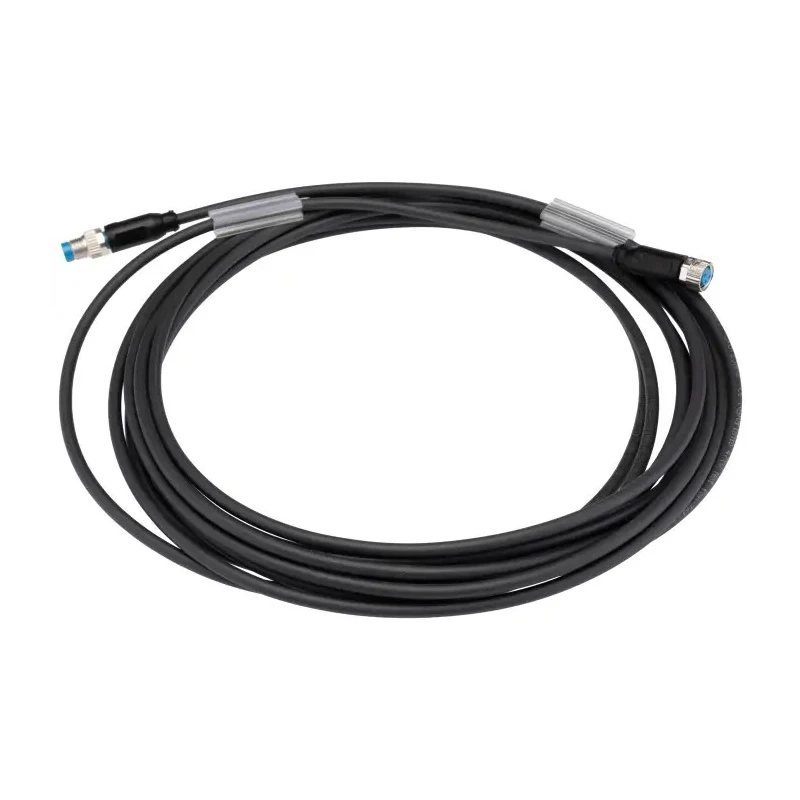

The cable is 5 meters long to extend reach without additional splices. It has a polyurethane jacket for oil resistance and flexibility. Connectors are A-coded M8 screw-lock types; female straight at one end and male straight at the other.

Rated for low-voltage control circuits up to 60 V with IP67 ingress protection. Designed for high-flex applications supporting over 10 million bending cycles. Halogen-free with flame-retardant cable insulation meets safety standards.

Suitable for industrial, manufacturing, automation, and robotics applications. Explore more products within Sensor & Actuator Cables for diverse industrial, automation, and control solutions available at EnvMart.
