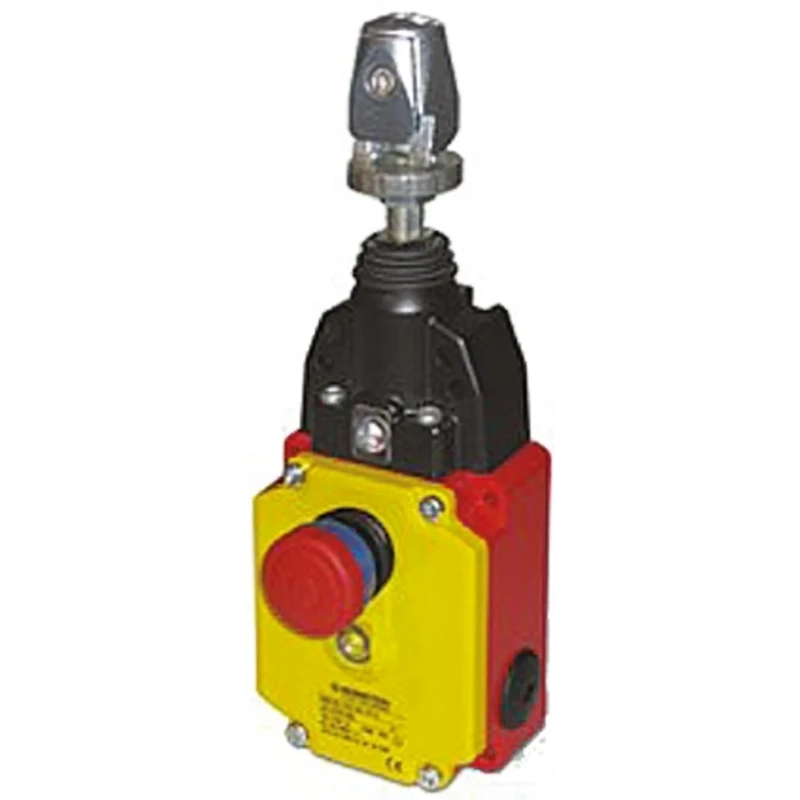

Bernstein AG SRM Rope Pull Switch 282 mm, Straight, 2 NO/2 NC, IP67, Die Cast Aluminium Housing 6012929087

Free Delivery in India | Lowest Global Shipping Charges

Bernstein AG SRM Rope Pull Switch 282 mm, Straight, 2 NO/2 NC, IP67, Die Cast Aluminium Housing 6012929087

Name: Bernstein AG SRM Rope Pull Switch 282 mm, Straight, 2 NO/2 NC, IP67, Die Cast Aluminium Housing 6012929087
Brand: Bernstein AG
SKU: 169741
Price: 242.3 USD
Availability: InStock



Category Rope Pull Switch Brand Bernstein AG Condition New

Specifications

Country of Origin	Germany
Brand	Bernstein AG
Length	282mm
Depth	88mm
IP Rating	IP67
Width	90mm
Housing Material	Die Cast Aluminium
Series	SRM
Maximum Operating Temperature	80°C
Mounting Orientation	Straight
Contact Configuration	2 NO/2 NC
Minimum Operating Temperature	-30°C
Standards/Approvals	DIN, IEC, ISO
Contact DC Voltage	250V dc
Mechanical Life	100000Operations
Contact AC Voltage	240V ac
Contact Current	10A
Conduit Entry	M20 x 1.5
Number of Cable Entries	3
Bernstein Safety SRM Rope Pull Switch, 75m, StraightBrand	Bernstein Safety

Key Features

Features IP67-rated die cast aluminium housing suitable for outdoor environments.
Operating temperature range from -30°C to 80°C ensures durability in harsh climates.
Equipped with three M20 x 1.5 cable entries for flexible installation.
Includes a reset button and provides mechanical life expectancy of 100000 operations.
Complies with DIN EN 60947-5-5 and DIN EN ISO 13850 standards for safety and quality.
Compact dimensions of 282 mm length, 90 mm width, and 88 mm depth for versatile mounting options.
Capable of handling contact AC voltage up to 240V and contact current rated at 10A.

Product Description

Bernstein AG 6012929087 SRM Rope Pull Switch is a highly reliable safety switch designed for industrial and commercial applications requiring emergency stop activation via rope pull. Featuring a robust die cast aluminium housing, it is built to withstand extreme environmental conditions, with an IP67 protection rating to prevent ingress of dust and water.

This switch supports a mounting orientation that is straight, facilitating easy installation with a hole template pattern matching most rope pull switch models. The device is suitable for operation in temperatures ranging from -30°C to 80°C, ensuring dependable performance in diverse settings.

The SRM model includes a reset button for quick reactivation after deployment and has a mechanical life expectancy of 100000 operations, underscoring its durability. It accommodates three M20 x 1.5 cable conduit entries, providing flexible wiring options and ample connection space.

With contact configuration of 2 NO (Normally Open) and 2 NC (Normally Closed), it supports contact AC voltage up to 240V and contact current of 10A, making it compatible with various electrical systems. The device conforms to DIN EN 60947-5-5 and DIN EN ISO 13850 standards, guaranteeing safety and compliance with industrial regulations.

IP67 rated die cast aluminium housing for rugged outdoor use. Wide operating temperature range from -30°C to 80°C. Three M20 x 1.5 cable entries for versatile installation configurations. Reset button included for easy system reset after activation.

Mechanical life rating of 100000 operations for long-term reliability. Compliance with recognized DIN, IEC, and ISO standards. Compact dimensions enable installation in constrained spaces.

Ideal for use in industrial automation, manufacturing plants, construction sites, and safety-critical environments where emergency stop mechanisms are required. The Bernstein AG SRM Rope Pull Switch ensures dependable system shutdown, contributing to workplace safety and operational continuity.
