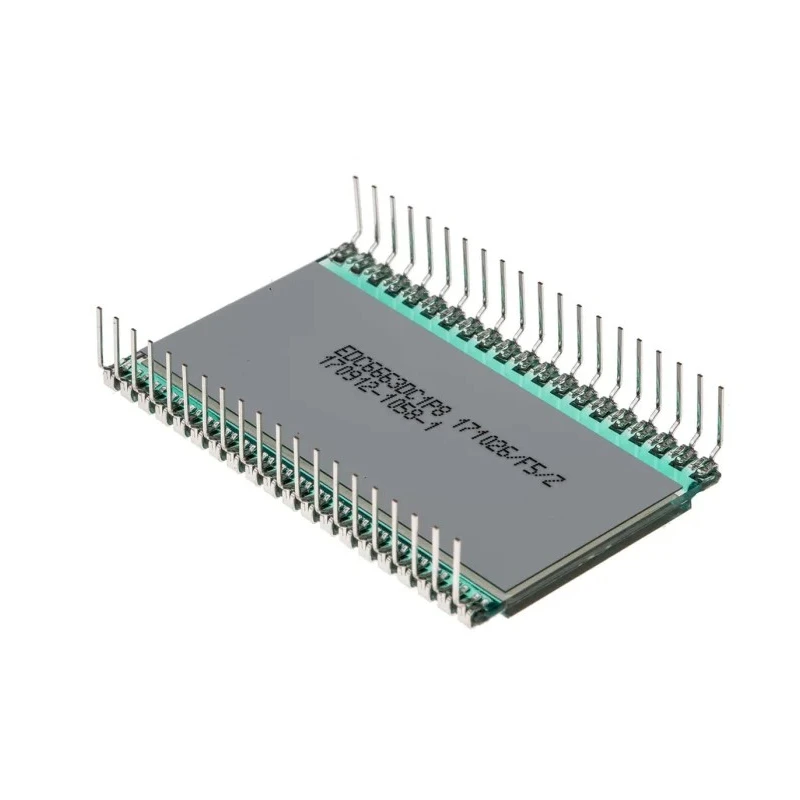

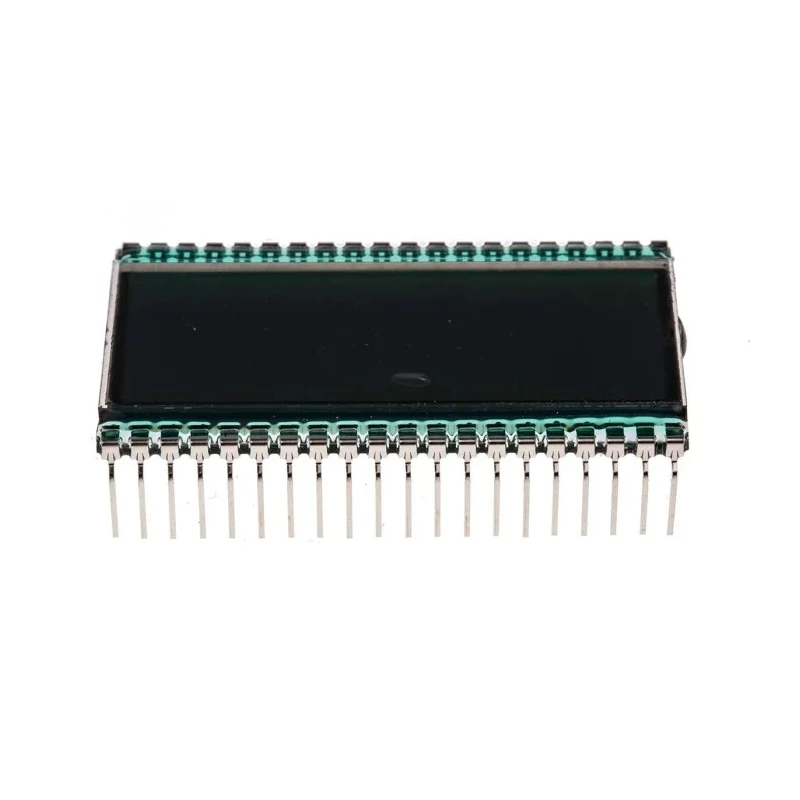

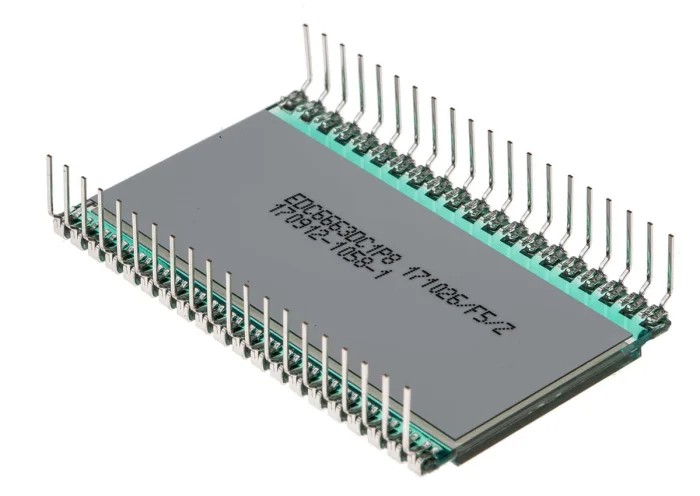

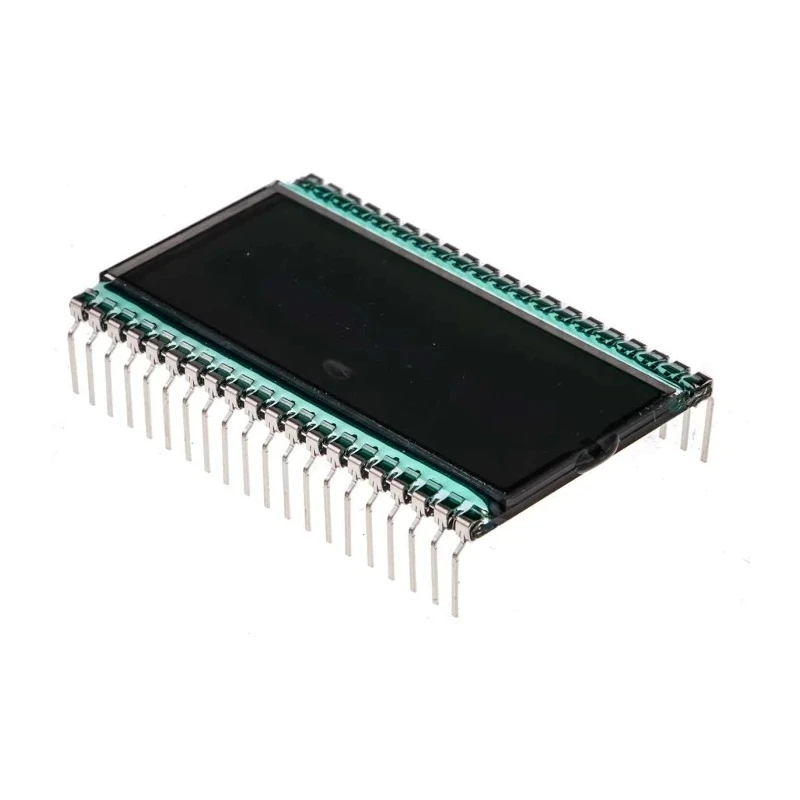

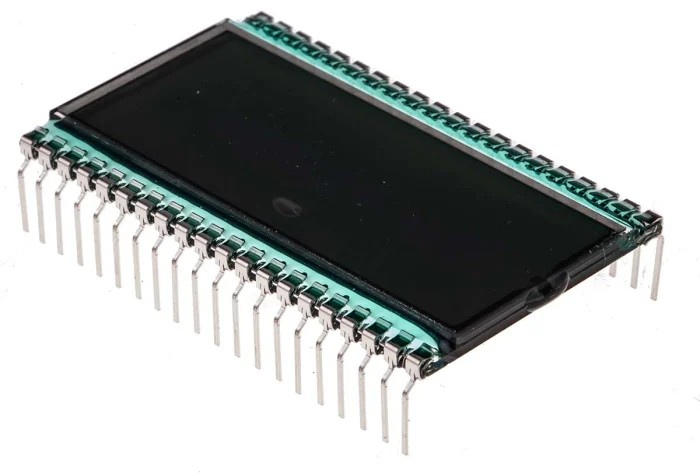

RS PRO 7 Segment LED LCD Monochrome Display Black on Grey, 1 x 3-1/2 Characters 4 Bit Interface LED Backlight 215-6436

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 7 Segment LED LCD Monochrome Display Black on Grey, 1 x 3-1/2 Characters 4 Bit Interface LED Backlight 215-6436

Name: RS PRO 7 Segment LED LCD Monochrome Display Black on Grey, 1 x 3-1/2 Characters 4 Bit Interface LED Backlight 215-6436
Brand: RS PRO
SKU: 169694
Price: 13.36 USD
Availability: InStock



Category LCD Monochrome Display Brand RS PRO Condition New

Specifications

Country of Origin	China
Display Type	7 Segment
Brand	RS PRO
Model	215-6436
Series	RS PRO
Character height	12.7mm
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-30°C
External Width	50.8mm
External Depth	2.9mm
External Height	30.5mm
Interface Type	4 Bit
Character Width	7mm
Illumination Colour	Black
Viewing Area Dimensions	47 x 18 mm
Backlight Type	LED
Character Matrix	1 x 3-1/2

Key Features

Utilizes TN display technology for clear 7-segment representation.
Character dimensions measure 12.7mm height by 7mm width for easy readability.
Viewing area spans 47 x 18 mm with wide viewing angle for versatile usage.
Reflective and transflective modes improve visibility in sunlight and low-light conditions.
Operates reliably between -30°C to +80°C temperature range.
Compact external dimensions of 50.8mm width, 30.5mm height, and 2.9mm depth.
Backlight type is LED with black illumination against a grey background.
Supplied in a dual in-line (DIL) package with rigid pins for straightforward integration.

Product Description

RS PRO 215-6436 7 Segment LED LCD Monochrome Display features a single row of 3-1/2 characters with a 7-segment configuration, ideal for electronic applications requiring clear digital readouts. The black segments illuminate on a grey background ensuring excellent contrast and readability.

Constructed using TN display matrix technology, the display employs transflective mode allowing efficient use of ambient light, while the LED backlight ensures readable output in low or no-light environments. This makes it suitable for various battery-operated equipment.

The 4-bit interface simplifies digital integration using a dual in-line (DIL) configuration with rigid pins. Its compact external size of 50.8mm width, 30.5mm height, and 2.9mm depth makes it adaptable to constrained spaces in control panels or handheld devices.

Operating temperatures range from -30°C to +80°C, supporting industrial, laboratory, and consumer electronics applications across diverse environmental conditions. The wide viewing angle enhances usability in multiple lighting scenarios.

The package includes a built-in bezel which provides structural support and an enhanced mounting option. This product is manufactured in China and meets practical standards for display modules but does not have formal certifications noted.

Utilizes TN display technology delivering crisp 7-segment characters. Transflective reflective mode supports use in direct sunlight and low light. LED backlight illuminates black digits on grey backdrop for clear night visibility.

Character size of 12.7mm x 7mm ensures legibility. Compact dimensions allow installation in various electronics. Operating temperature suitable for harsh environments. DIL package with rigid pins facilitates easy PCB mounting.

Ideal for portable battery-powered devices requiring low power consumption. Bezel included for enhanced protection and mounting convenience. Wide market applicability including industrial, automotive, and consumer electronics.
